The Gehl VT230 is a vertical-lift compact track loader rated at 2,300 lb, running a Yanmar diesel. It's the smallest of the three VT machines we carry, and the one we point to when you need track flotation but have to fit through gates and work around finished ground.
Product views

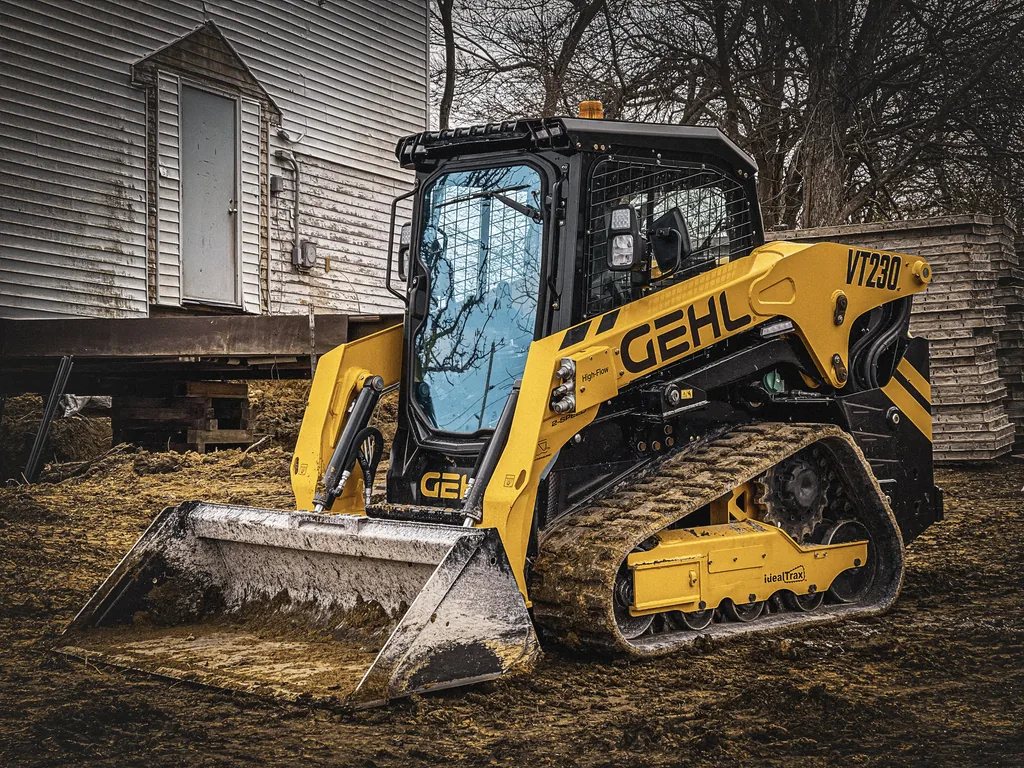

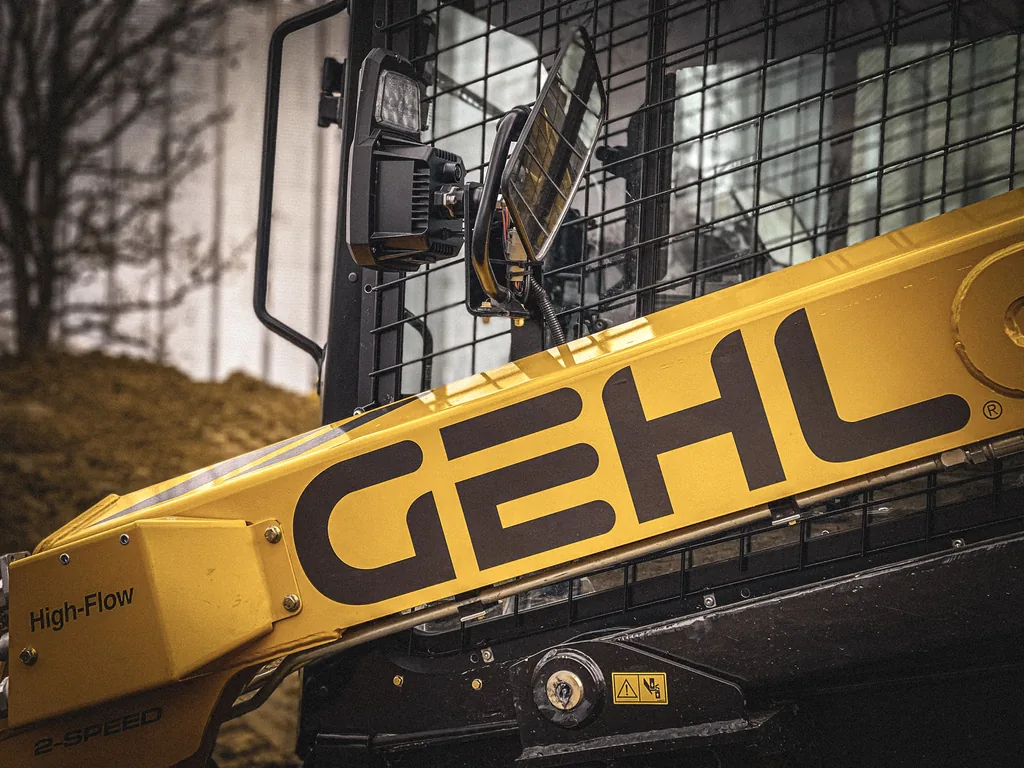

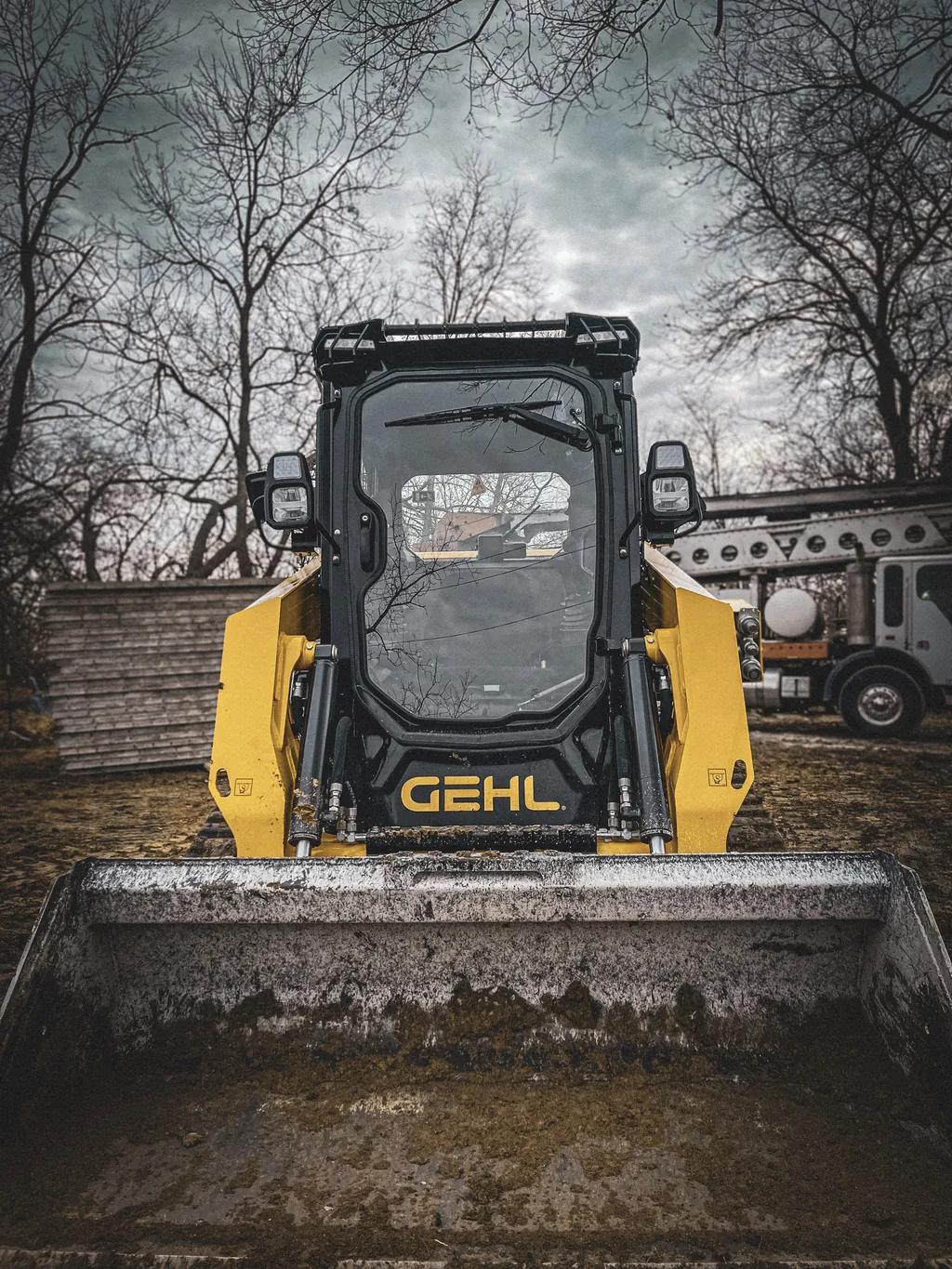

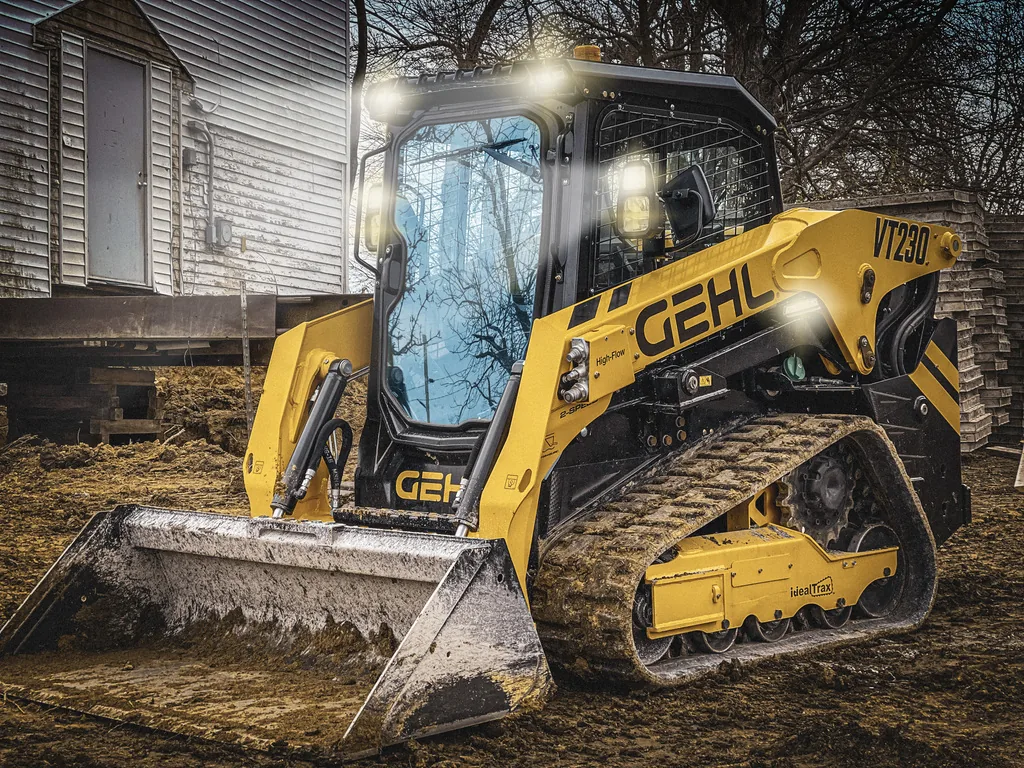

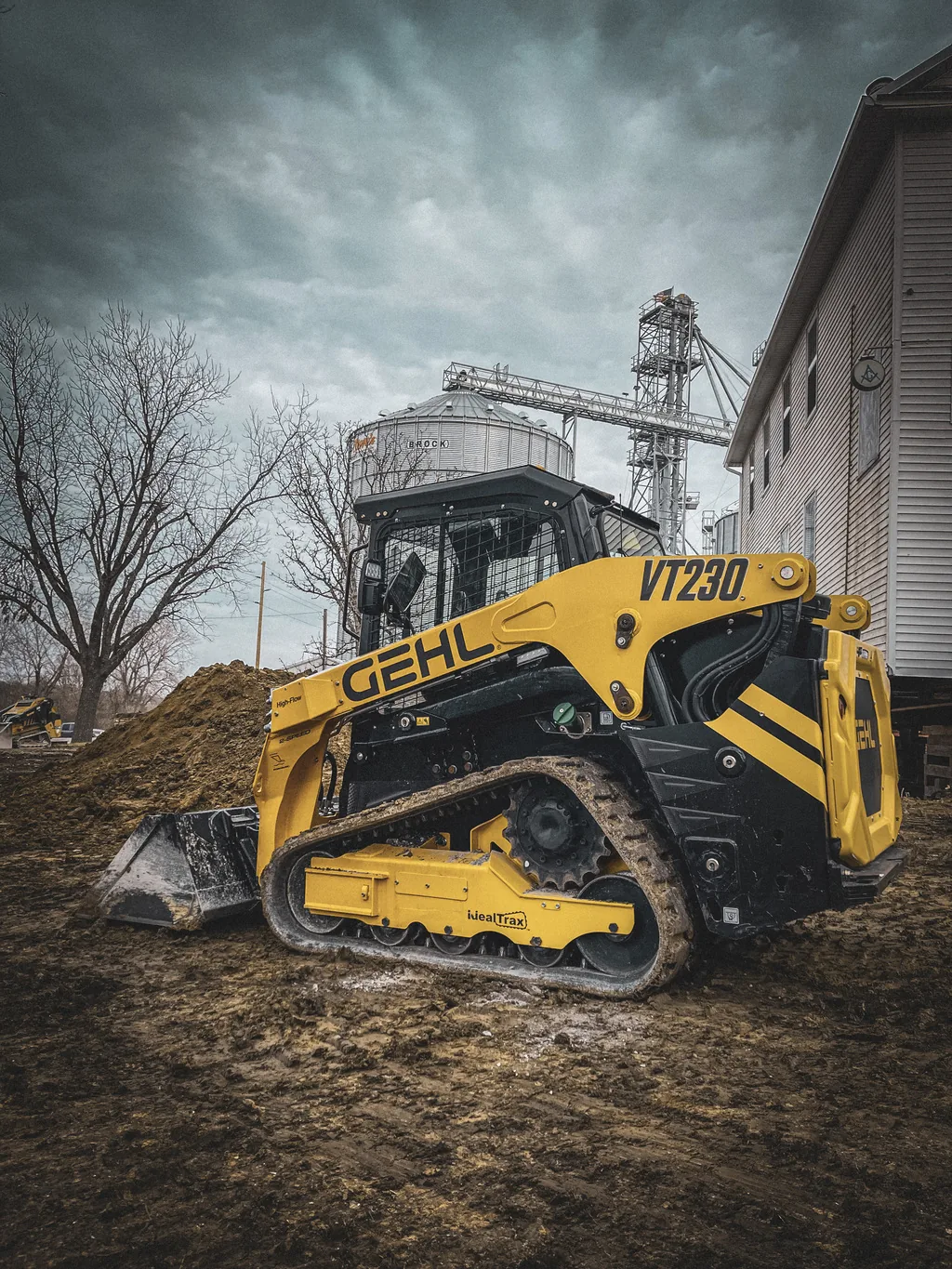

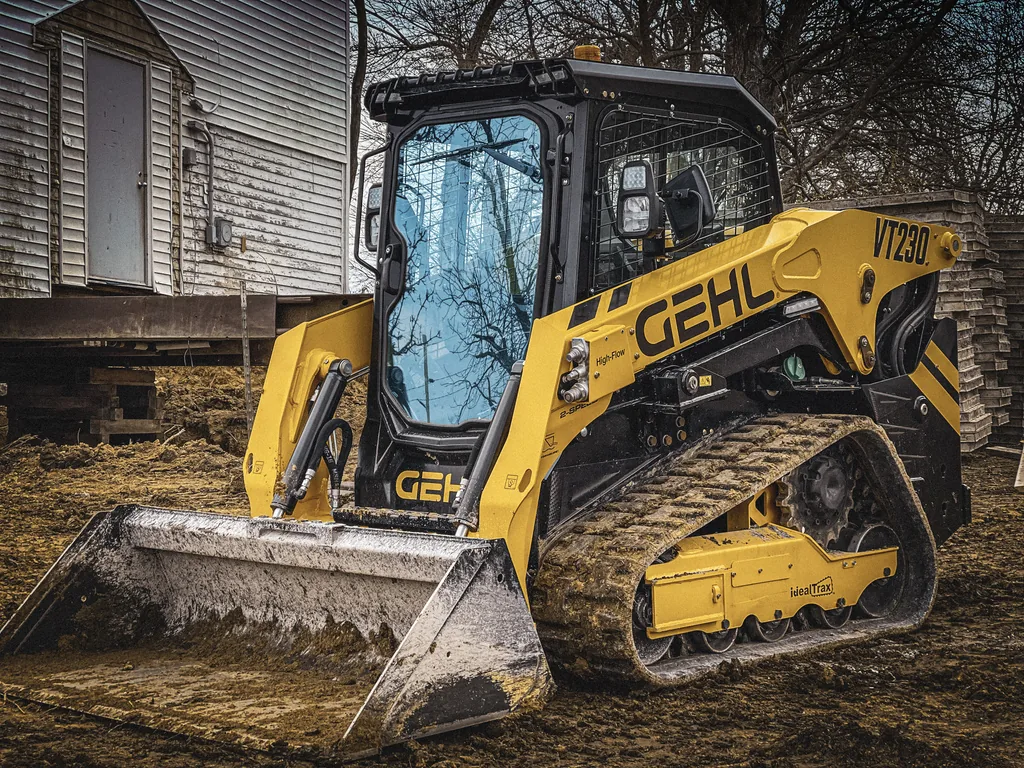

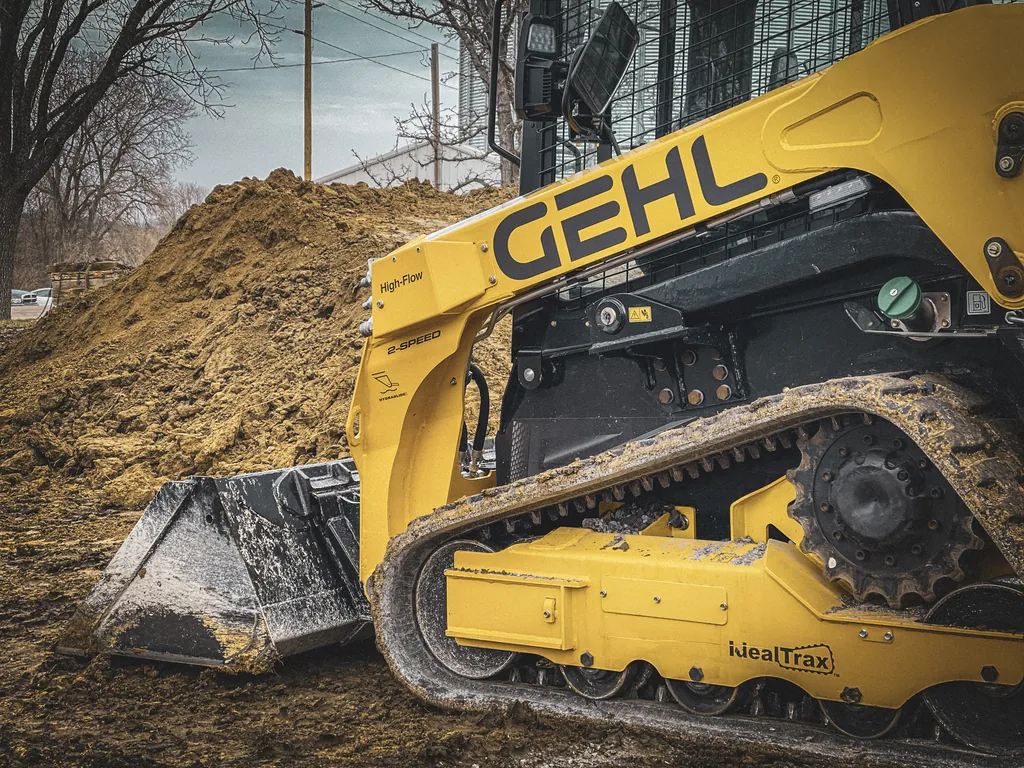

On the job
Gehl / Track Loader
VT230
2300
lb
Rated Operating Capacity
71.50
Hp
Engine Power
9191
lb
Operating Weight
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl VT230? We'll send it with your quote.
2300
lb
Rated Operating Capacity
Features
Standard Features
- 12Volt Power Port
- All-Tach® Attachment Mounting System
- Anti-Vandalism Protection
- Auxiliary Hydraulics
- Back-Up Alarm
- Battery Disconnect
- Brake Control (Auto/Manual)
- Cup Holder
- Engine Auto-Shutdown System
- Engine Block Heater
- Foot Throttle
- High-Back Adjustable Seat
- Horn
- Hydraglide™ Ride Control
- Hydraloc™ Safety System
- Hydrostatic Drive - Servo
- Lift Arm Support Device
- Operator Restraint Bar
- Pilot Joystick Controls
Optional Features
- Adaptive air suspension heated fabric seat - With electric lumbar adjustment - GRAMMER
- Cabin with Heat and Air Conditioning
- Counterweight
- Electronic Attachment Control - 14-Pin Connector
- Engine Block Heater
- High-Flow Auxiliary Hydraulics
- IdealAccess™ Fold-Up Door
- LED front road lights
- Power-A-Tach® Attachment Mounting System
- Rearview Camera
- Sliding Side Windows
Specifications
- Operating Weight: 9191 lb
- Operating Capacity at 35% Tipping Load: 2300 lb
- Operating Capacity At 50% Tipping Load: 3286 lb
- Overall Operating Height - Fully Raised: 160 in
- Height to Hinge Pin - Fully Raised: 121 in
- Dump reach - Full height: 37 in
- Dump angle at full height: 42 °
- Overall Height to top of ROPS: 81 in
- Overall length with bucket: 141 in
- Ground clearance: 8 in
- Overall width less bucket: 69 in
- Bucket Width: 70 in
- Clearance Radius - Front with Bucket: 88 in
- Brand / model: Yanmar 4TNV98CT-XNGL
- Engine power (Hp): 71.50 Hp
- Engine power (kW): 52.33 kW
- Max. torque / Engine rotation: 217 ft/lbs @ 1800 rpm
- Battery voltage: 12 V
- Alternator - Ampere: 100 A
- Standard flow - Auxiliary hydraulics: 23 US gpm
- High-Flow Auxiliary Hydraulics - Option: 30 US gpm
- Hydraulic tank capacity: 6 US gal
- Fuel tank capacity: 38 US gal
- Cooling liquid: 5 US gal
- Displacement / Number of cylinders: 0.87 US gal / 4
Comparing options?
See how the Gehl VT230 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Frequently asked questions
Go with a compact track loader when you work on soft, wet or sloped ground, on turf you don't want to tear up, or year-round in mud and snow. Tracks spread the weight for more flotation and traction.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q3 2026 program runs through September 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Warranty
Backed by the Gehl factory warranty. Coverage terms vary by model and how the machine is used - ask us for the current factory coverage when you request a quote.
Financing
Q3 financing offer: 0% financing for 48 months through September 30, 2026. Ask about 0% for 48 months, 1.99% for 60, or 2.99% for 72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Authorized for the Manitou and Gehl lineup - right here in Laddonia, MO.
Talk to a real person
Call the dealership and get someone who knows these machines, not a national call center three states away.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
