The Manitou SE 3246 is an electric slab scissor lift that gets you up to a 38 ft working height on a 772 lb platform. It runs quiet and clean on battery with non-marking tires, so it's built for indoor work like warehouses, retail build-outs, and maintenance.
Manitou / Aerial Work Platform
SE 3246
38 ft 9 in
Working Height
32 ft 2 in
Platform Height
772
lb
Platform Capacity

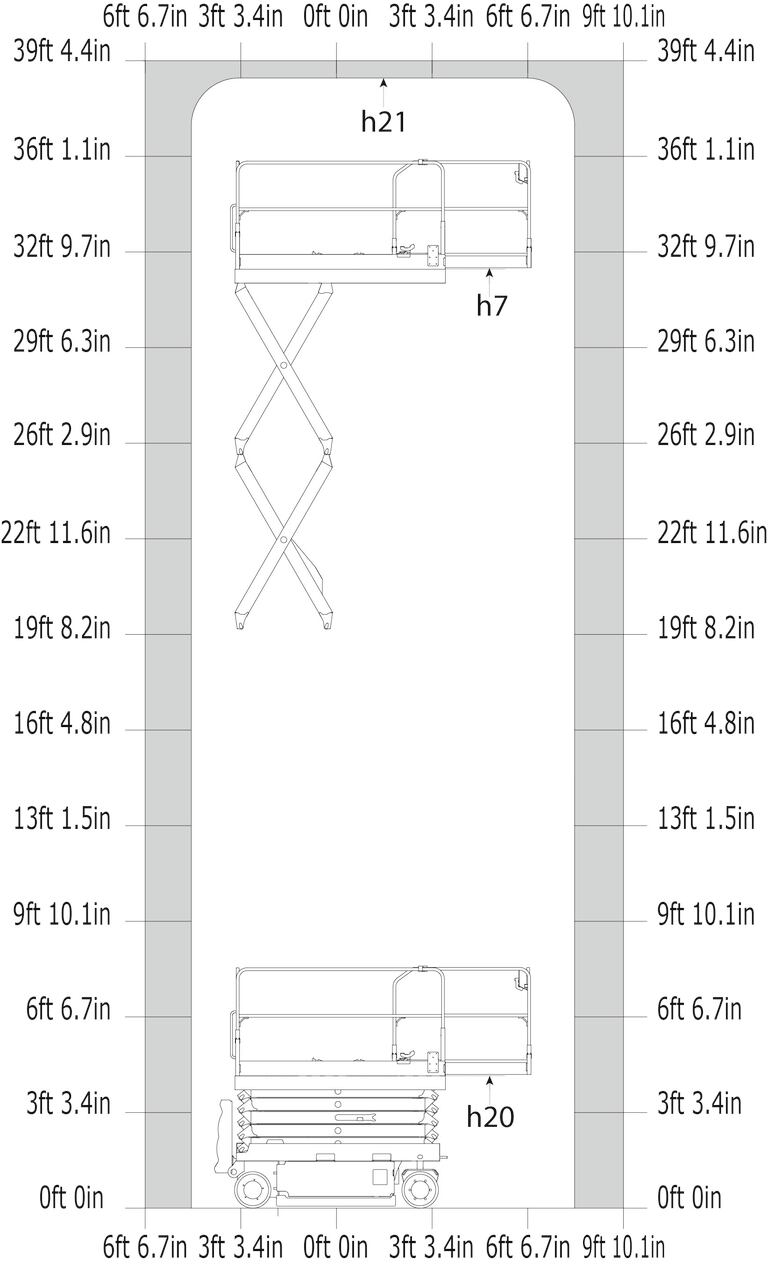

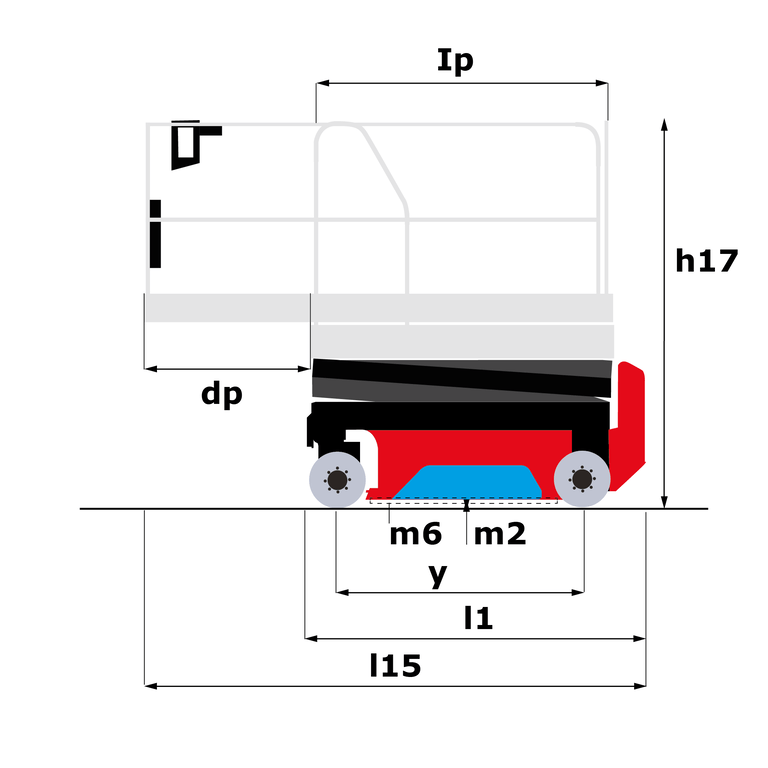

Load Chart & Dimensions
Capacity, reach, and dimensions matter on a real job. Here are the manufacturer diagrams for this machine - tap any chart to view it full size.
Specifications
- Working height: 38 ft 9 in
- Working height maximum (indoor): 38 ft 9 in
- Working height maximum (outdoor): 38 ft 9 in
- Platform height maximum (indoor): 32 ft 2 in
- Platform height maximum (outdoor): 32 ft 2 in
- Platform capacity: 772 lb
- Max. capacity on the extension deck: 254 lb
- Number of people (indoor / outdoor): 3 / 1
- Platform weight*: 6349 lb
- Platform dimensions (length x width): 7 ft 3 in x 3 ft 9 in
- Platform dimensions with extension (length x width): 10 ft 2 in x 3 ft 9 in
- Floor height (access): 4 ft 6 in
- Overall length: 8 ft
- Overall width: 3 ft 10 in
- Overall height: 8 ft 4 in
- Overall height (stowed): 6 ft 5 in
- Deck opening length: 2 ft 11 in
- Overall length with platform extension: 10 ft 11 in
- Outside turning radius - platform: 7 ft 8 in
- Internal turning radius: 0 in
- Ground clearance with pothole guards deployed: 1 in
- Ground clearance with pothole guards folded: 3 in
- Wheelbase: 5 ft 9 in
- Drive speed - stowed: 3 mph
- Drive speed - raised: 0.50 mph
- Gradeability: 25 %
- Indoor and outdoor max Tilt Rating (Fore and Aft / Side-to-Side): 3.50 ° / 1.50 °
- Tires type: Non marking cushion
- Standard tires: 15 x 5 in / 381 x 125 mm
- Drive wheels (front / rear): 2 / 0
- Steering wheels (front / rear): 2 / 0
- Braking wheels (front / rear): 2 / 0
- Service brake: Electric
- Battery technology: Lead acid
- Drive motor power rating: 2 x 0.77 kW
- Battery voltage: 48 V
- Number of batteries / Battery capacity: 4 / 120 Ah
- Battery energy: 5.76 kWh
- On-board charger (V / A): 24 V / 30 A
- Hydraulic Pressure: 3626 PSI
- Hydraulic tank capacity: 6 US gal
- Sound pressure level (platform work station) (LpA): 66.60 dB
- Vibration on hands/arms: < 0.98 ft/s²
- This machine is in compliance with:: ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
*Varies according to options and standards of the country to which the machine is delivered
