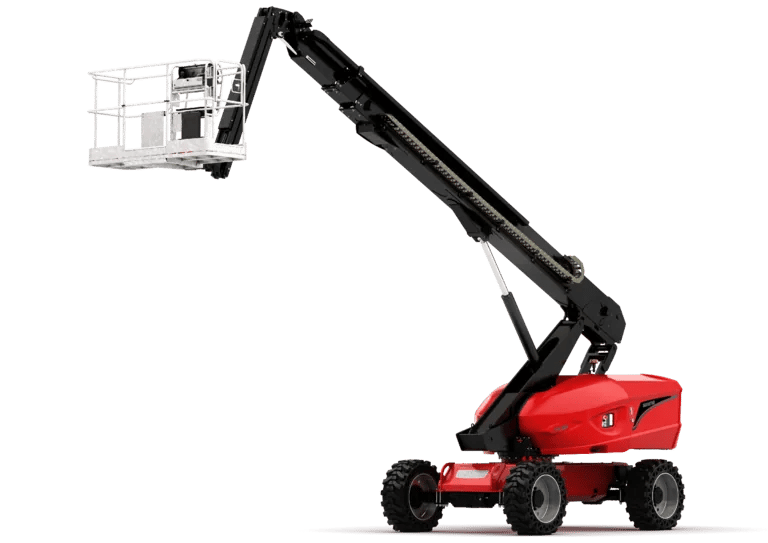

The Manitou TJ 65 is a telescopic boom lift that reaches a 71 ft working height with about 57 ft of horizontal outreach, powered by a Kubota diesel. When you need to get up and over obstacles on a job site, this is the straight-boom reach we'd recommend.

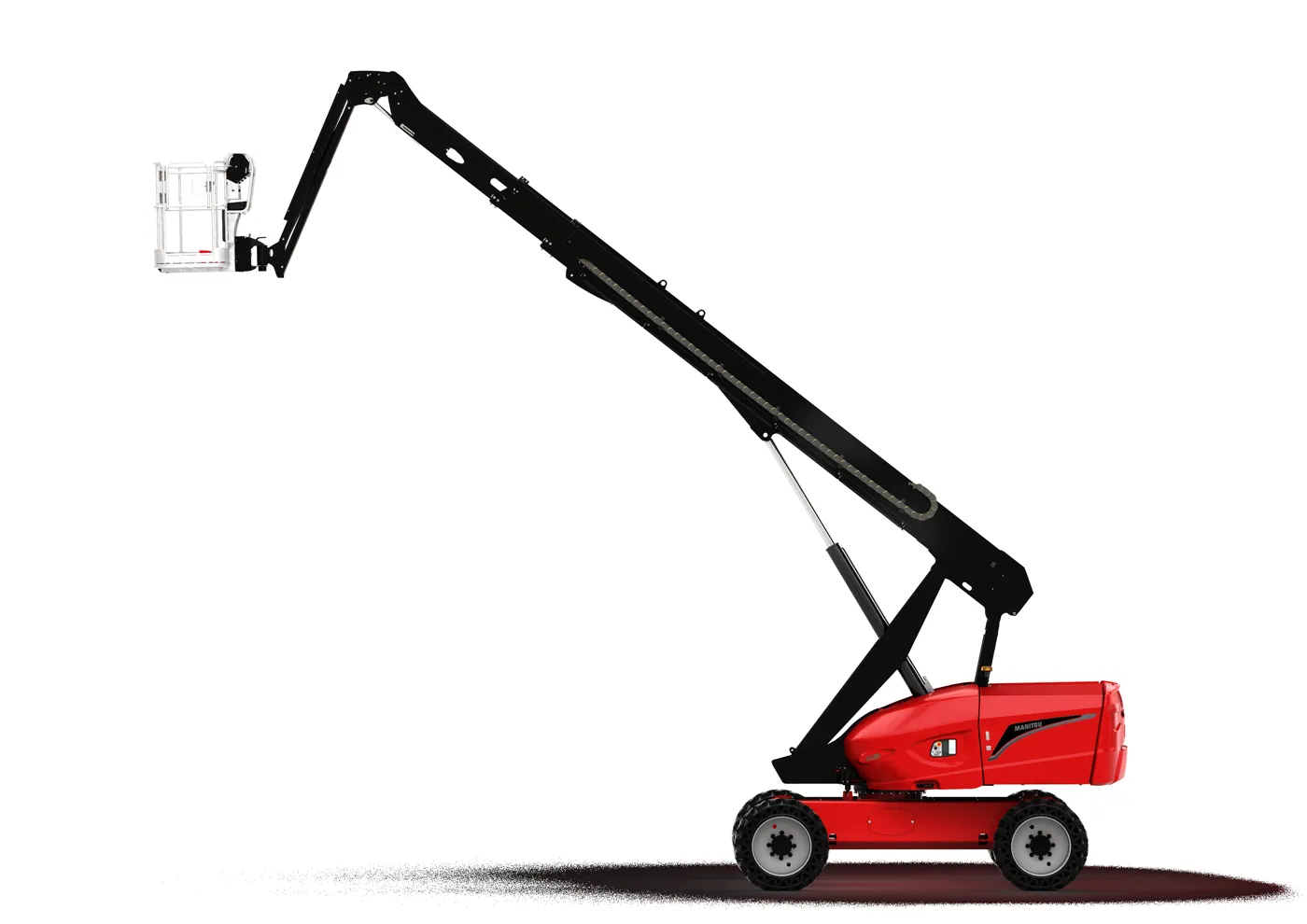

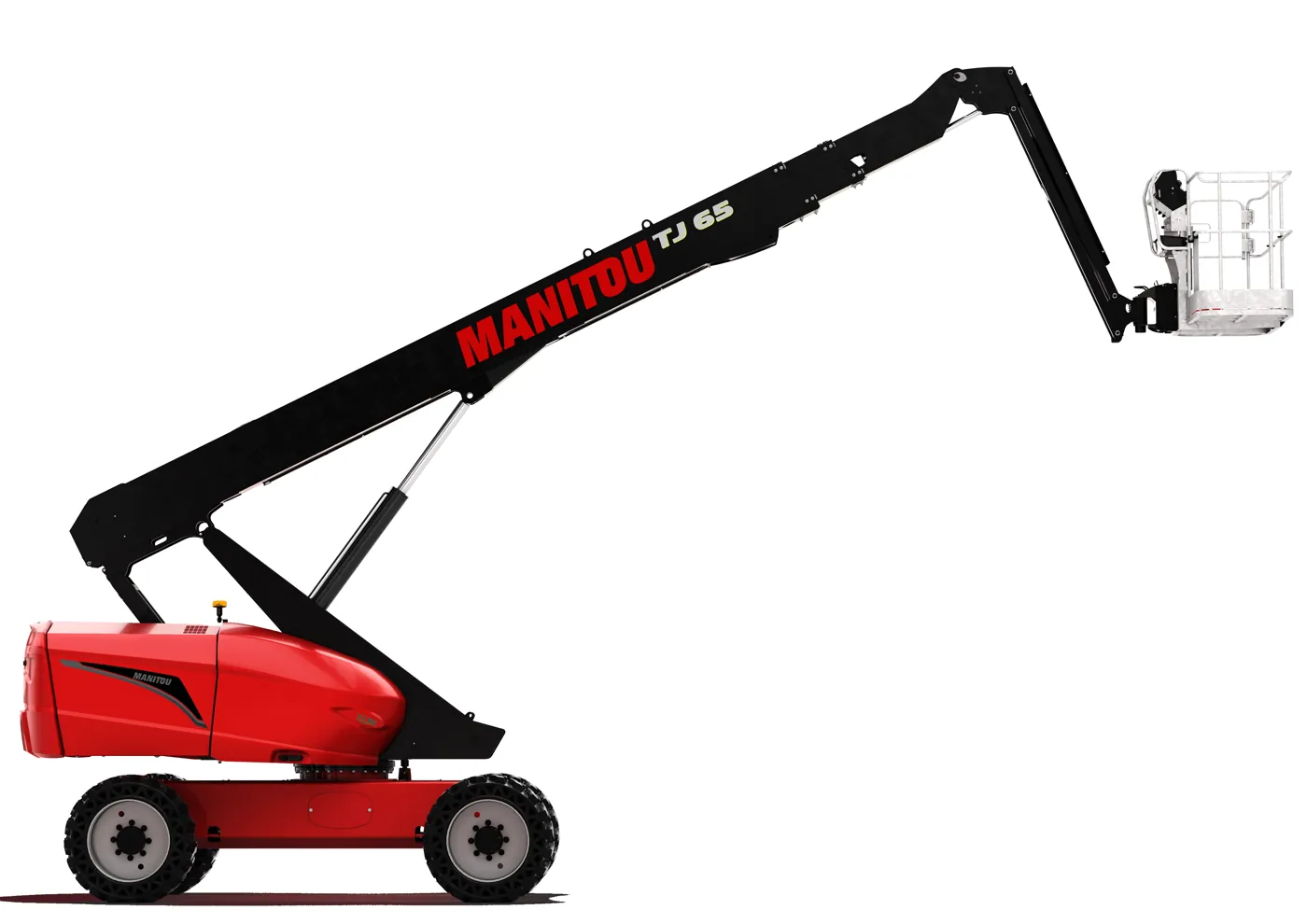

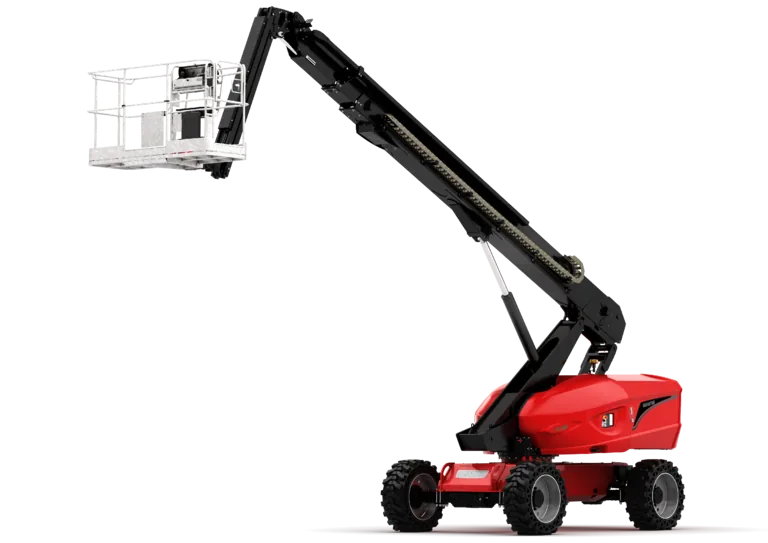

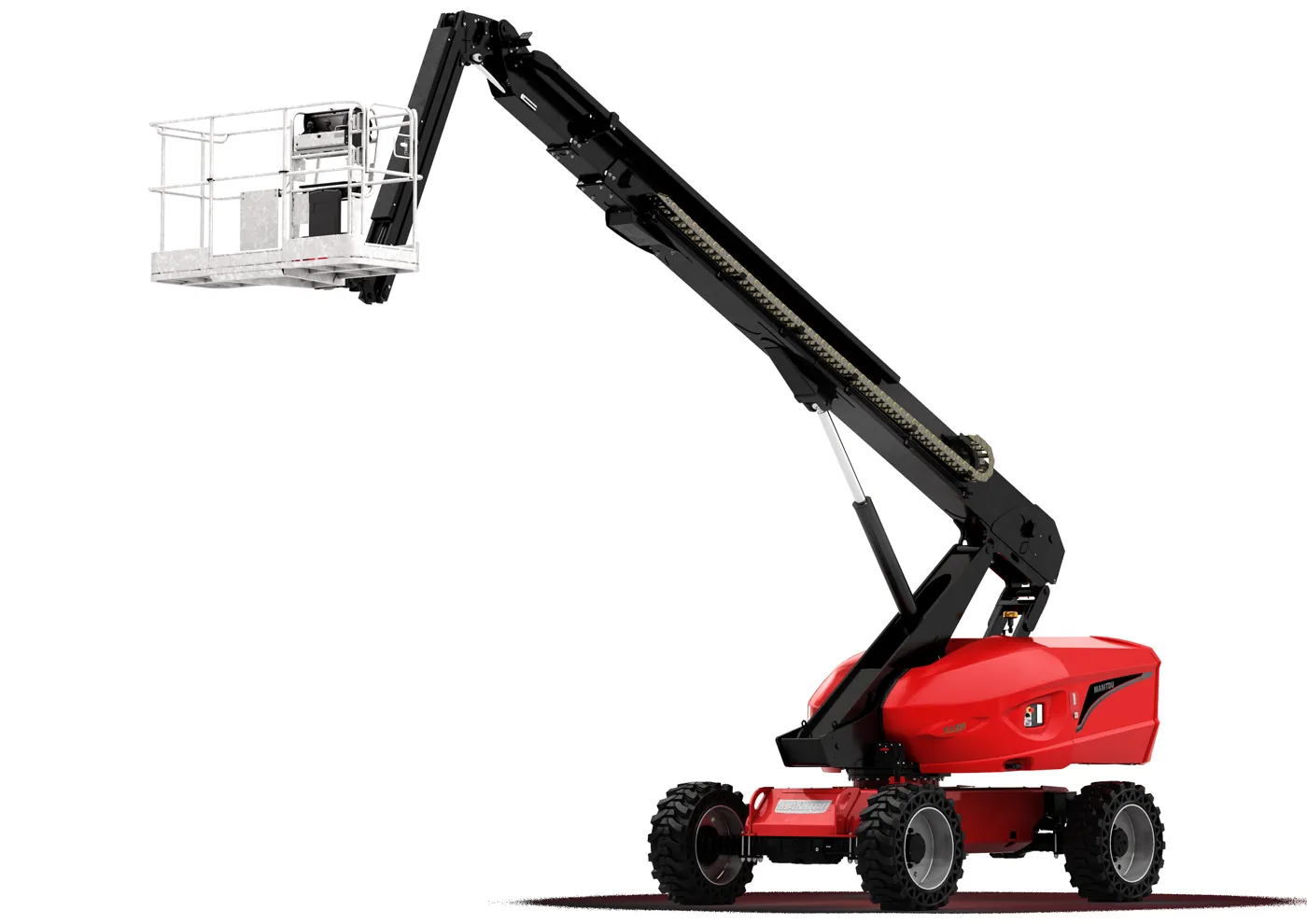

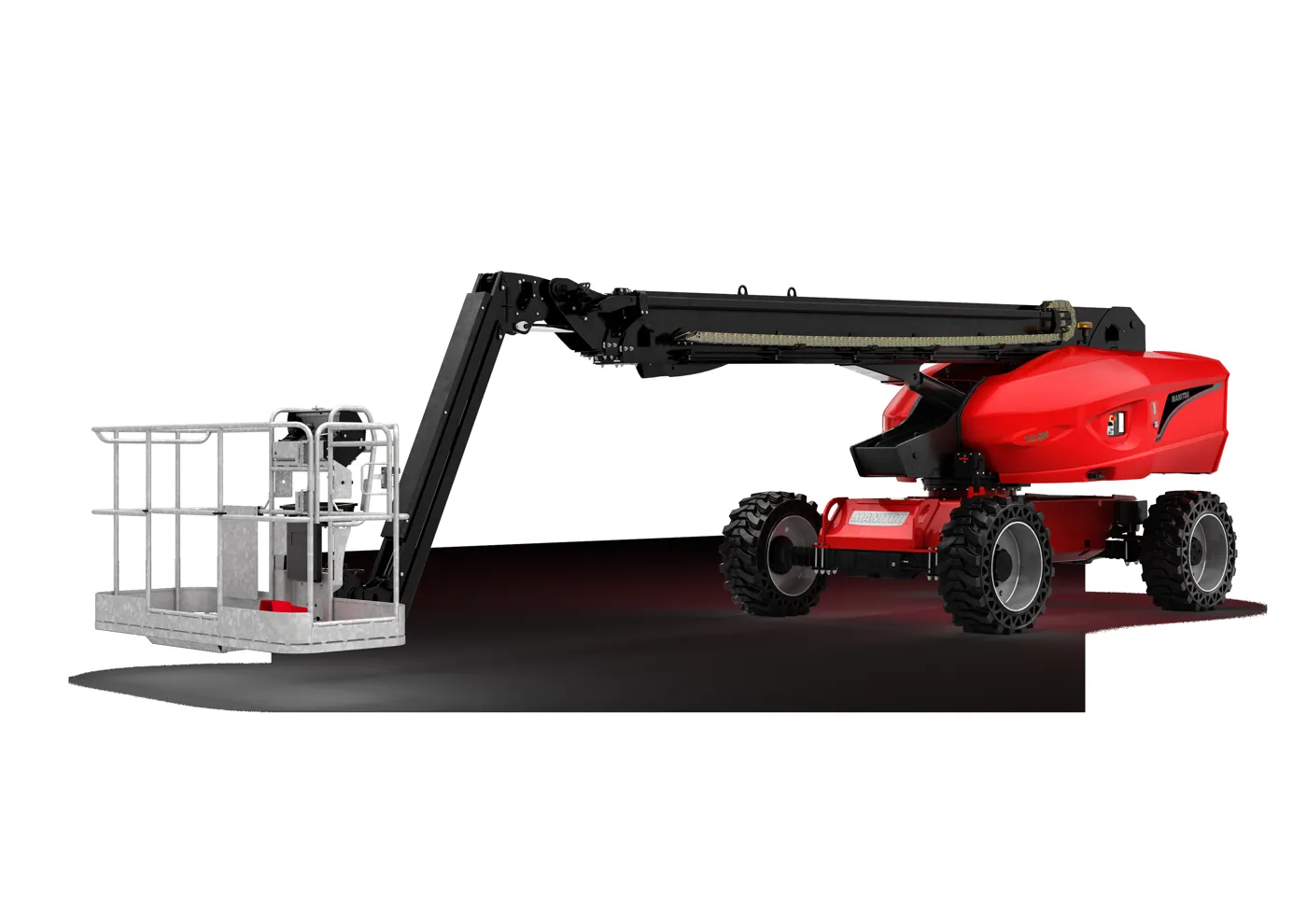

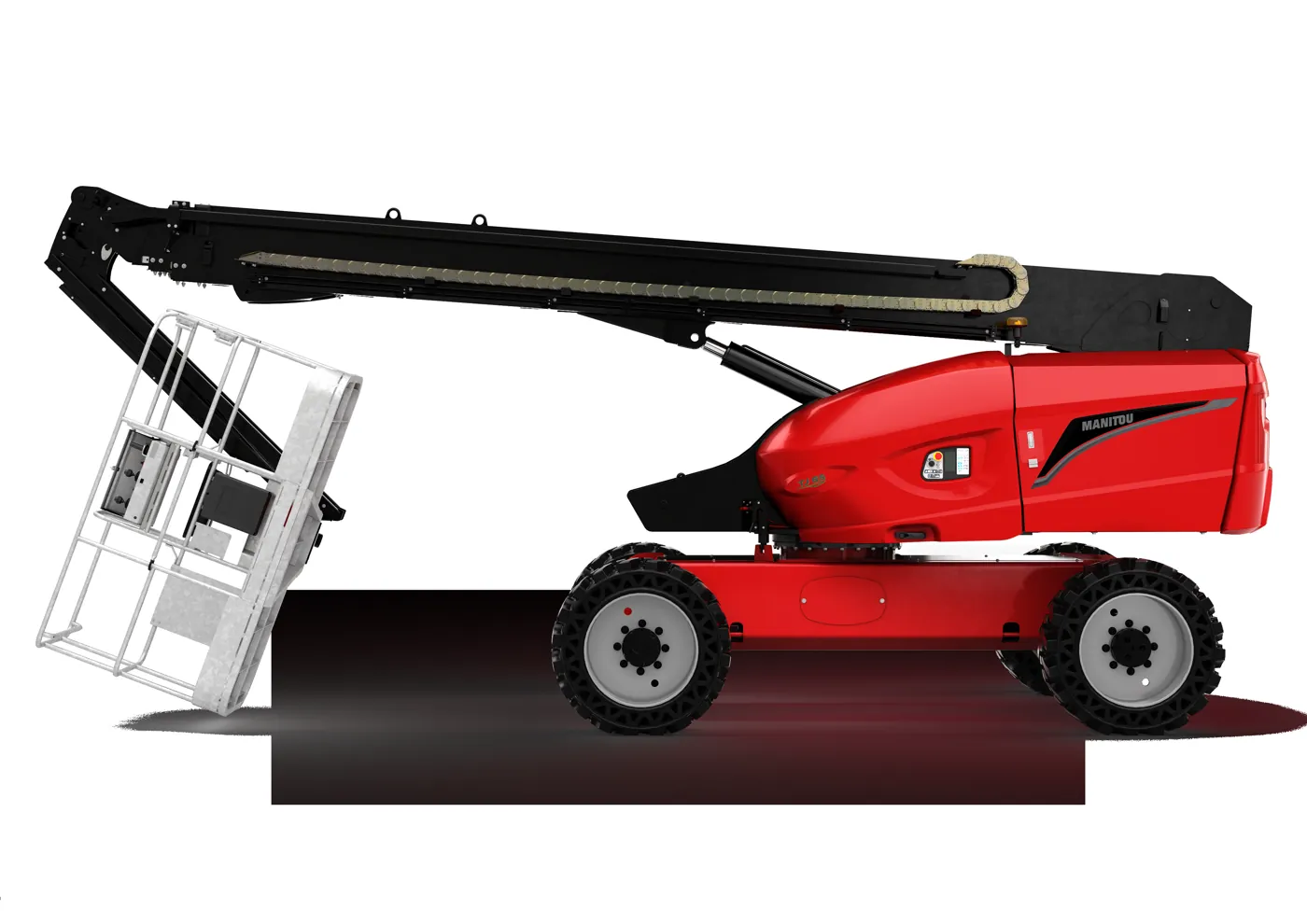

Product views
Manitou / Aerial Work Platform
TJ 65
71 ft 5 in
Working Height
64 ft 10 in
Platform Height
57 ft 10 in
Max Outreach
507
lb
Platform Capacity
49.60 Hp
37 kW
Engine Power

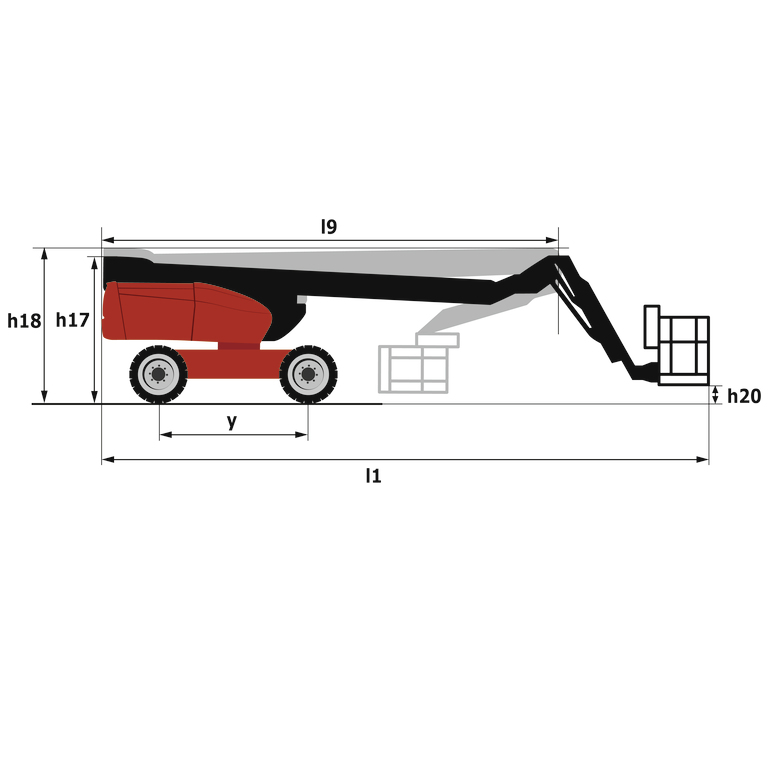

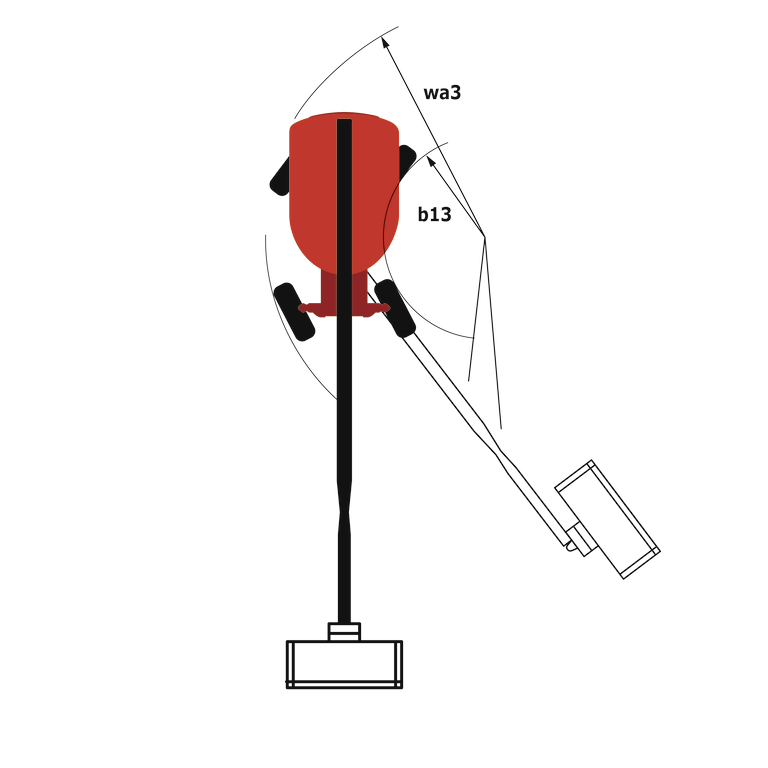

Load Chart & Dimensions
Capacity, reach, and dimensions matter on a real job. Here are the manufacturer diagrams for this machine - tap any chart to view it full size.
Specifications
- Working height: 71 ft 5 in
- Platform height: 64 ft 10 in
- Maximum outreach: 57 ft 10 in
- Pendular arm rotation (top / bottom): +69 ° / -66 °
- Platform capacity: 507 lb
- Turret rotation: 360 °
- Platform rotation (right / left): 90 ° / 90 °
- Number of people (indoor): 2
- Platform weight*: 26125 lb
- Platform dimensions (length x width): 6 ft 11 in x 2 ft 7 in
- Floor height (access): 1 ft 3 in
- Overall length: 32 ft 2 in
- Overall width: 8 ft 2 in
- Overall height: 8 ft 9 in
- Overall length (stowed): 23 ft 11 in
- Overall height (stowed): 8 ft 11 in
- Jib length: 6 ft 7 in
- Counterweight offset (turret at 90°): 4 ft 5 in
- Counterweight Oversize / Reach: 4 ft 5 in
- External turning radius: 20 ft 4 in
- Ground clearance at centre of wheelbase: 1 ft 5 in
- Wheelbase: 9 ft 2 in
- Drive speed - stowed: 3 mph
- Drive speed - raised: 0.62 mph
- Gradeability: 40 %
- Tires type: Solid tires
- Standard tires: 40 x 14 in / 1025 x 365 mm
- Drive wheels (front / rear): 2 / 2
- Steering wheels (front / rear): 2 / 0
- Braking wheels (front / rear): 0 / 2
- Engine brand / model: Kubota - D1803-CR-TIE4B
- Engine norm: Tier 4
- Engine power (Hp / kW): 49.60 Hp / 37 kW
- Ground Pressure: 264 PSI
- Hydraulic Pressure: 4931 PSI
- Hydraulic tank capacity: 25 US gal
- Fuel: 19 US gal
- Vibration on hands/arms: < 2 ft/s²
- This machine is in compliance with:: ANSI A92.20-2018 CSA B354.6 ICES-002-Issue 6 Standard Canadian EMC
*Varies according to options and standards of the country to which the machine is delivered
