One bucket that does four jobs - load, dig, doze, and grab. The clamshell opens up to grab poles and tubes, and the rear blade levels as you back drag.
Manitou & Gehl Attachments / Buckets

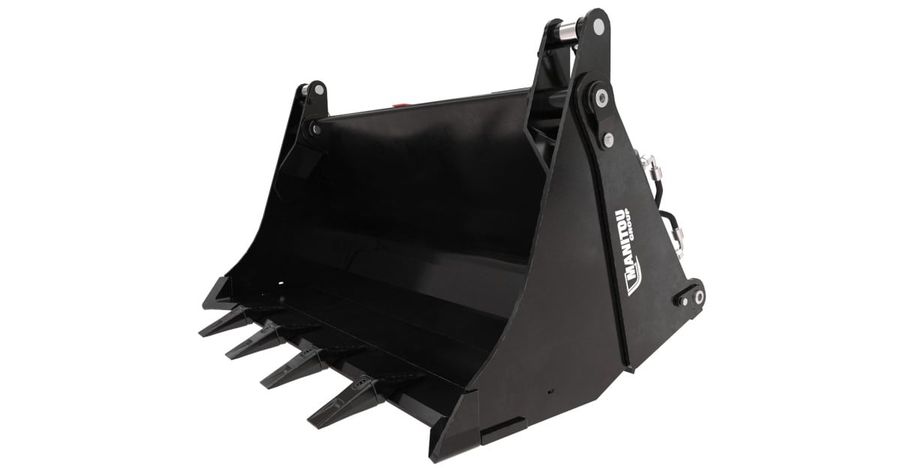

4-in-1 Bucket
5 configurations available
1554 - 4162
Capacity (lb)
89 - 237
Heaped capacity (US gal)
69 - 178
Struck capacity (US gal)
5' - 8'
Width (in)
Specifications
- Distance to center of gravity (in): B4x1 340 / 1500: 1'CB4x1 400L / 1500: 1' 5"CB4x1 700L / 1950: 1' 2"CB4x1 850L / 2300: 1' 3"CB4x1 900L / 2450: 1' 3"
- Capacity (lb): B4x1 340 / 1500: 1554CB4x1 400L / 1500: 1861CB4x1 700L / 1950: 3241CB4x1 850L / 2300: 3931CB4x1 900L / 2450: 4162
- Heaped capacity (US gal): B4x1 340 / 1500: 89CB4x1 400L / 1500: 106CB4x1 700L / 1950: 185CB4x1 850L / 2300: 224CB4x1 900L / 2450: 237
- Struck capacity (US gal): B4x1 340 / 1500: 69CB4x1 400L / 1500: 83CB4x1 700L / 1950: 138CB4x1 850L / 2300: 166CB4x1 900L / 2450: 178
- Overall weight (lb): B4x1 340 / 1500: 752CB4x1 400L / 1500: 1179CB4x1 700L / 1950: 1340CB4x1 850L / 2300: 1504CB4x1 900L / 2450: 1574
- Overall height (in): B4x1 340 / 1500: 2' 10"CB4x1 400L / 1500: 2' 11"CB4x1 700L / 1950: 2' 11"CB4x1 850L / 2300: 2' 11"CB4x1 900L / 2450: 2' 11"
- Overall length (in): B4x1 340 / 1500: 3' 2"CB4x1 400L / 1500: 3' 8"CB4x1 700L / 1950: 3' 8"CB4x1 850L / 2300: 3' 8"CB4x1 900L / 2450: 3' 8"
- Width (in): B4x1 340 / 1500: 5'CB4x1 400L / 1500: 5'CB4x1 700L / 1950: 6' 5"CB4x1 850L / 2300: 7' 7"CB4x1 900L / 2450: 8'
- Teeth: B4x1 340 / 1500: 4CB4x1 400L / 1500: 4CB4x1 700L / 1950: 5CB4x1 850L / 2300: 6CB4x1 900L / 2450: 7
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Forks and some options sold separately. Verify fit with your dealer before purchase.
