Our go-to dirt-moving bucket, with interchangeable teeth so you can dig and load without chewing up the edge. Sizes run from 18 to 53 cubic feet, so there's one that matches your machine.
Manitou & Gehl Attachments / Buckets

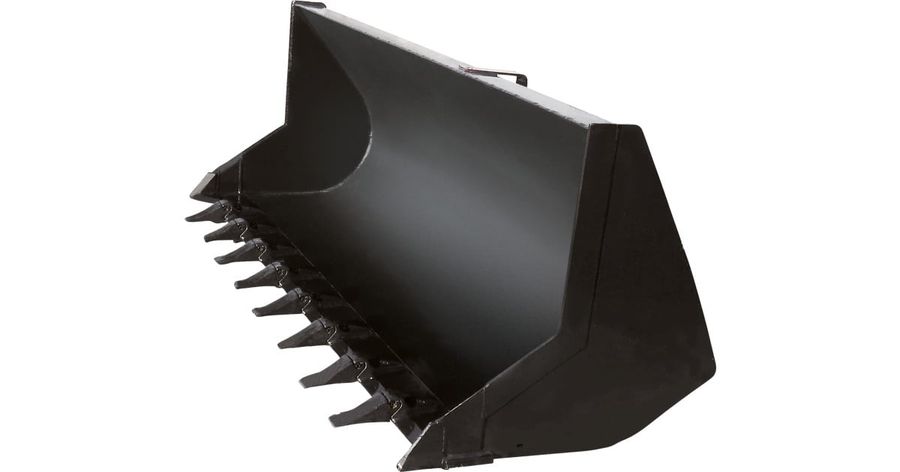

Construction Bucket
8 configurations available
2403 - 6945
Capacity (lb)
137 - 396
Heaped capacity (US gal)
115 - 306
Struck capacity (US gal)
4' 11" - 8'
Width (in)
Specifications
- Distance to center of gravity (in): CBC 500L / 1500: 1' 2"CBC 650L / 1850: 1' 2"CBC 700L / 1950: 1' 2"CBC 750L / 2100: 1' 2"CBC 800L / 2250: 1' 2"CBC 900L / 2450: 1' 2"CBC 1000L / 2500: 1' 3"CBC 1500L / 2500: 1' 3"
- Capacity (lb): CBC 500L / 1500: 2403CBC 650L / 1850: 3128CBC 700L / 1950: 3221CBC 750L / 2100: 3556CBC 800L / 2250: 3768CBC 900L / 2450: 4134CBC 1000L / 2500: 4630CBC 1500L / 2500: 6945
- Heaped capacity (US gal): CBC 500L / 1500: 137CBC 650L / 1850: 179CBC 700L / 1950: 184CBC 750L / 2100: 203CBC 800L / 2250: 215CBC 900L / 2450: 236CBC 1000L / 2500: 264CBC 1500L / 2500: 396
- Struck capacity (US gal): CBC 500L / 1500: 115CBC 650L / 1850: 143CBC 700L / 1950: 152CBC 750L / 2100: 163CBC 800L / 2250: 176CBC 900L / 2450: 192CBC 1000L / 2500: 201CBC 1500L / 2500: 306
- Overall weight (lb): CBC 500L / 1500: 617CBC 650L / 1850: 705CBC 700L / 1950: 728CBC 750L / 2100: 761CBC 800L / 2250: 807CBC 900L / 2450: 862CBC 1000L / 2500: 1528CBC 1500L / 2500: 1475
- Overall height (in): CBC 500L / 1500: 2' 8"CBC 650L / 1850: 2' 8"CBC 700L / 1950: 2' 8"CBC 750L / 2100: 2' 8"CBC 800L / 2250: 2' 8"CBC 900L / 2450: 2' 8"CBC 1000L / 2500: 2' 8"CBC 1500L / 2500: 3' 2"
- Overall length (in): CBC 500L / 1500: 3' 5"CBC 650L / 1850: 3' 5"CBC 700L / 1950: 3' 5"CBC 750L / 2100: 3' 5"CBC 800L / 2250: 3' 4"CBC 900L / 2450: 3' 4"CBC 1000L / 2500: 3' 3"CBC 1500L / 2500: 3' 11"
- Width (in): CBC 500L / 1500: 4' 11"CBC 650L / 1850: 6' 1"CBC 700L / 1950: 6' 5"CBC 750L / 2100: 6' 11"CBC 800L / 2250: 7' 5"CBC 900L / 2450: 8'CBC 1000L / 2500: 8' 2"CBC 1500L / 2500: 8' 2"
- Teeth: CBC 500L / 1500: 4CBC 650L / 1850: 6CBC 700L / 1950: 6CBC 750L / 2100: 6CBC 800L / 2250: 6CBC 900L / 2450: 8CBC 1000L / 2500: 8CBC 1500L / 2500: 8
- Minimum forks spread (in): CBC 500L / 1500: 11"CBC 650L / 1850: 10"CBC 700L / 1950: 11"CBC 750L / 2100: 1'CBC 800L / 2250: 1'CBC 900L / 2450: 10"CBC 1000L / 2500: 10"CBC 1500L / 2500: 10"
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Forks and some options sold separately. Verify fit with your dealer before purchase.
