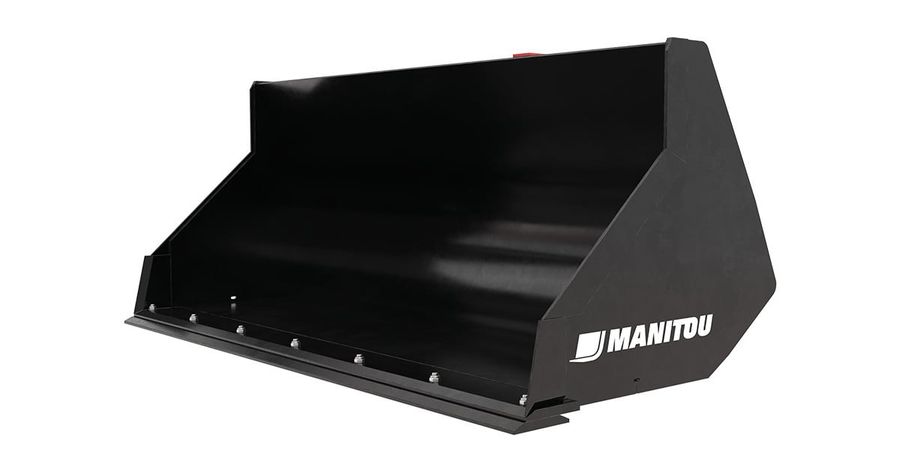

A heavy-duty general purpose bucket (Manitou catalogs it as the recovery bucket) for scooping and carrying dirt, gravel, and general jobsite material. It's got a reinforced base, blade, and sides, and you can add a bolt-on wear plate if you're working it hard.
Manitou & Gehl Attachments / Buckets
General Purpose Bucket
7 configurations available
2698 - 4630
Capacity (lb)
154 - 264
Heaped capacity (US gal)
129 - 217
Struck capacity (US gal)
4' 11" - 8'
Width (in)
Specifications
- Capacity (lb): CBR 600 / 1500: 2698CBR 730 / 1850: 3402CBR 780 / 1950: 3602CBR 850 / 2100: 3902CBR 900 / 2250: 4184CBR 1000 / 2450: 4583CBR 1000 / 2500: 4630
- Heaped capacity (US gal): CBR 600 / 1500: 154CBR 730 / 1850: 194CBR 780 / 1950: 206CBR 850 / 2100: 223CBR 900 / 2250: 239CBR 1000 / 2450: 262CBR 1000 / 2500: 264
- Struck capacity (US gal): CBR 600 / 1500: 129CBR 730 / 1850: 158CBR 780 / 1950: 175CBR 850 / 2100: 181CBR 900 / 2250: 194CBR 1000 / 2450: 212CBR 1000 / 2500: 217
- Overall weight (lb): CBR 600 / 1500: 604CBR 730 / 1850: 701CBR 780 / 1950: 723CBR 850 / 2100: 789CBR 900 / 2250: 794CBR 1000 / 2450: 840CBR 1000 / 2500: 1464
- Overall height (in): CBR 600 / 1500: 2' 7"CBR 730 / 1850: 2' 7"CBR 780 / 1950: 2' 7"CBR 850 / 2100: 2' 7"CBR 900 / 2250: 2' 7"CBR 1000 / 2450: 2' 7"CBR 1000 / 2500: 2' 8"
- Overall length (in): CBR 600 / 1500: 2' 9"CBR 730 / 1850: 2' 8"CBR 780 / 1950: 2' 8"CBR 850 / 2100: 2' 9"CBR 900 / 2250: 2' 8"CBR 1000 / 2450: 2' 8"CBR 1000 / 2500: 3' 2"
- Width (in): CBR 600 / 1500: 4' 11"CBR 730 / 1850: 6' 1"CBR 780 / 1950: 6' 5"CBR 850 / 2100: 6' 11"CBR 900 / 2250: 7' 5"CBR 1000 / 2450: 8'CBR 1000 / 2500: 8' 2"
- Bolted wearplate (LDR): CBR 600 / 1500: Not StandardCBR 730 / 1850: Not StandardCBR 780 / 1950: Not StandardCBR 850 / 2100: Not StandardCBR 900 / 2250: Not StandardCBR 1000 / 2450: Not StandardCBR 1000 / 2500: Standard
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Forks and some options sold separately. Verify fit with your dealer before purchase.
