A planetary drive auger for boring post holes and footings, with a bidirectional hydraulic motor and a fully enclosed housing. Swap drill bits to match earth, mixed soil, or rock.
Manitou & Gehl Attachments / Augers & Misc

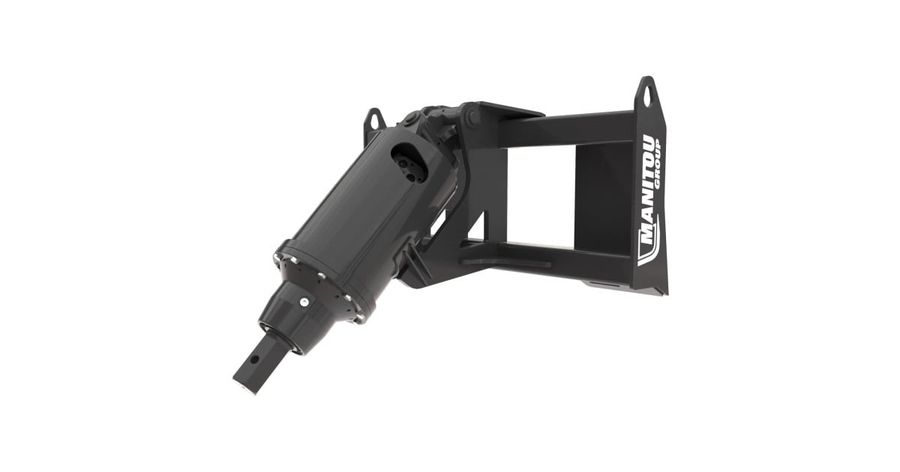

Planetary Auger
2 configurations available
368 - 428
Overall weight (lb)
Specifications
- Overall weight (lb): APD 800/HX QA (a): 428APD 800/HX QA (b): 368
- Shaft diameter (in): APD 800/HX QA (a): 2"APD 800/HX QA (b): 3"
- Overall length (in): APD 800/HX QA (a): 3' 4"APD 800/HX QA (b): 3' 7"
- Head type: APD 800/HX QA (a): HexAPD 800/HX QA (b): Hex
- Theoretic torque (Nm): APD 800/HX QA (a): 450APD 800/HX QA (b): 710
- Minimum hydraulic requirements (l/min): APD 800/HX QA (a): 60APD 800/HX QA (b): 80
- Maximum hydraulic requirements (l/min): APD 800/HX QA (a): 100APD 800/HX QA (b): 120
- Rotation speed (rpm): APD 800/HX QA (a): 60APD 800/HX QA (b): 50
- Maximum bit diameter (in): APD 800/HX QA (a): 2' 7"APD 800/HX QA (b): 2' 7"
- E-RECO: APD 800/HX QA (a): NoAPD 800/HX QA (b): No
- Connection system: APD 800/HX QA (a): Universal Quick-attachAPD 800/HX QA (b): Universal Quick-attach
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Forks and some options sold separately. Verify fit with your dealer before purchase.
