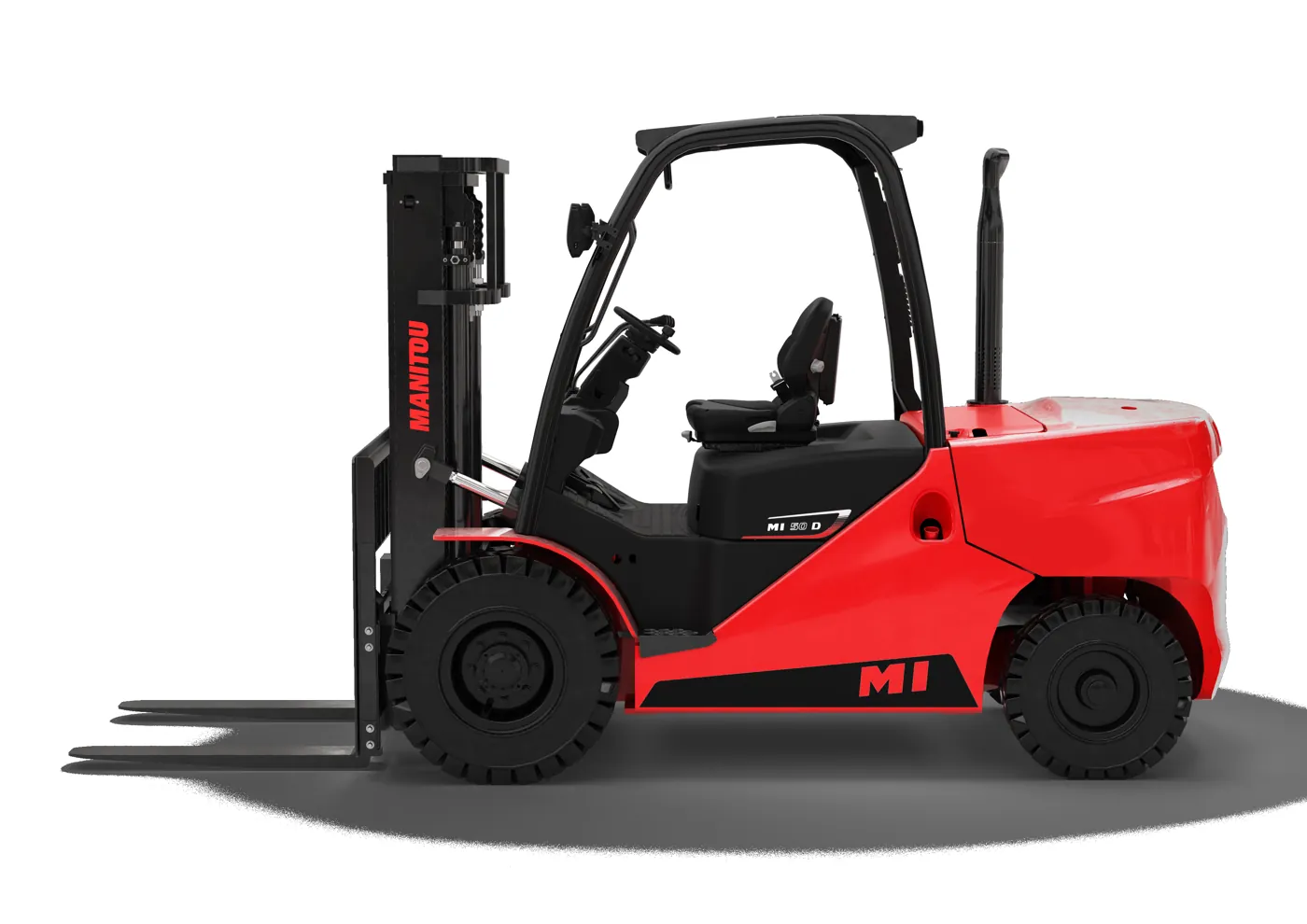

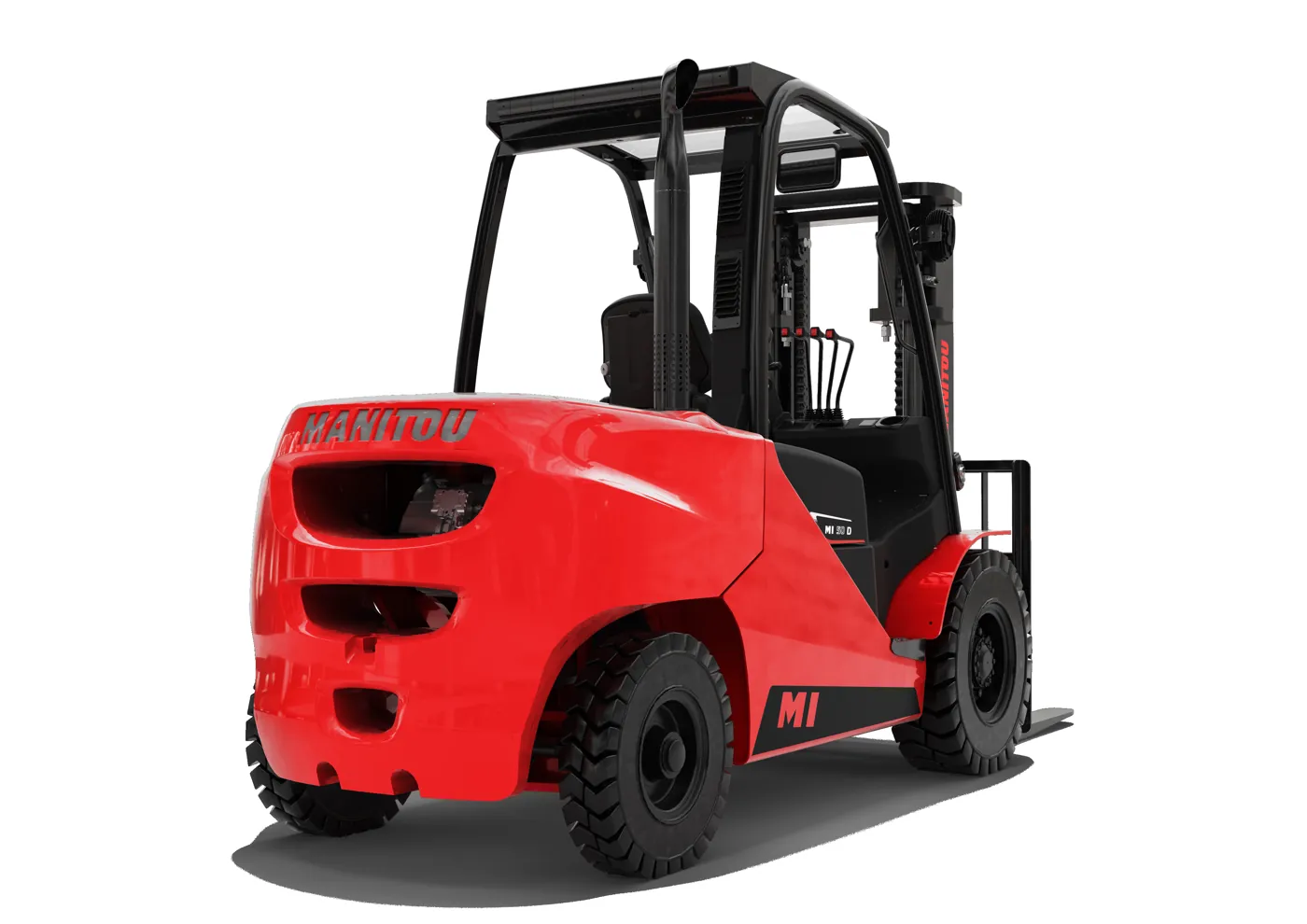

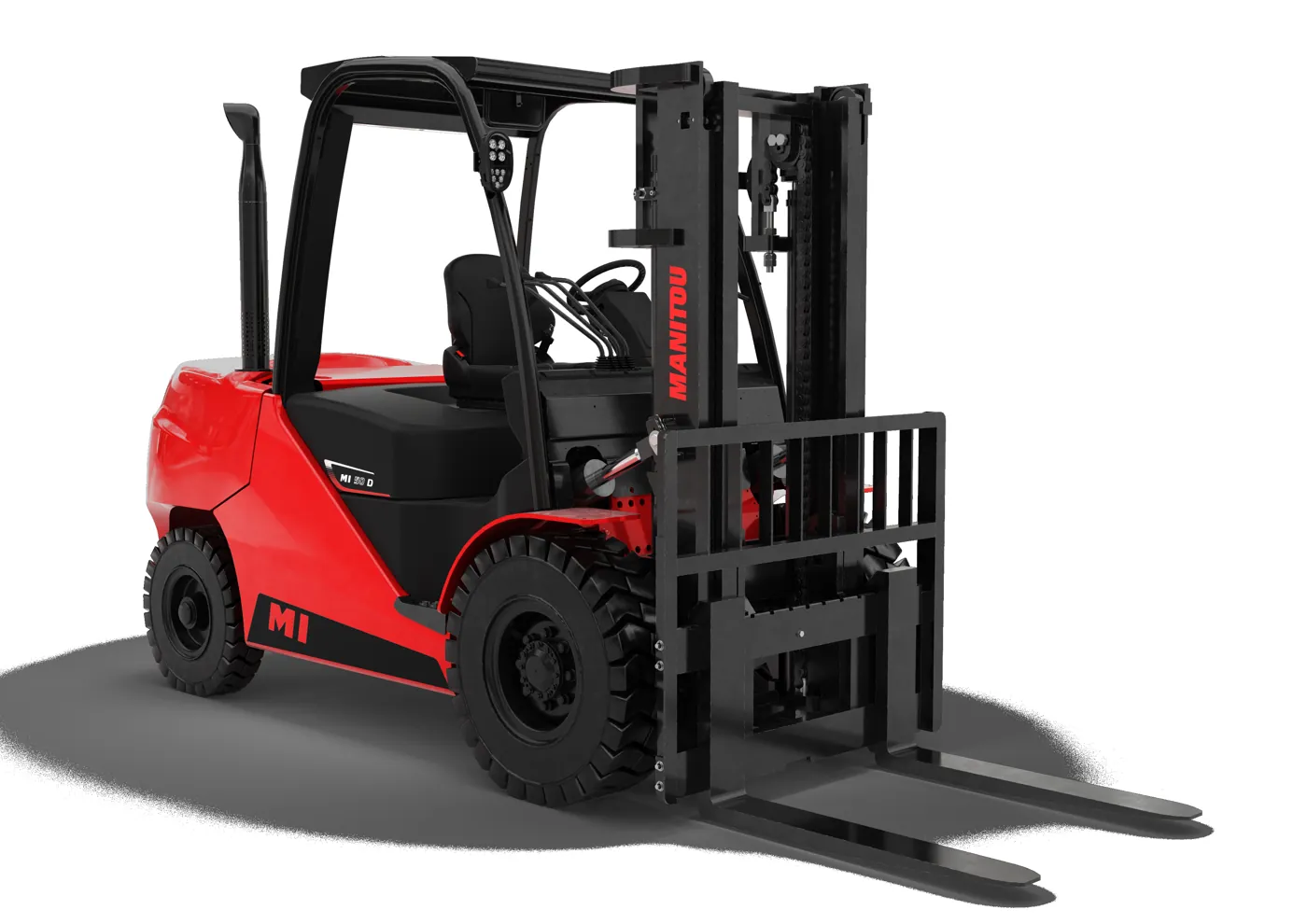

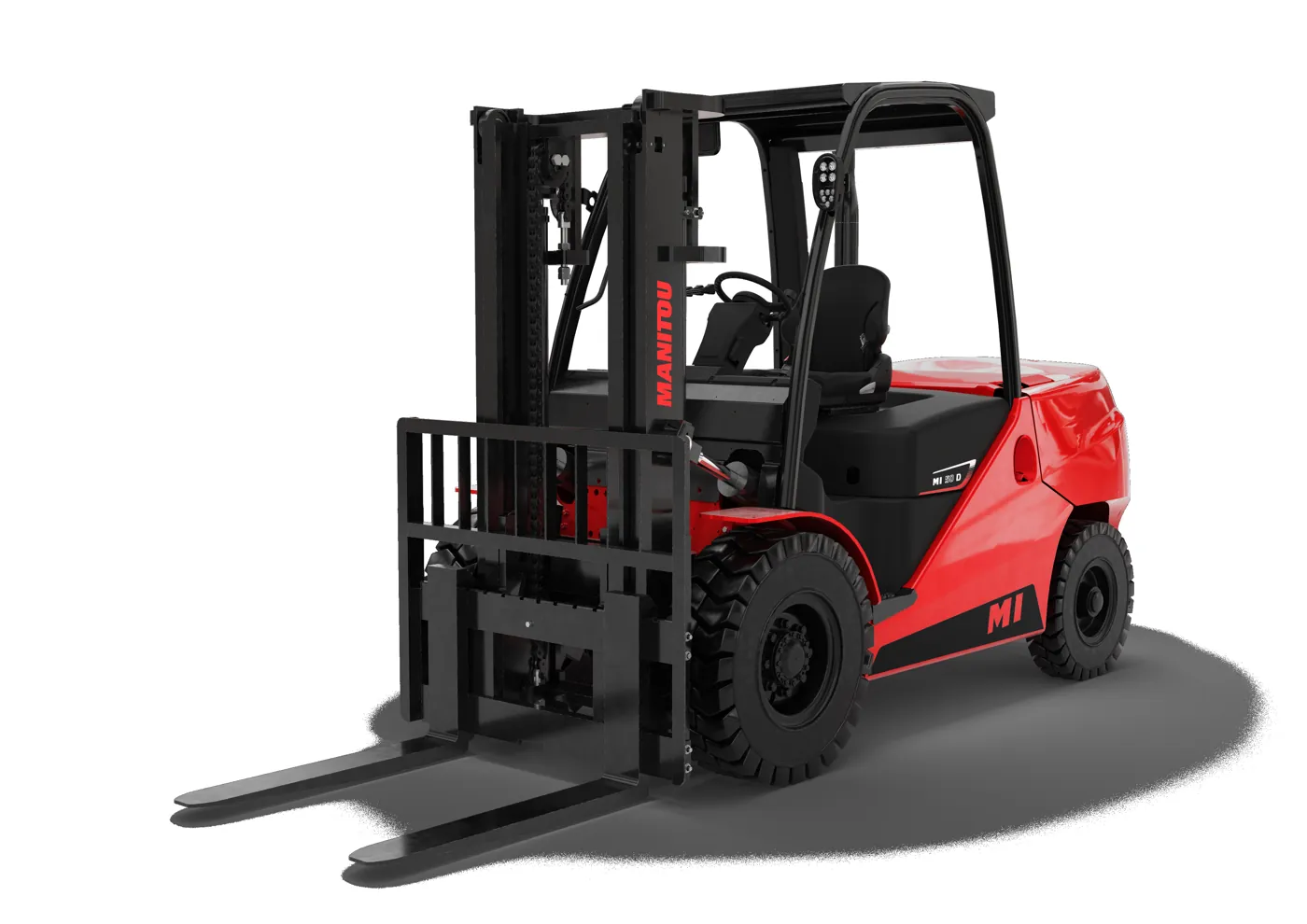

The Manitou MI 50 D is a heavy diesel industrial forklift rated at 11,023 lb, powered by a 75 hp Cummins. When you're moving big, dense loads in a lumber yard or steel yard, this is the capacity we'd put you in.
Product views
Manitou / Forklift
MI 50 D
11023
lb
Max Capacity
75 Hp
55 kW
Engine Power
14991
lb
Operating Weight
Diesel
Power Source
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Manitou MI 50 D? We'll send it with your quote.
11023
lb
Max Capacity
Specifications
- Manufacturer: Manitou
- Model Name: MI 50 D US
- Power source: Diesel
- Operator type: Seated
- Max. capacity: 11023 lb
- Load center of gravity: 20 in
- Load distance, centre of drive axle to fork: 22 in
- Wheelbase: 85 in
- Standard mast reference of the machine: FVD 30
- Service weight: 14991 lb
- Weight on front axle (laden) / rear axle (laden): 23038 lb / 2976 lb
- Weight on front axle (Unladen) / rear axle (Unladen): 6614 lb / 8378 lb
- Tires type: Pneumatic
- Dimensions of front wheels: 300-15-18PR
- Dimensions of rear wheels: 7.00-12-12PR
- Number of front wheels / rear wheels: 2 / 2
- Number of drive wheels: 2
- Front wheel gauge: 47 in
- Rear wheel gauge: 44 in
- Seat height/stand height: 54 in
- Height of overhead guard (cabin): 94 in
- Height of towing bar (coupling height): 18 in
- Overall length: 176 in
- Length to face of forks: 128 in
- Overall width: 59 in
- Overall width - Single wheels: 59 in
- Forks section / width / length: 2 in x 6 in x 48 in
- Fork carriage ISO 2328 (class/form) A/B: 3A
- Fork carriage width: 49 in
- Ground clearance below mast: 7 in
- Ground clearance at centre of wheelbase: 9 in
- Aisle Width for pallets 1000 x 1200 crossways: 189 in
- Aisle width for 800 x 1200 pallet lengthways: 194 in
- Turning radius: 115 in
- Internal turning radius (over tyres): 5 in
- Travel speed (laden / unladen): 14 mph-15 mph
- Lifting speed (laden / unladen): 1 ft/s-1 ft/s
- Lowering speed (laden / unladen): 2 ft/s-2 ft/s
- Drawbar pull (Laden / Unladen): 4000 daN / 2100 daN
- Gradeability (laden / unladen): 31 % / 34 %
- Service brake: Hydraulic
- Transmission type: Torque converter
- Engine brand / model / norm: Cummins / QSF2.8T4F / Tier 4 final
- Engine power (Hp / kW): 75 Hp/55 kW
- Rated speed: 2600 rpm
- Number of cylinders / Capacity of cylinders: 4 - 171 in³
- Working hydraulic pressure for attachments: 2321 PSI
- Oil flow rate for attachments: 24 US gpm
- Measured/guaranteed mean noise level at the ear of the operator: < 84 dB
- Sound level at the driver's ear according to DIN 12 053: 84 dB
