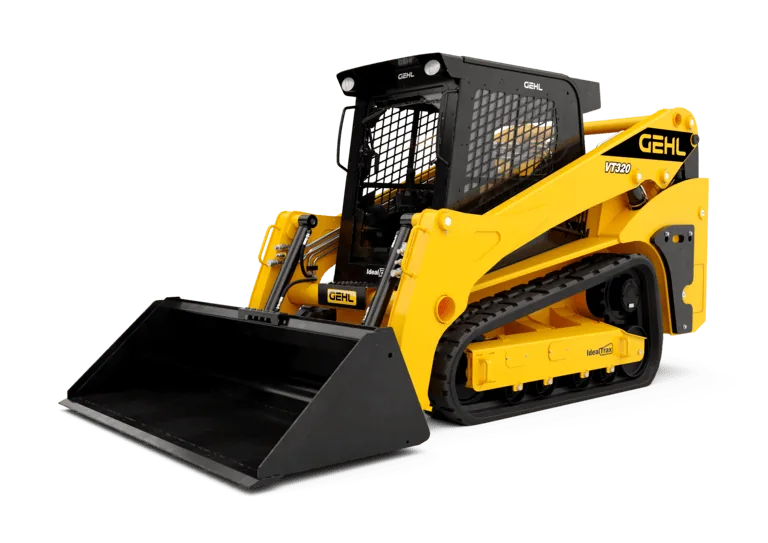

The Gehl VT320 is a vertical-lift compact track loader rated at 3,201 lb, running a 114 hp Deutz diesel on tracks for flotation and grip in soft or muddy ground. It's the track machine we point to when wheels just won't cut it.

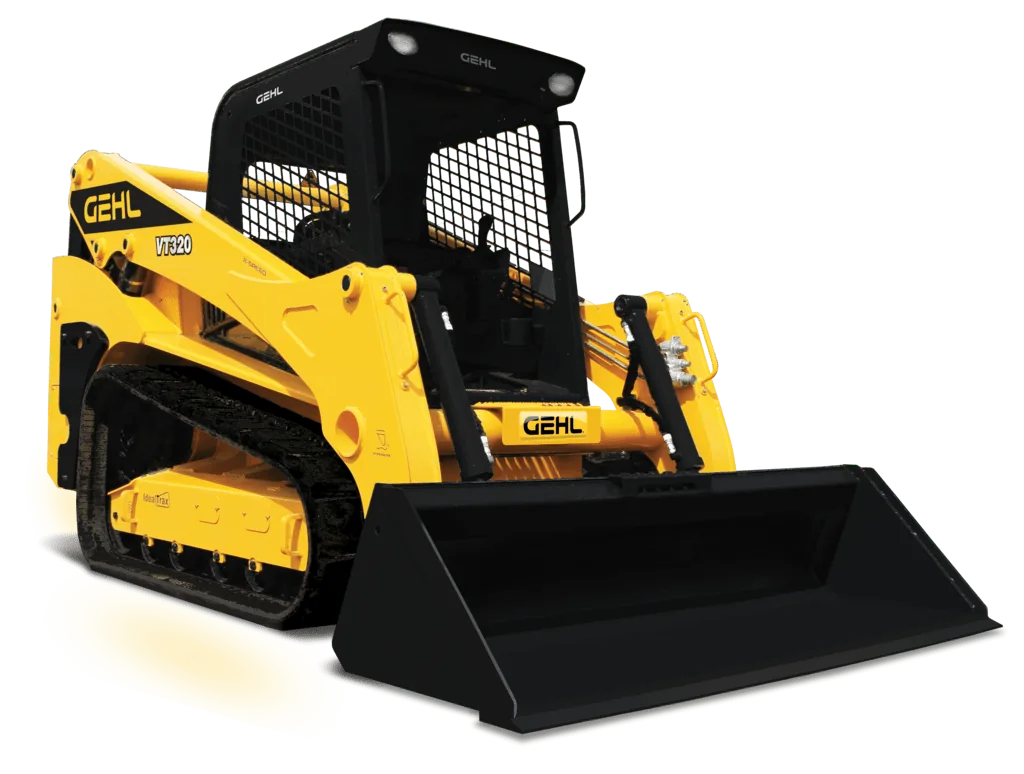

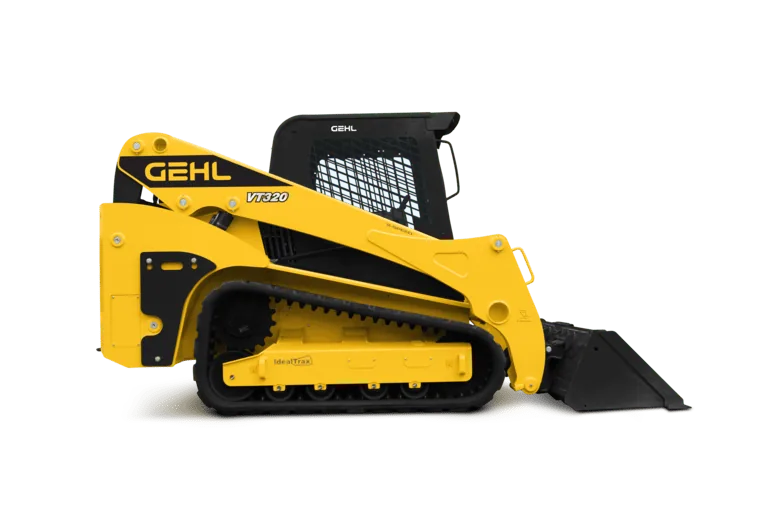

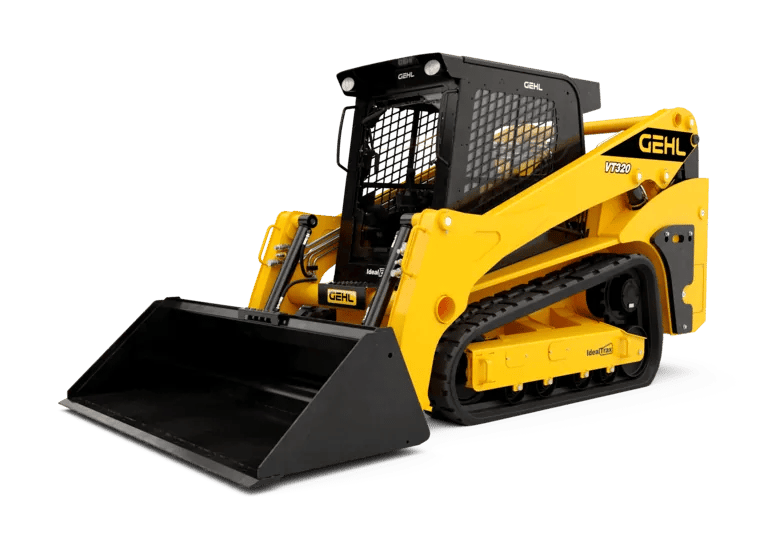

Product views

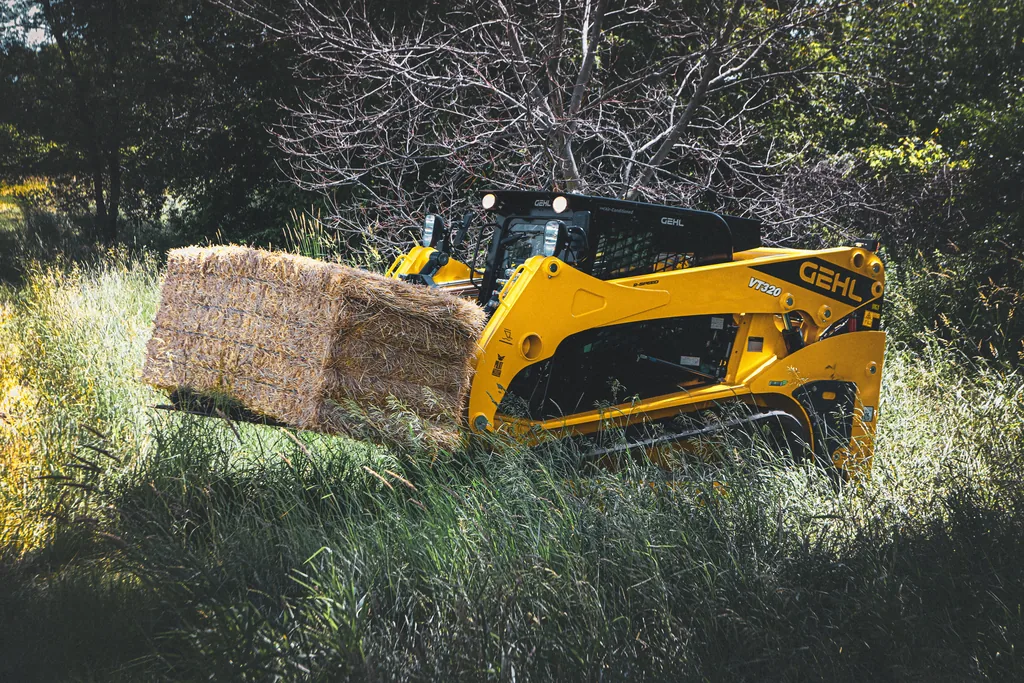

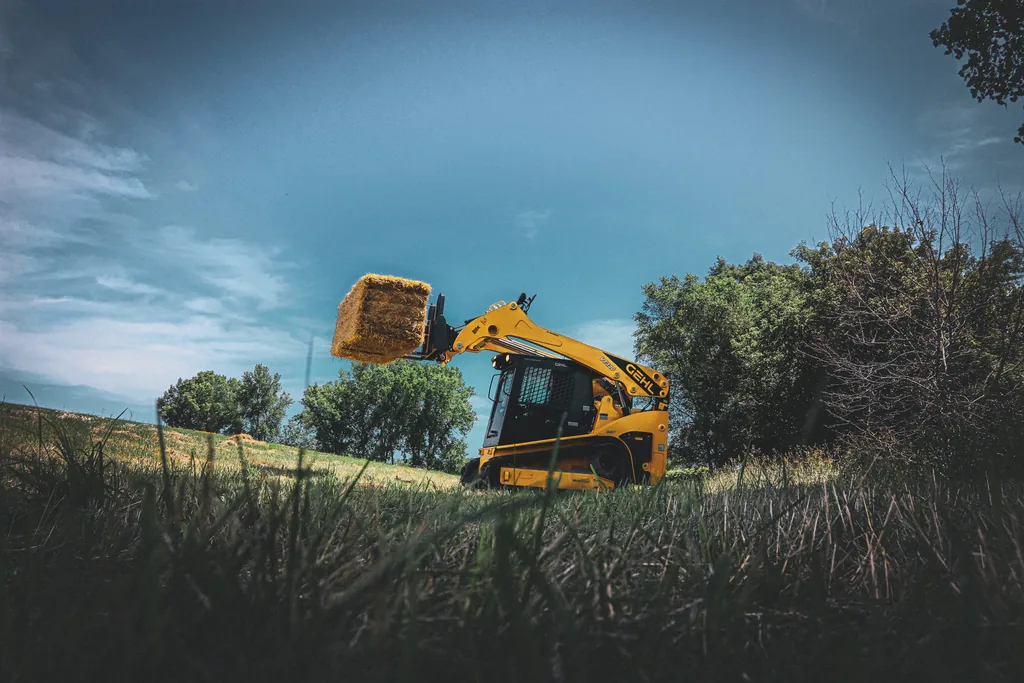

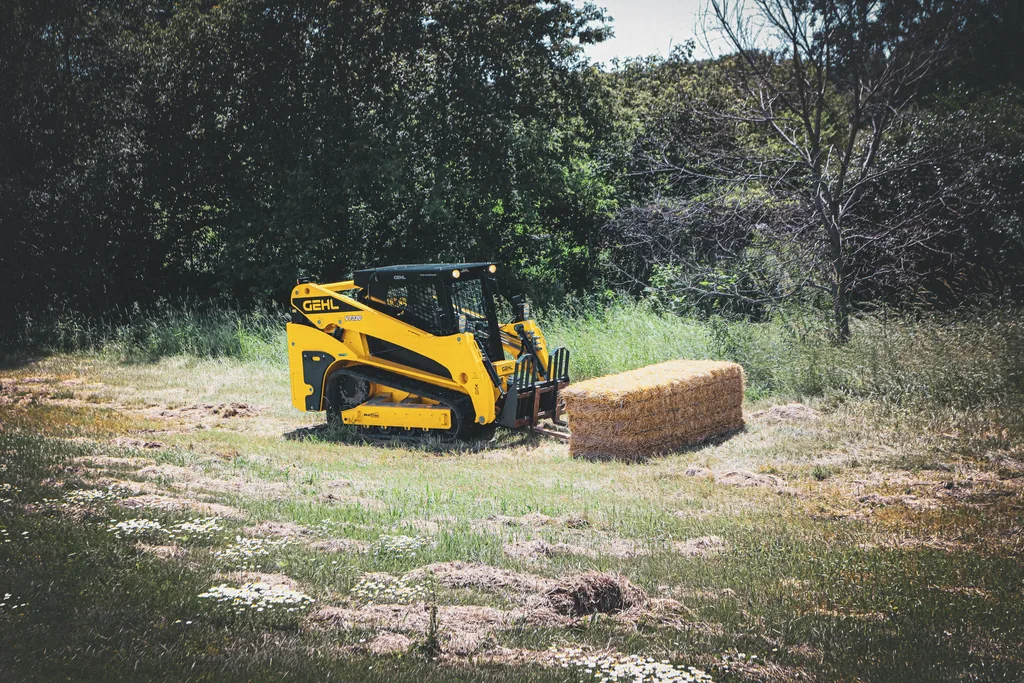

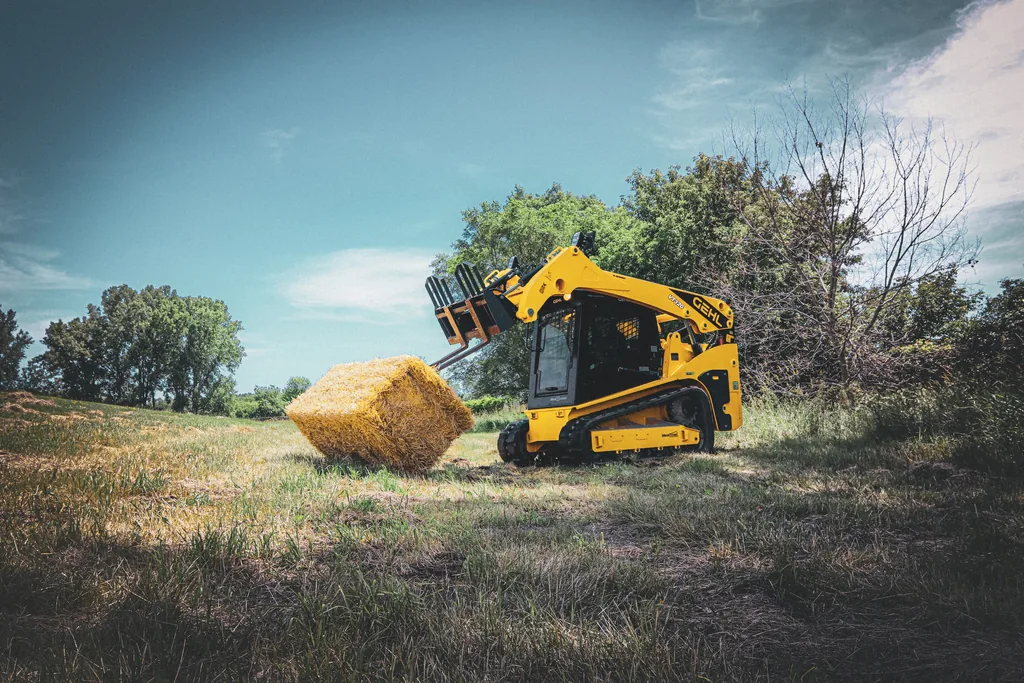

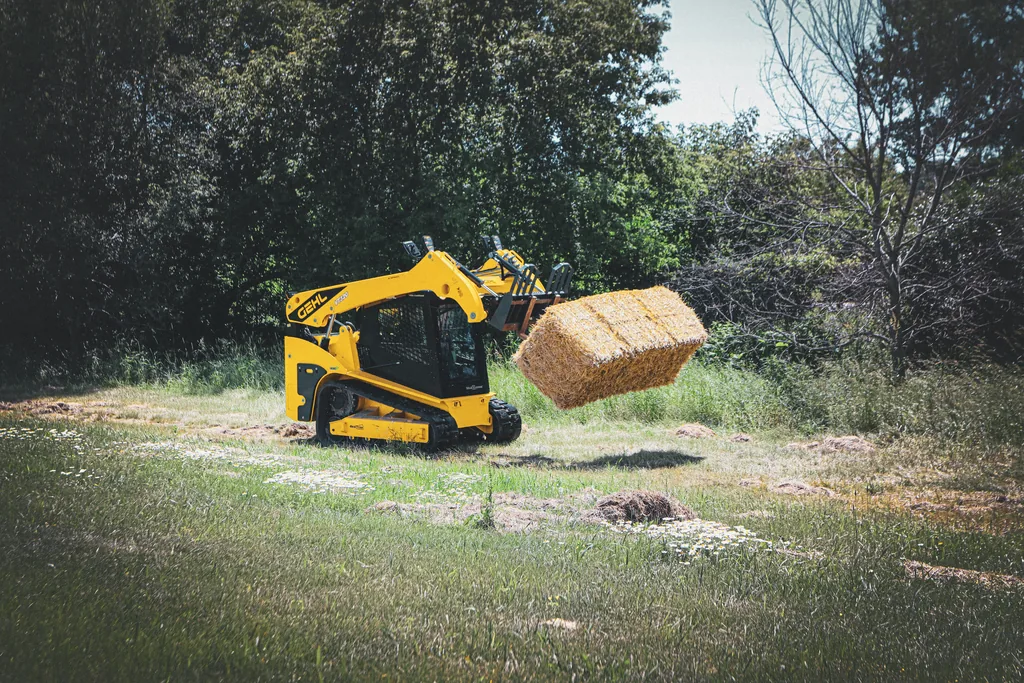

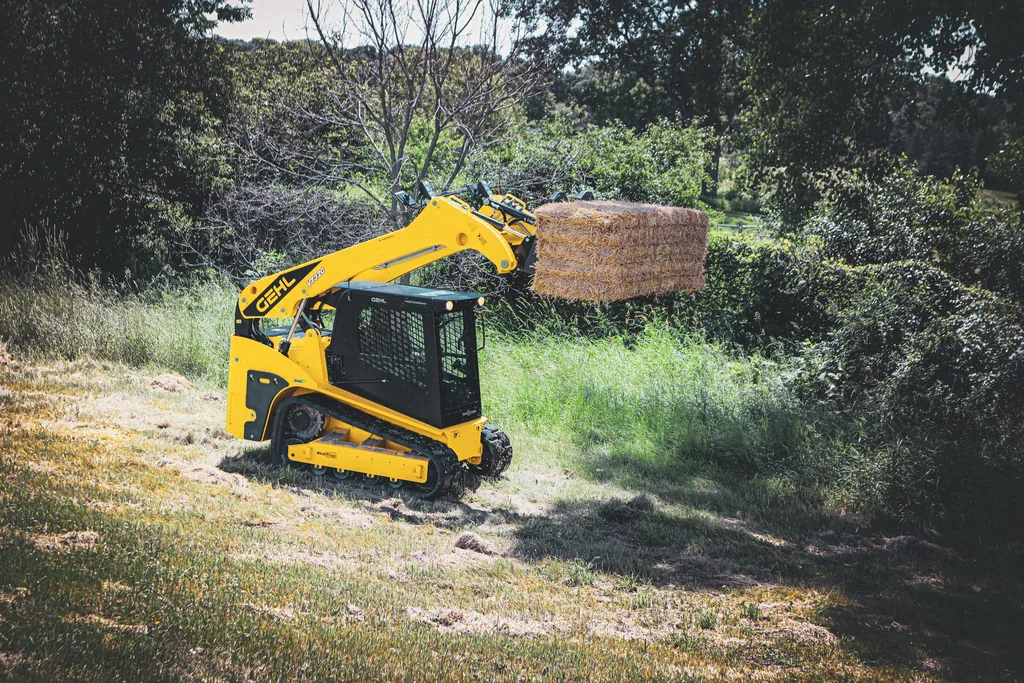

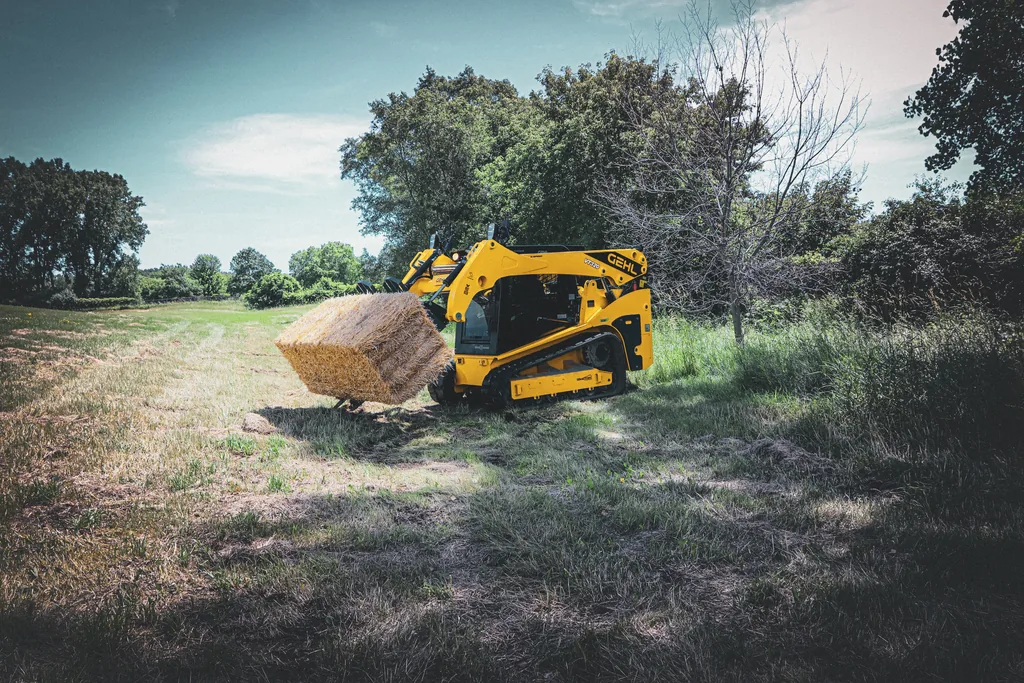

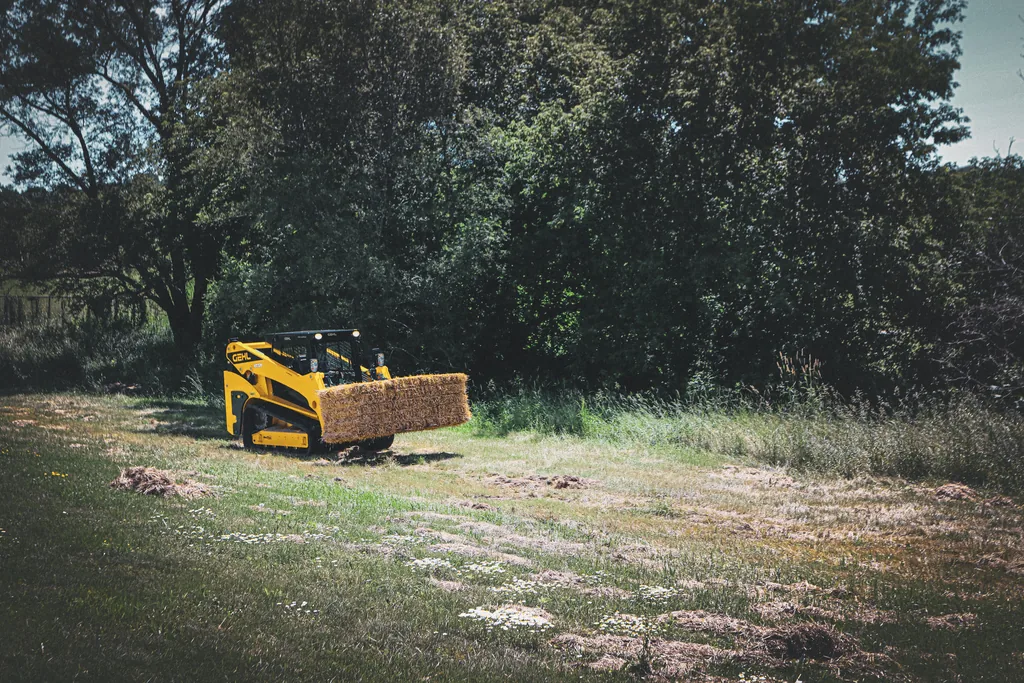

On the job
Gehl / Track Loader
VT320
3201
lb
Rated Operating Capacity
114
Hp
Engine Power
11799
lb
Operating Weight

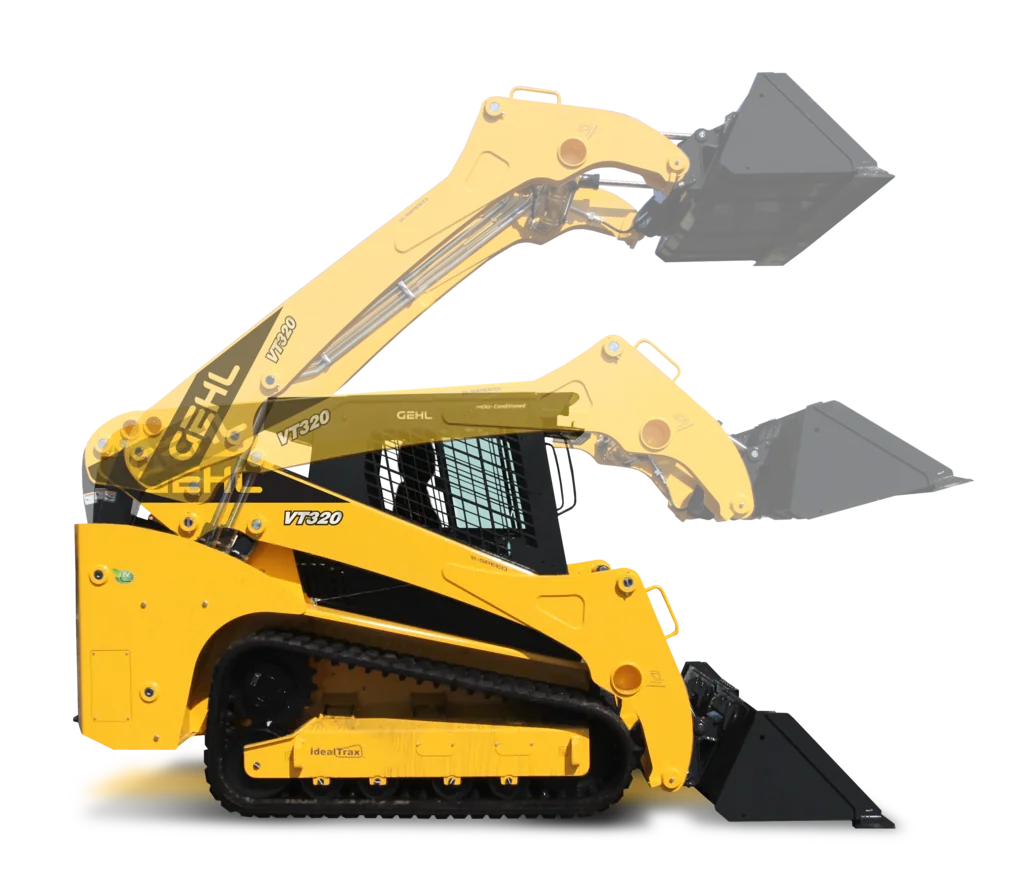

Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl VT320? We'll send it with your quote.
3201
lb
Rated Operating Capacity
Features
Standard Features
- Auxiliary Hydraulics
- Back-Up Alarm
- Hand/Foot Controls
- Lift Arm Support Device
- Hour meter
- Hydraloc™ Safety System
- Anti-Vandalism Protection
- All-Tach® Attachment Mounting System
- Horn
- ROPS/FOPS Level II Overhead Guard
- Operator Restraint Bar
- Swing-Out Cooler
- High-Back Adjustable Seat
Optional Features
- Air Conditioning
- Back-Up Alarm
- Cab Enclosure
- Counterweight
- Foot and Hand Throttles (Dual Joystick and T-bar)
- Heating in cab
- Hydraglide™ Ride Control
- Pilot Joystick Controls
- Power-A-Tach® Attachment Mounting System
- Selectable Self-Leveling Hydraulic Lift Action
- Suspension Seat - Air Ride
- Suspension Seat - Mechanical
- T-Bar Controls
- Two-Speed Drive
- High-Flow Auxiliary Hydraulics
- Engine Block Heater
Specifications
- Operating Weight: 11799 lb
- Operating Capacity at 35% Tipping Load: 3201 lb
- Operating Capacity At 50% Tipping Load: 4572 lb
- Tipping capacity: 9145 lb
- Overall Operating Height - Fully Raised: 169 in
- Height to Hinge Pin - Fully Raised: 130 in
- Reach - Fully Raised: 40 in
- Dump angle at full height: 41 °
- Dump Height - Fully Raised: 100 in
- Maximum Rollback Angle - Fully Raised: 90.30 °
- Overall Height to top of ROPS: 83 in
- Overall length with bucket: 160 in
- Overall Length without Bucket: 128 in
- Specified Height: 76 in
- Reach at Specified Height: 30 in
- Carry Position: 8 in
- Maximum Rollback Angle at Carry Position: 31 °
- Digging Position: 0.75 in
- Angle of Departure with STD Counterweight: 23.50 °
- Ground clearance: 12 in
- Track gauge: 52 in
- Track Shoe Width: 18 in
- Crawler base: 62 in
- Overall width less bucket: 70 in
- Bucket Width: 84 in
- Clearance Radius - Front with Bucket: 98 in
- Track Type / Roller Type: Rubber / Steel
- Ground Speed - Single Speed: 5 mph
- Drawbar Pull/Tractive Effort: 12769 lb
- Bucket Breakout - Tilt Cylinder: 9903 lb
- Bucket Breakout - Lift Cylinder: 7491 lb
- Brand / model: Deutz TD 3.6 EPA
- Motor Type: Axial Piston with planetary gear box reduction
- Engine power (Hp): 114 Hp
- Engine power (kW): 85 kW
- Battery voltage: 12 V
- Cold Cranking Amps at Temperature (CCA): 1600 A
- Alternator - Voltage / Ampere: 14 V / 120 A
- Standard flow - Auxiliary hydraulics: 29 US gpm
- High-Flow Auxiliary Hydraulics - Option: 38 US gpm
- Hydraulic tank capacity: 10 US gal
- Fuel: 32 US gal
- Displacement / Number of cylinders: 0.95 US gal / 4
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
New to this category? Our buyer's guide walks through how to pick the right machine for the job.
Buyer's guides for this machine
Frequently asked questions
Go with a compact track loader when you work on soft, wet or sloped ground, on turf you don't want to tear up, or year-round in mud and snow. Tracks spread the weight for more flotation and traction.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: 0% financing for 48 months through June 30, 2026. Ask about 0% for 48 months, 1.99% for 60, or 2.99% for 72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Factory-backed sales, parts and warranty - right here in Laddonia, MO.
Service & parts in house
We support what we sell. No shipping your machine across the country for warranty work or parts.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
