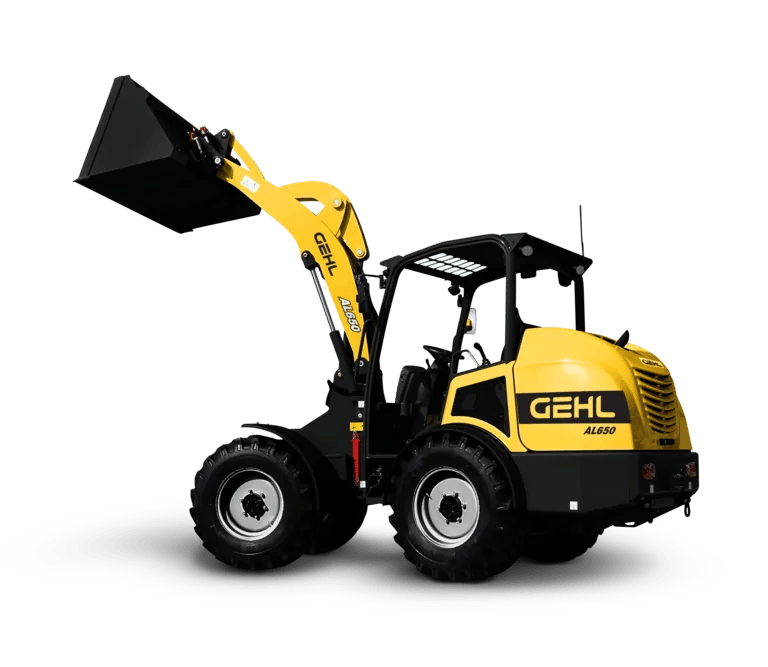

The Gehl AL650 is a compact articulated loader with a 6,409 lb tipping load and a 65 hp diesel, and it pivots in the middle instead of skidding. That means it turns tight without tearing up turf, so it's a favorite for landscapers, nurseries, and livestock barns.

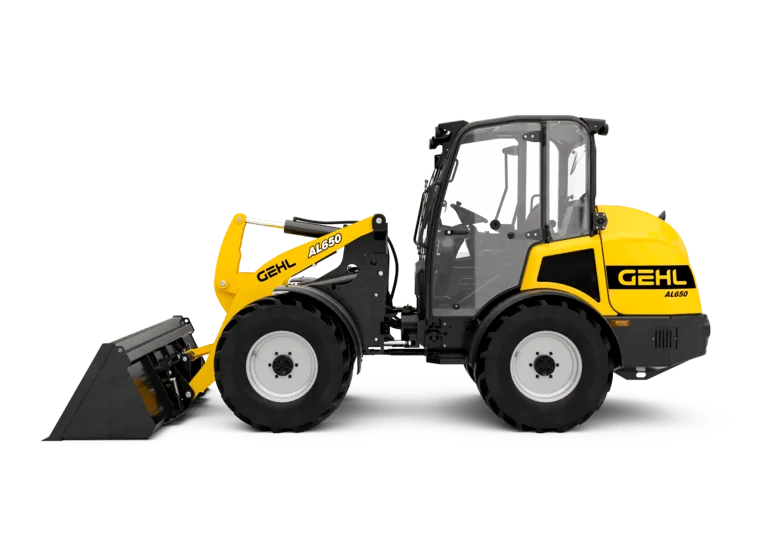

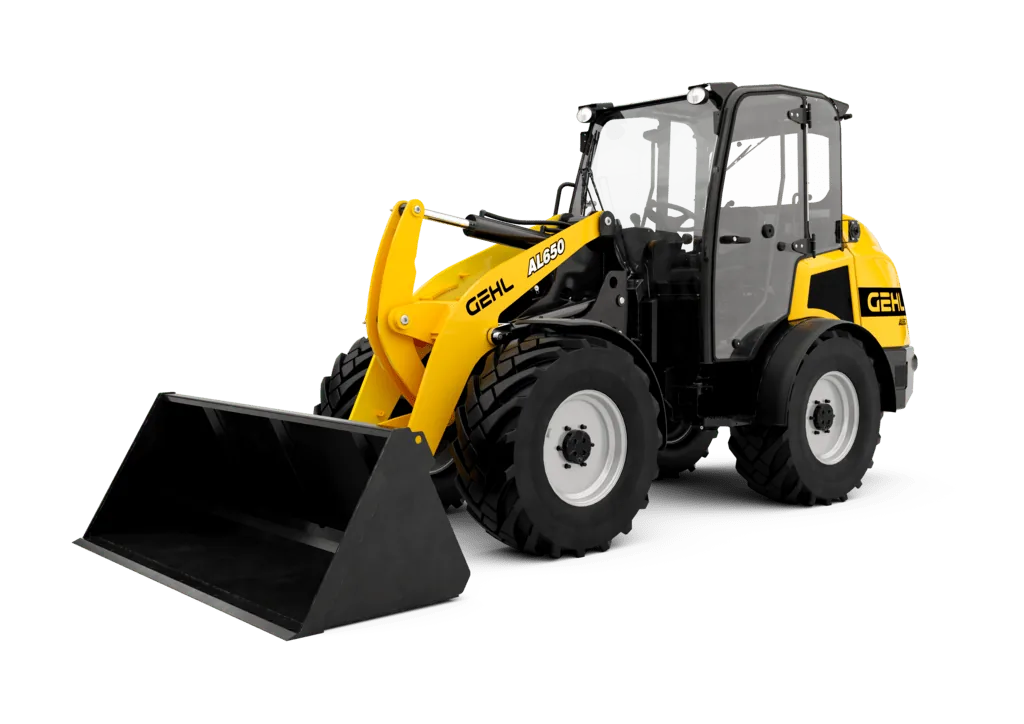

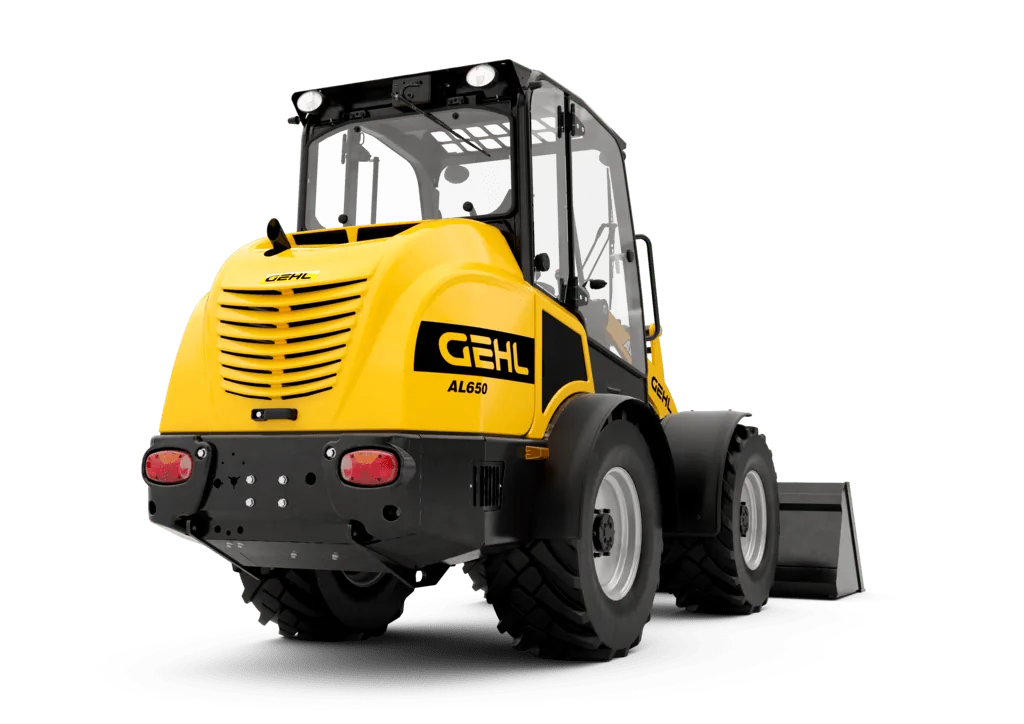

Product views

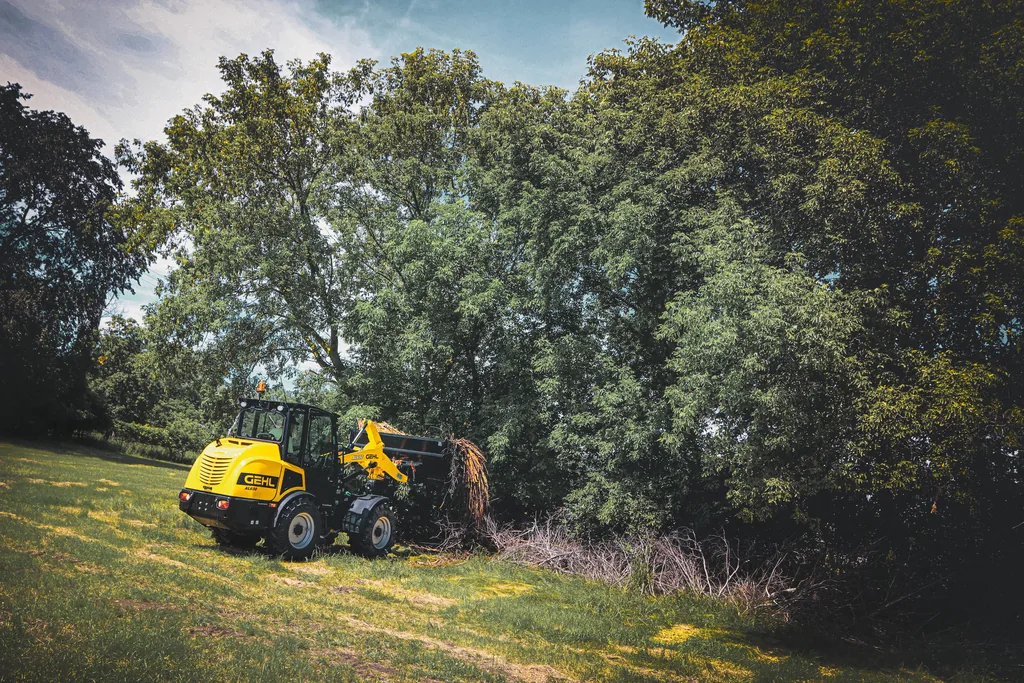

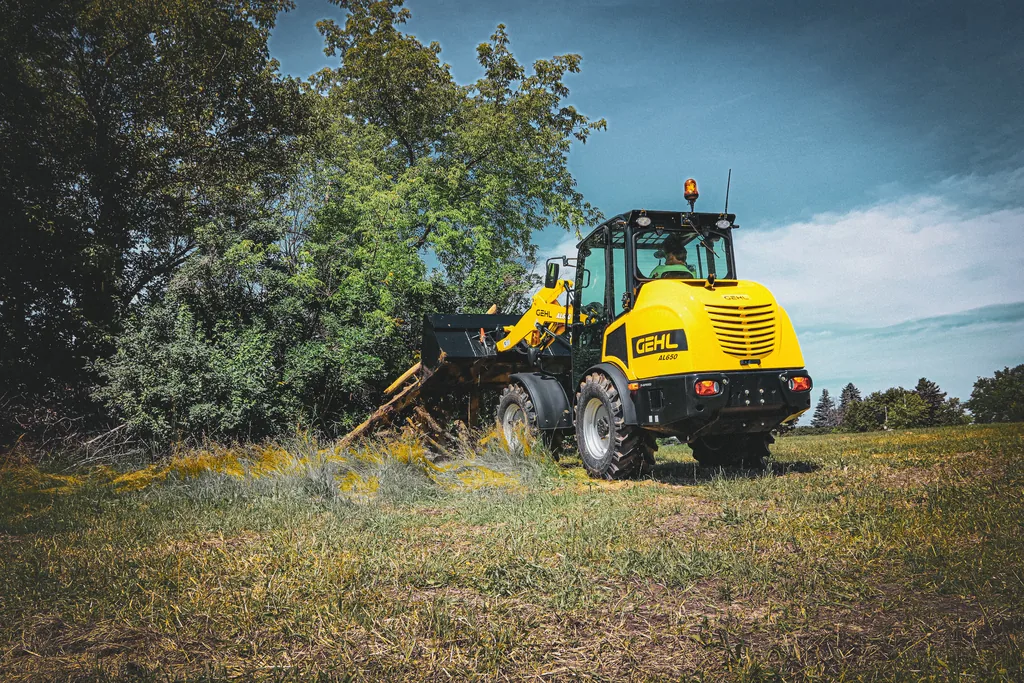

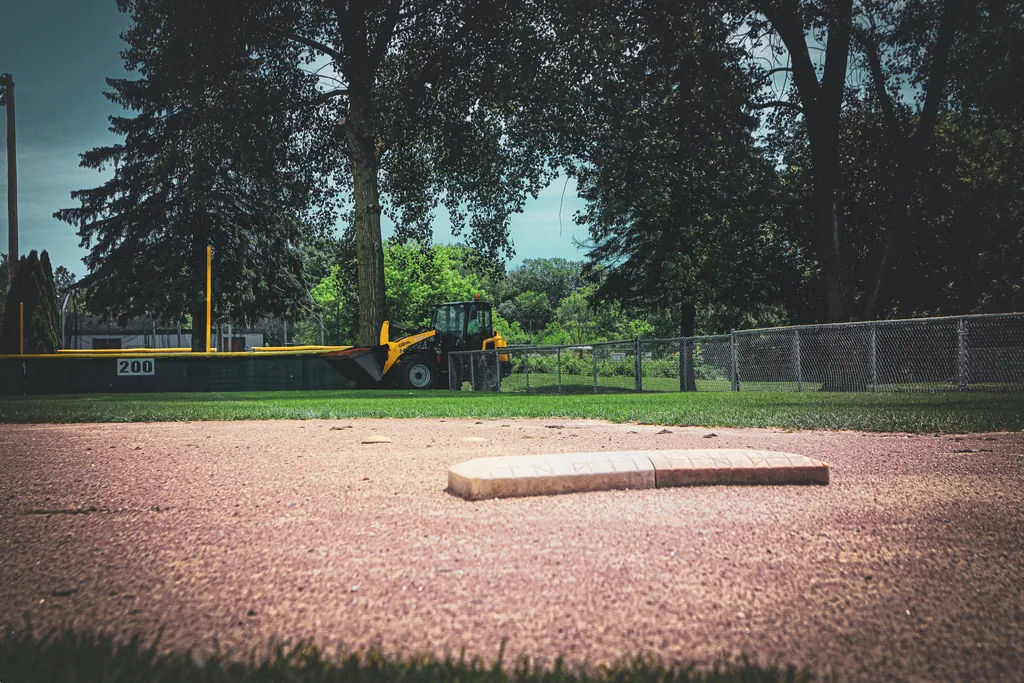

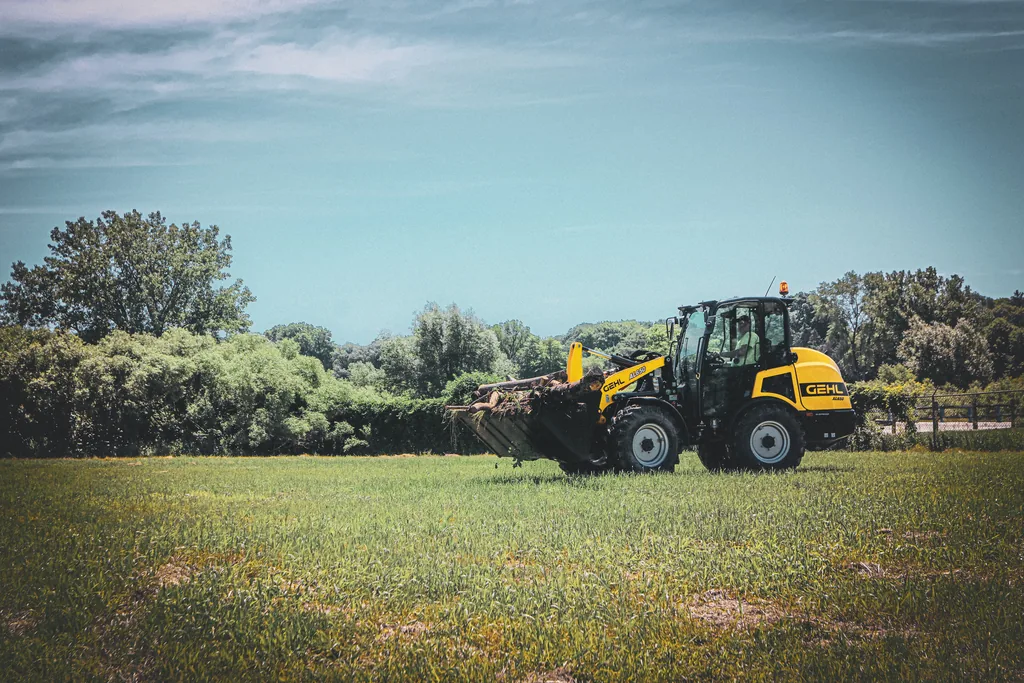

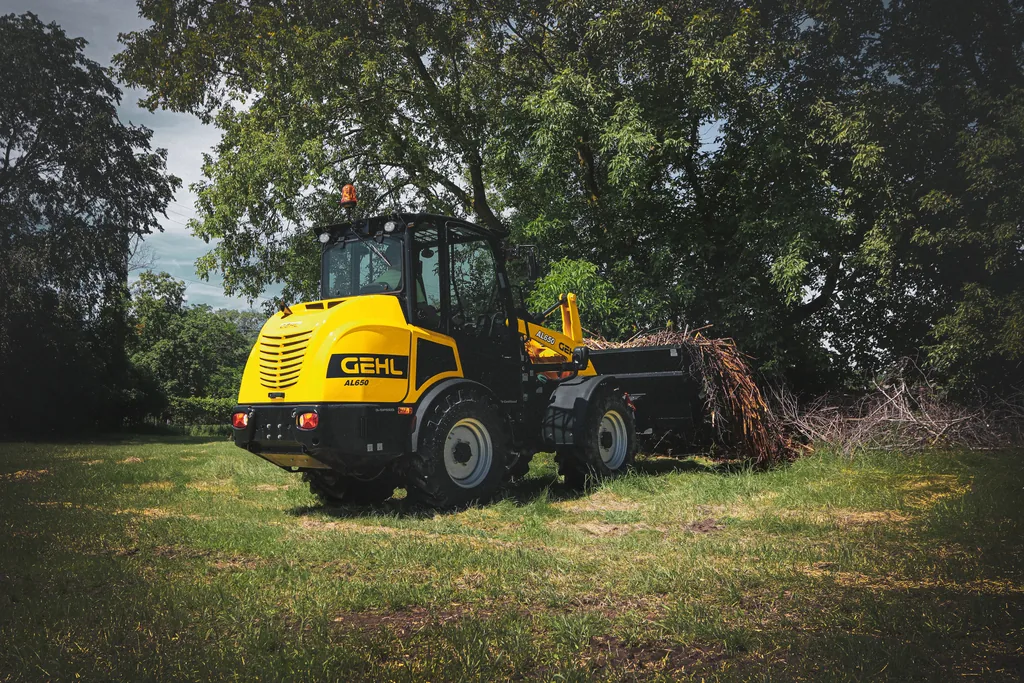

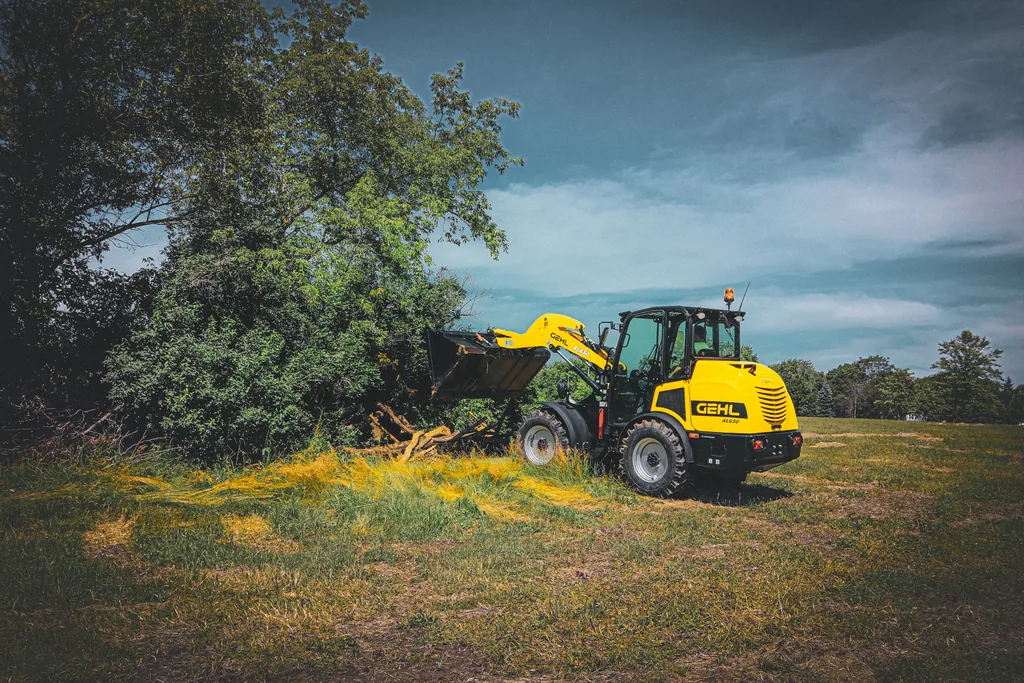

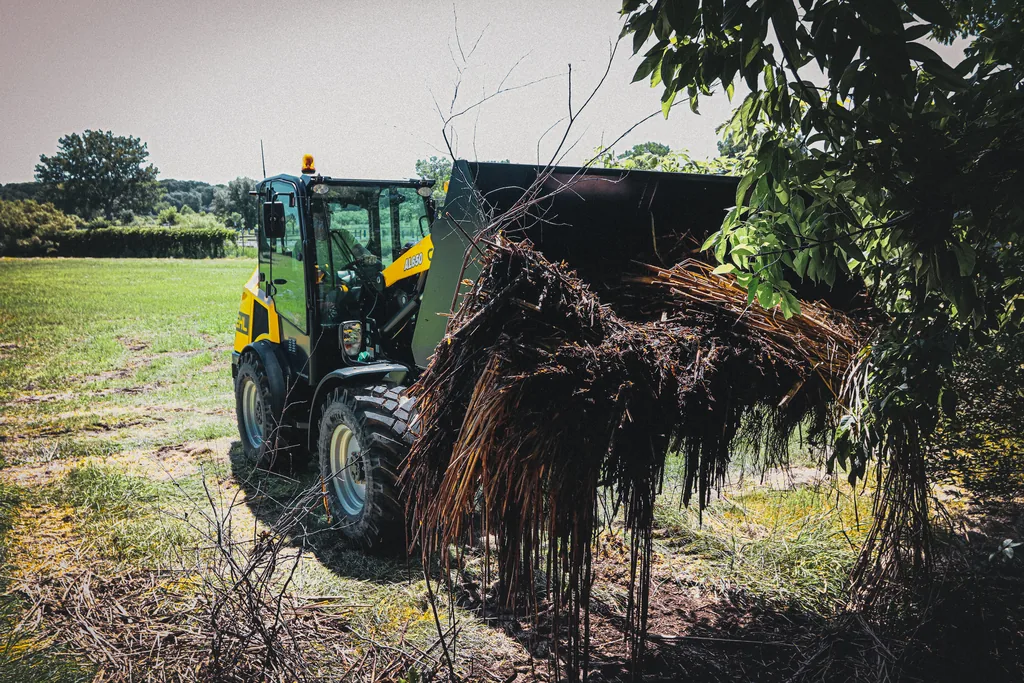

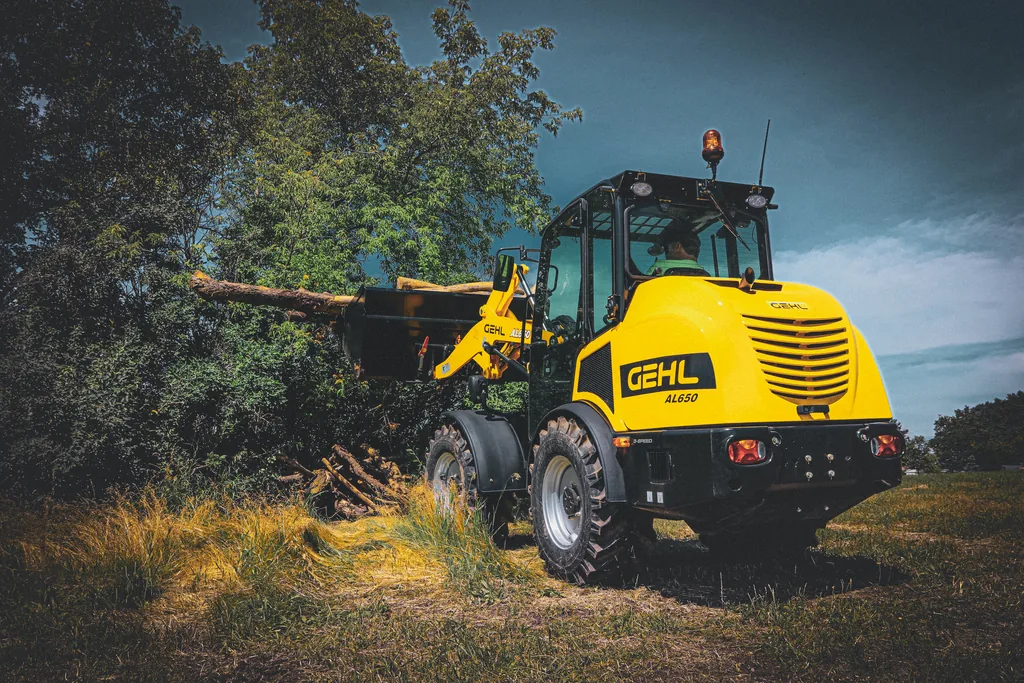

On the job
Gehl / Articulated Loader
AL650
10 ft 3 in
Max Lift Height
64.40 Hp
48 kW
Engine Power
9149
lb
Operating Weight
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl AL650? We'll send it with your quote.
10 ft 3 in
Max Lift Height
Features
Standard Features
- 12Volt Power Port
- Adjustable and telescopic steering column
- Adjustable arm rests
- Articulation Locking Bar
- Cup Holder
- Differential Lock
- Electronic Hand Throttle
- Front and Rear - Work Lights
- Inching Pedal
- LED work lights - On boom head (Telescopic part)
- Lift Tilt Electronic Lockout Switch
- Master electrical disconnect switch
- Multi-Function Display Screen
- Oscillating Front Frame
- Power-A-Tach® Attachment Mounting System
- Proportional Auxiliary Hydraulics w/ Case Drain & Circuit Pressure Dump
- Removable Rubber Floormat
- Reverse and Brake Tail Lights
Optional Features
- 12Volt Power Port
- 3-inch Seatbelt
- Strobe Light
- Adaptive air suspension heated fabric seat - With electric lumbar adjustment - GRAMMER
- Additional Set of Front Auxiliary Hydraulics
- Back-Up Alarm
- Cabin with Heat
- Cabin with Heat and Air Conditioning
- Speed control
- Electric Attachment control 14 Pin Harness with Switches
- Hydraglide™ Ride Control
- LED Work Lights
Specifications
- Static tipping load with bucket (straight): 6744 lb
- Static tipping load with bucket (full turn): 4916 lb
- Static tipping load with forks (straight): 5302 lb
- Max. height of bucket pivot point: 10 ft 11 in
- Max. lifting height (below forks): 10 ft 3 in
- Breakout force with bucket: 5743 daN
- Unladen weight (with forks) with 4-post canopy: 9149 lb
- Wheelbase: 79 in
- Overall width of 4 posts canopy: 4 ft 6 in
- Overall cab width: 4 ft 6 in
- Overall height with 4 posts canopy: 8 ft 1 in
- Overall height with cab: 8 ft 1 in
- Tilt-up angle: 45 °
- Tilt-down angle: 45 °
- Articulation angle: 45 °
- Overall width less bucket: 5 ft 5 in
- Overall length - Less Bucket: 14 ft
- Ground clearance: 1 ft 3 in
- Brand / model: Yanmar 4TNV98CT
- Emissions norm: Tier 4 final
- Number of cylinders / Capacity of cylinders: 4 - 201 in³
- Power: 64.40 Hp / 48 kW
- Max. torque / Engine rotation: 207 ft/lbs / 2300 rpm
- Engine cooling system: 2 radiators water + hydraulic oil
- Transmission type: Hydrostatic
- Number of gears (forward / reverse): 2 / 2
- Max. travel speed (may vary according to applicable regulations): 19 mph
- Travel speed (laden): 19 mph
- Differential lock: Front and rear locking of the machine
- Parking brake: Manual
- Service brake: Hydraulic drum brake on front axle, acting on all 4 wheels
- Hydraulic pump type: Gear pump
- Hydraulic flow - Pressure: 18 US gpm / 2901 PSI
- High-Flow Option (l/min): 26 US gpm
- Drive hydraulic system pressure: 6092 PSI
- Hydraulic oil: 19 US gal
- Fuel: 25 US gal
- Vibration on hands/arms: < 8 ft/s²
- Cab certification: ROPS - FOPS cab (level 1)
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl AL650 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Buyer's guides for this machine
Frequently asked questions
The frame pivots in the middle, so all four wheels stay planted and it turns tight without scuffing finished surfaces - great for yards, livestock and landscaping where a smooth ride and traction matter.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: 0% financing for 24 months through June 30, 2026. Ask about 0% for 24 months, then 1.99%/36, 2.99%/48, 3.99%/60, or 4.99%/72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
