The Gehl AL750 steps up to a 74 hp diesel and a 7,908 lb tipping load while keeping the same easy-on-the-ground articulated steering. If the AL650 is close but you want a little more muscle for loader and bucket work, this is the size we'd point you to.

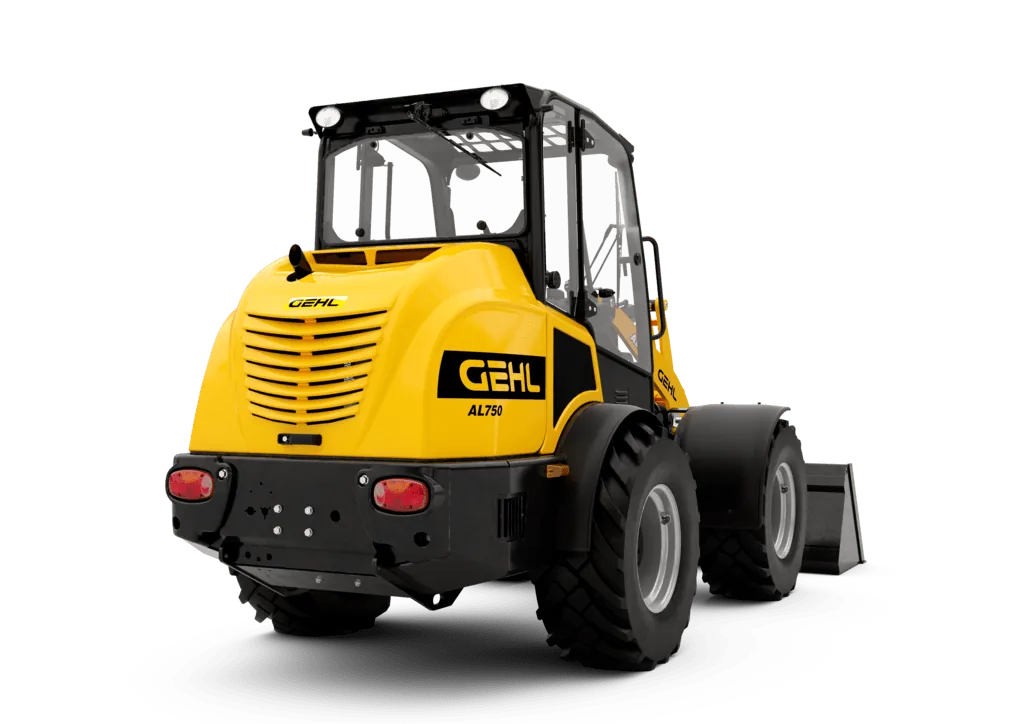

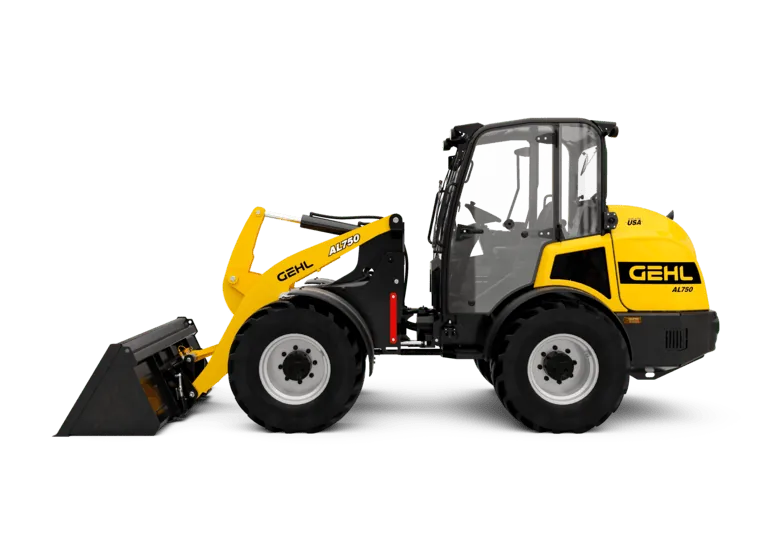

Product views

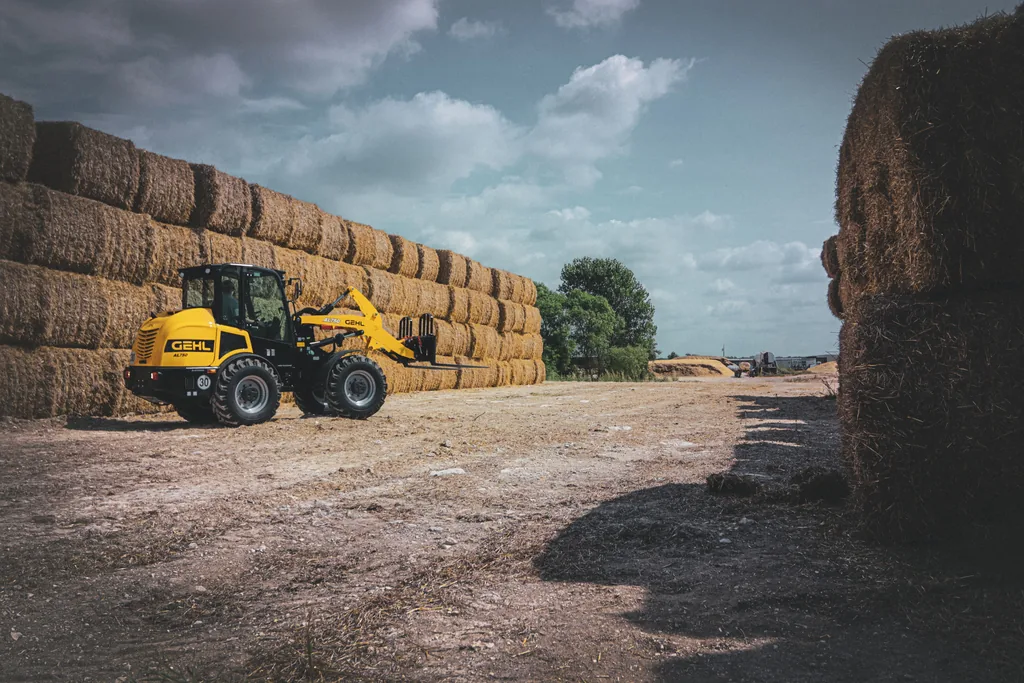

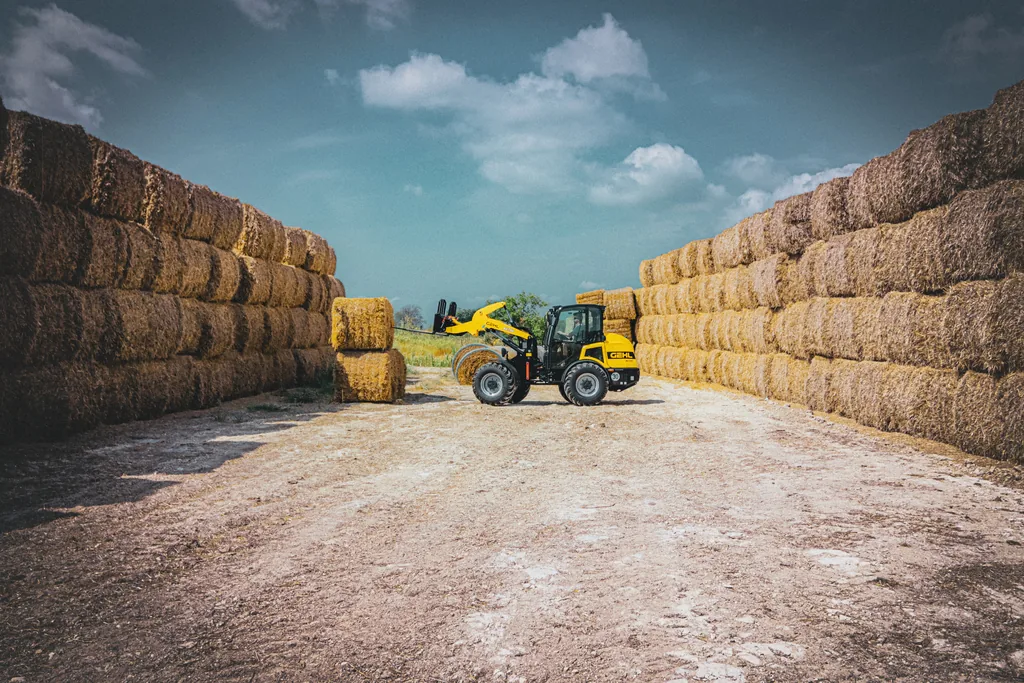

On the job

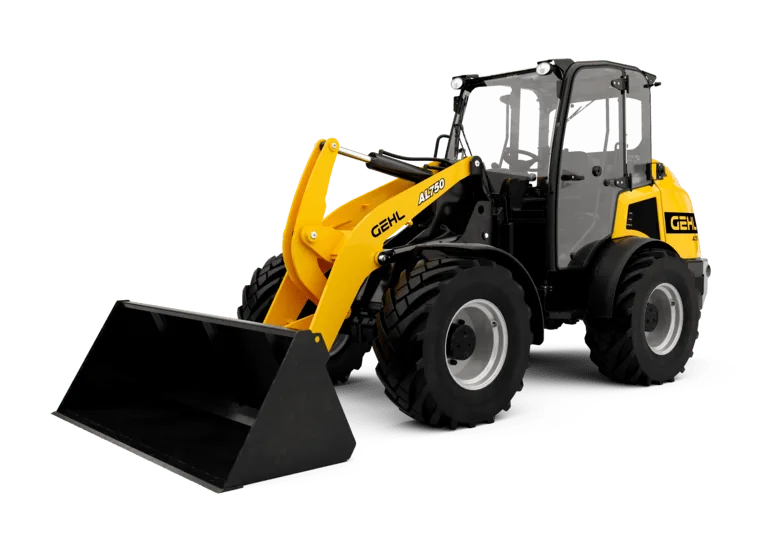

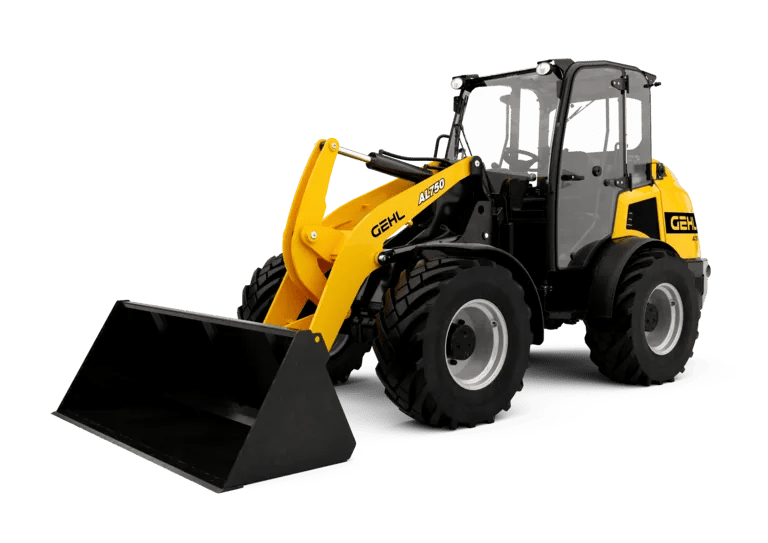

Gehl / Articulated Loader
AL750
10 ft 9 in
Max Lift Height
74.30 Hp
55 kW
Engine Power
10540
lb
Operating Weight
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl AL750? We'll send it with your quote.
10 ft 9 in
Max Lift Height
Features
Standard Features
- 12Volt Power Port
- Adjustable and telescopic steering column
- Adjustable arm rests
- Articulation Locking Bar
- Cup Holder
- Differential Lock
- Electronic Hand Throttle
- Front and Rear - Work Lights
- Inching Pedal
- LED work lights - On boom head (Telescopic part)
- Lift Tilt Electronic Lockout Switch
- Master electrical disconnect switch
- Multi-Function Display Screen
- Oscillating Front Frame
- Power-A-Tach® Attachment Mounting System
- Proportional Auxiliary Hydraulics w/ Case Drain & Circuit Pressure Dump
- Removable Rubber Floormat
- Reverse and Brake Tail Lights
- Seven Way Adjustable Air Suspension Seat
- Side View Mirrors
- Tilt & Lift Arm Float Detent with Detent Disable
- Horn
- Two-Speed Hydrostatic Drive System
Optional Features
- 3-inch Seatbelt
- Back-Up Alarm
- Hydraglide™ Ride Control
- LED Work Lights
- License Plate Holder
- Bluetooth radio
- High-Flow Auxiliary Hydraulics
Specifications
- Static tipping load with bucket (straight): 7908 lb
- Static tipping load with bucket (full turn): 5778 lb
- Max. height of bucket pivot point: 11 ft 5 in
- Max. lifting height (below forks): 10 ft 9 in
- Breakout force with bucket: 5906 daN
- Static tipping load with pallet forks - Straight with cab: 6354 lb
- Unladen weight (with forks) with 4-post canopy: 10540 lb
- Wheelbase: 6 ft 9 in
- Overall width of 4 posts canopy: 4 ft 9 in
- Overall cab width: 4 ft 9 in
- Overall height with 4 posts canopy: 8 ft 2 in
- Overall height with cab: 8 ft 2 in
- Tilt-up angle: 45 °
- Tilt-down angle: 45 °
- Articulation angle: 45 °
- Overall width less bucket: 5 ft 9 in
- Overall length - Less Bucket: 14 ft 7 in
- Ground clearance: 1 ft
- Brand / model: Deutz TD3.6 L4
- Emissions norm: Stage IIIB
- Number of cylinders / Capacity of cylinders: 4 - 220 in³
- Power: 74.30 Hp / 55 kW
- Max. torque / Engine rotation: 243 ft/lbs / 2300 rpm
- Engine cooling system: 2 radiators water + hydraulic oil
- Transmission type: Hydrostatic
- Number of gears (forward / reverse): 2 / 2
- Max. travel speed (may vary according to applicable regulations): 19 mph
- Travel speed (laden): 19 mph
- Differential lock: Front and rear locking of the machine
- Parking brake: Manual
- Hydraulic pump type: Gear pump
- Hydraulic flow - Pressure: 18 US gpm / 2901 PSI
- High-Flow Option (l/min): 30 US gpm
- Drive hydraulic system pressure: 5511 PSI
- Hydraulic oil: 19 US gal
- Fuel: 27 US gal
- Vibration on hands/arms: < 8 ft/s²
- Cab certification: ROPS - FOPS cab (level 1)
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl AL750 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Buyer's guides for this machine
Frequently asked questions
The frame pivots in the middle, so all four wheels stay planted and it turns tight without scuffing finished surfaces - great for yards, livestock and landscaping where a smooth ride and traction matter.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote. Financing is subject to credit approval and we'll walk you through the options. The Q3 2026 program runs through September 30, 2026.
Yes - we deliver anywhere in Missouri. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. Coverage terms vary by model and how the machine is used - ask us for the current factory coverage when you request a quote.
Financing
Q3 financing offer: 0% financing for 24 months through September 30, 2026. Ask about 0% for 24 months, then 1.99%/36, 2.99%/48, 3.99%/60, or 4.99%/72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Road Service
Already own one? When it goes down on the job, we come to it. Road service for construction and ag equipment, most makes, across 15 counties in central and northeast Missouri, quoted on the phone before we roll.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Authorized for the Manitou and Gehl lineup - right here in Laddonia, MO.
Talk to a real person
Call the dealership and get someone who knows these machines, not a national call center three states away.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
