The Gehl ALT750 is the telescopic version of the AL750, so the boom extends to put loads up around 16 feet at the hinge pin instead of the usual 10. Same 74 hp diesel and gentle articulated steering, just with the extra reach for stacking and truck loading.

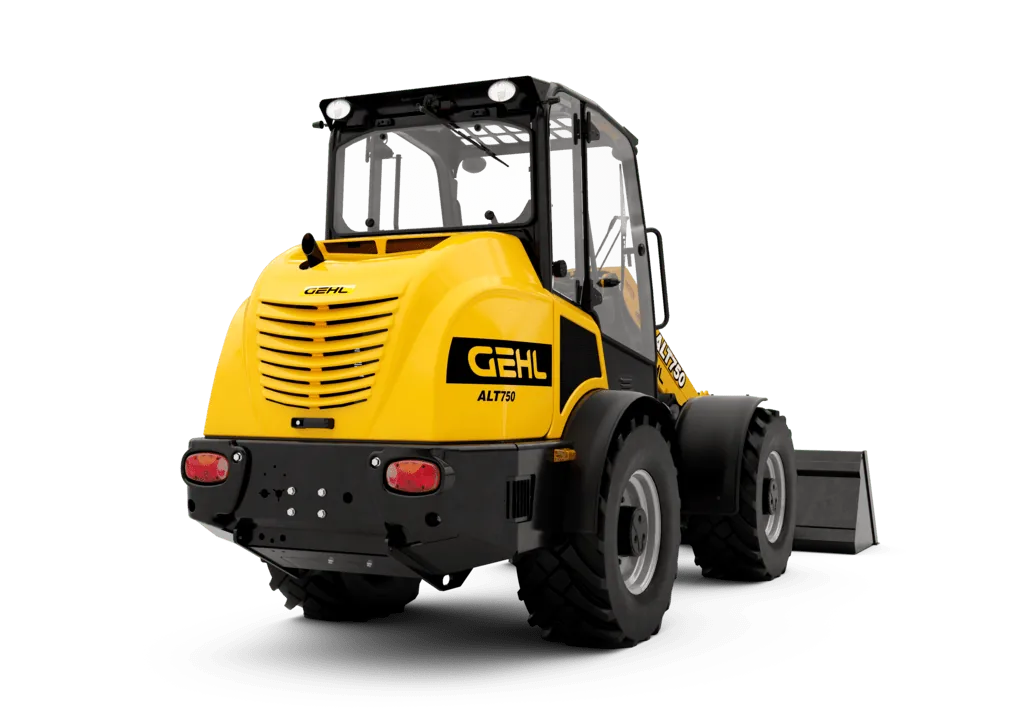

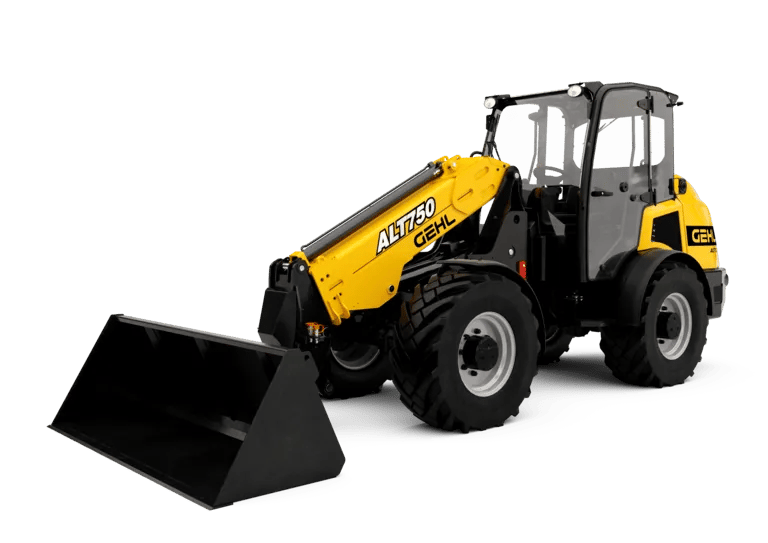

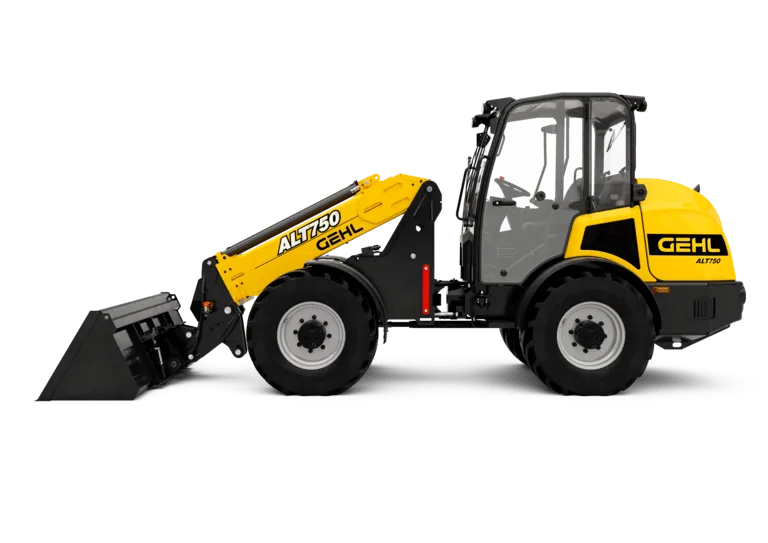

Product views

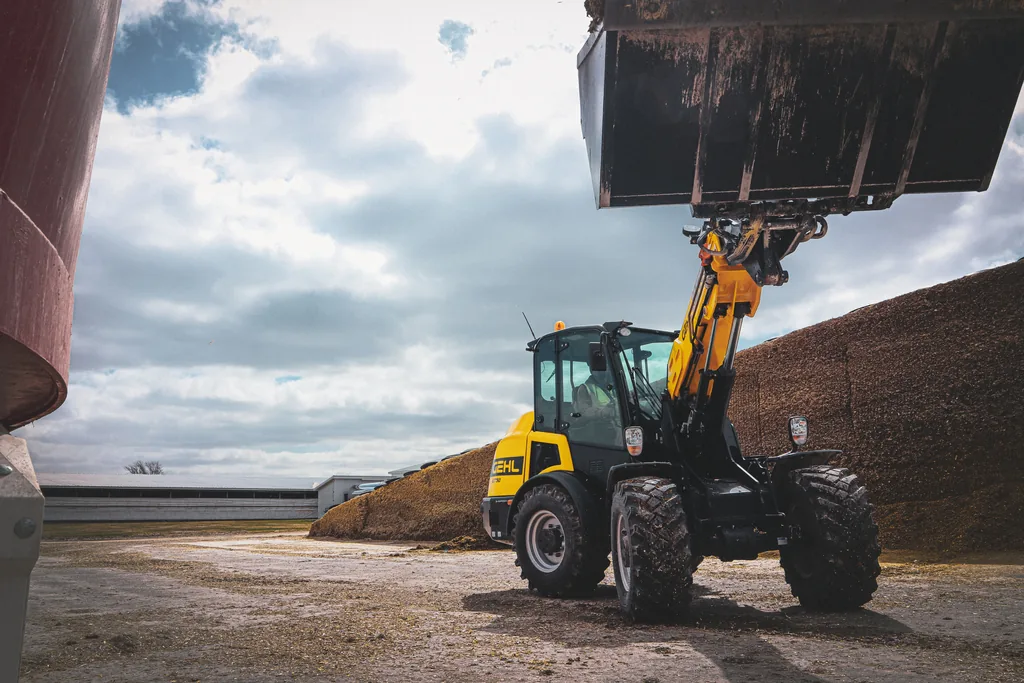

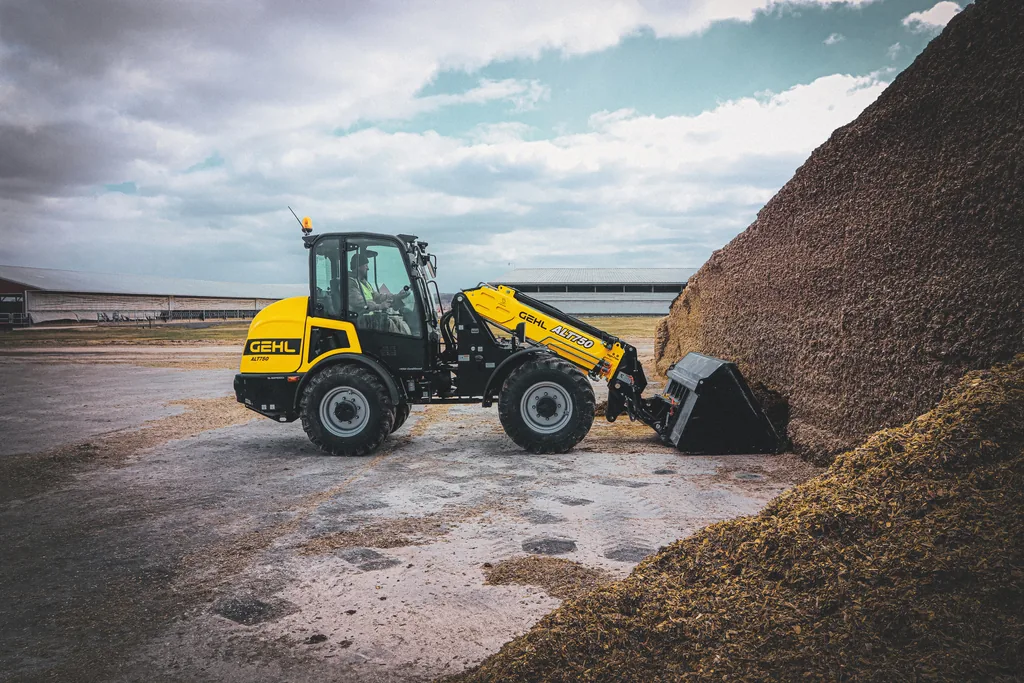

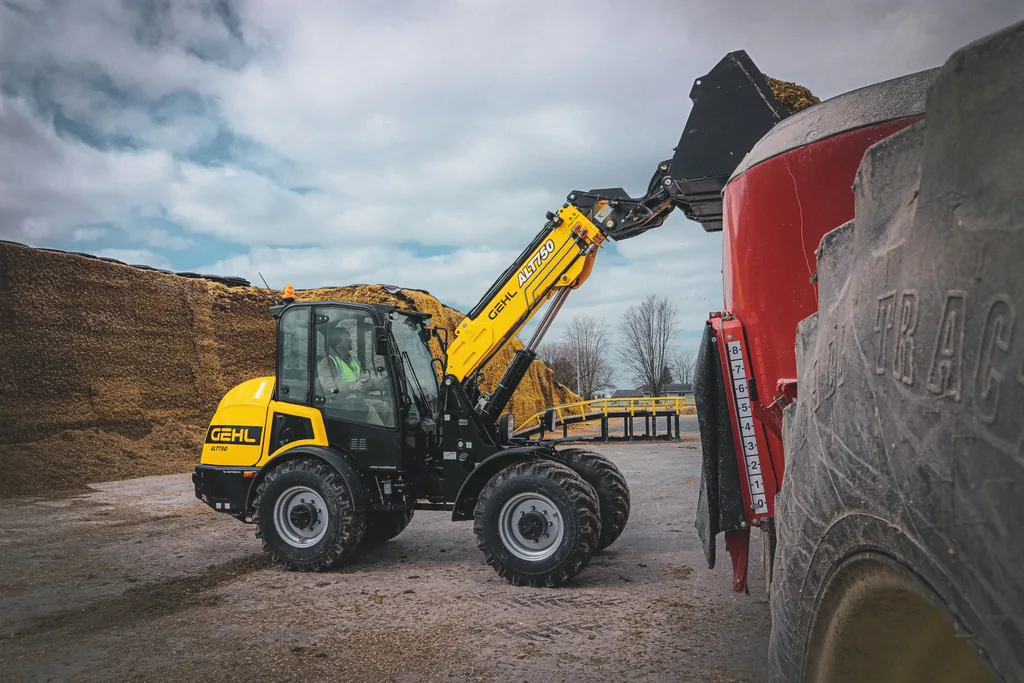

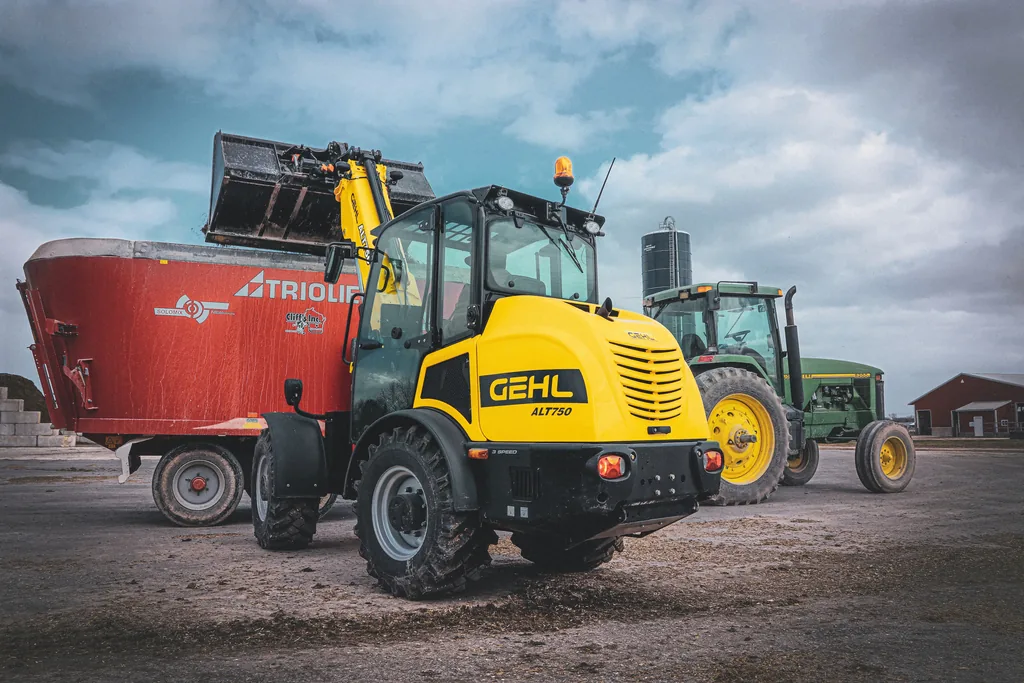

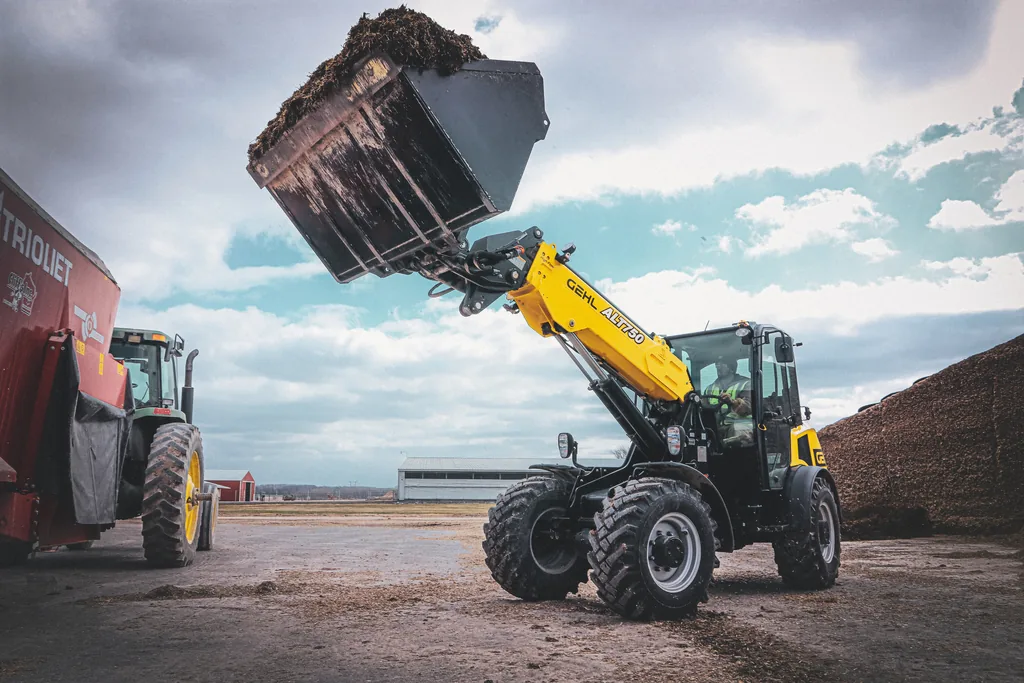

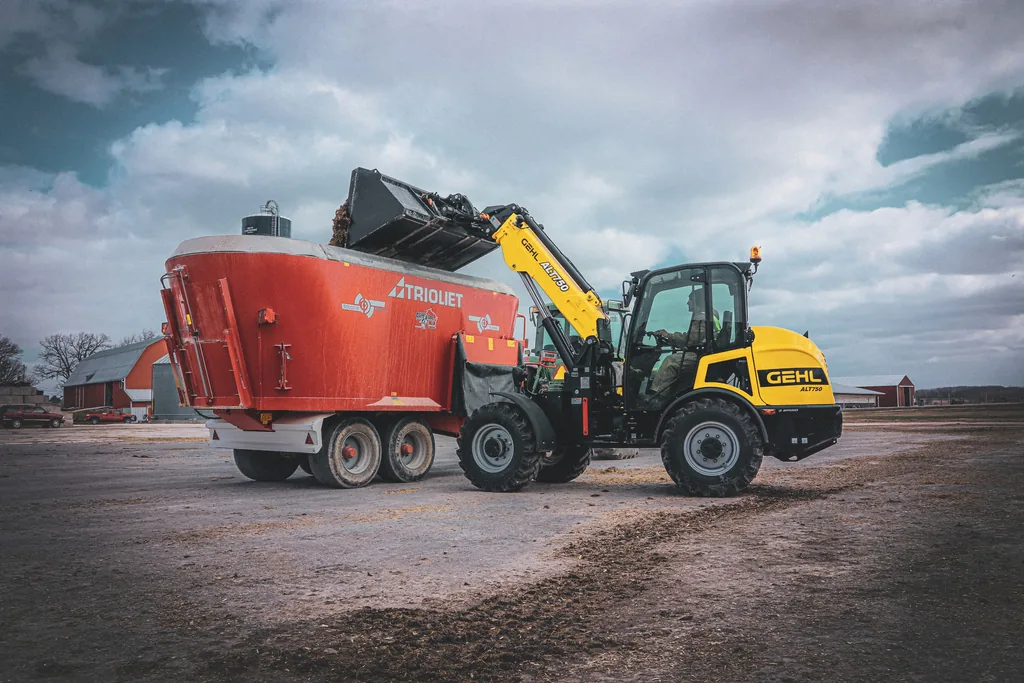

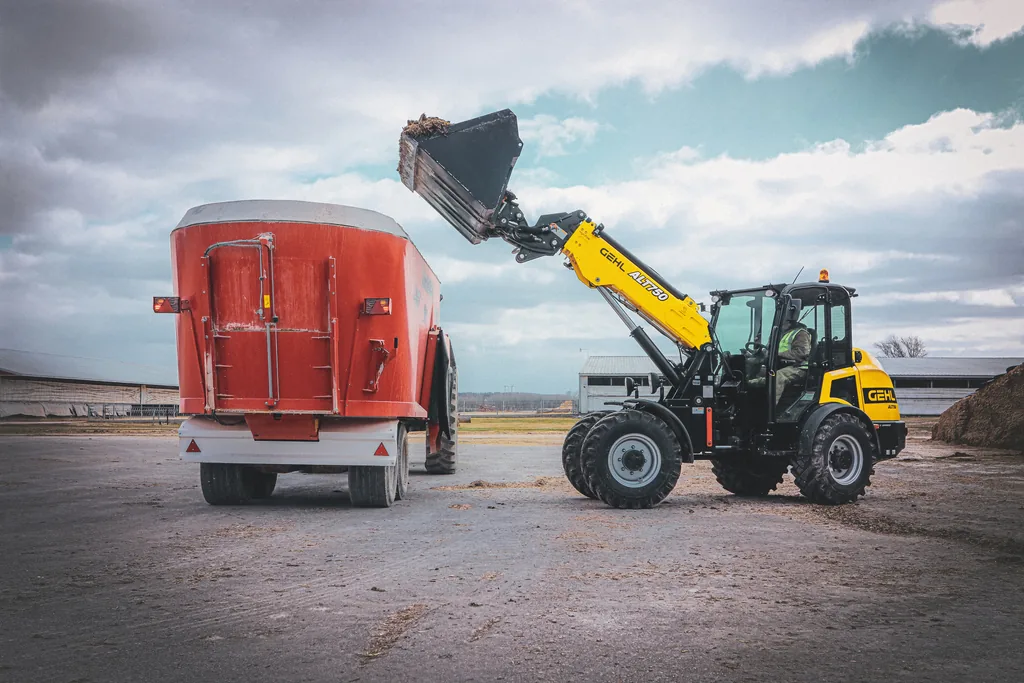

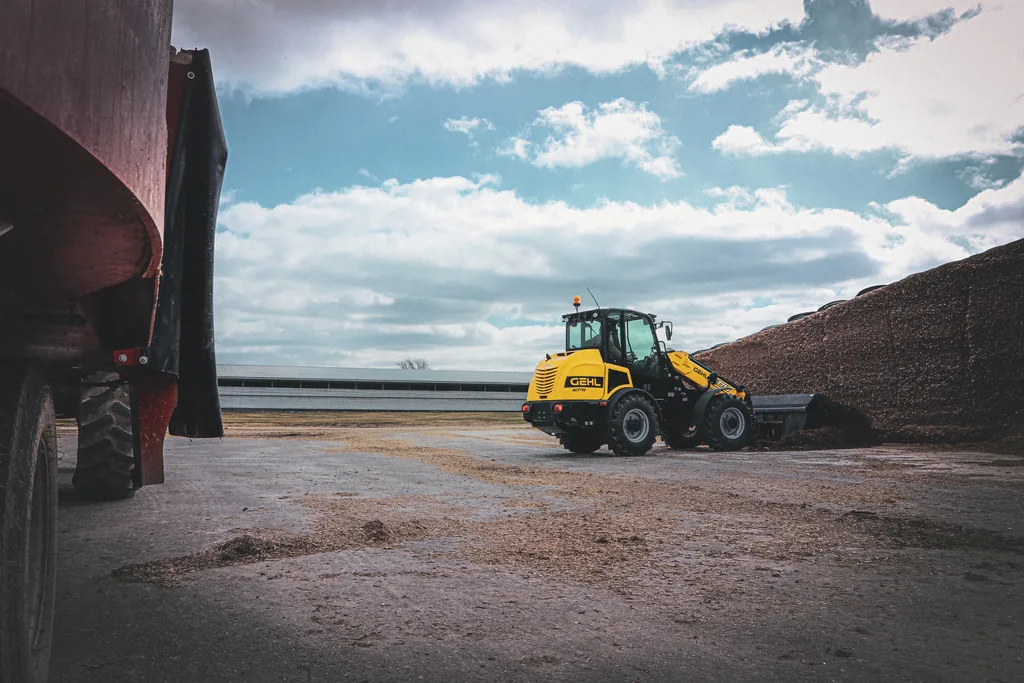

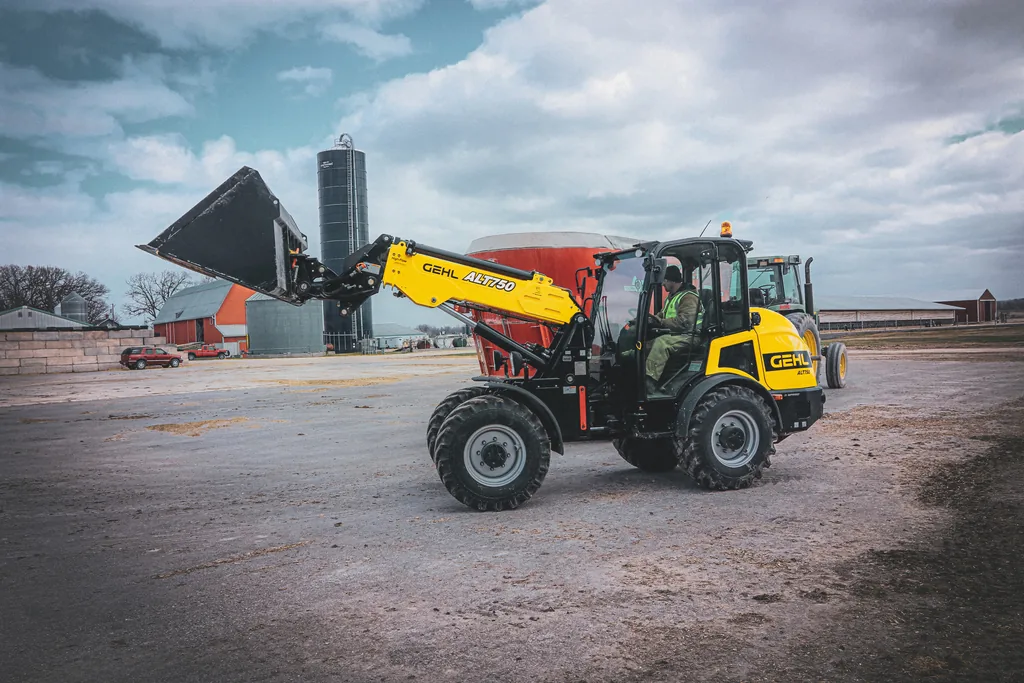

On the job
Gehl / Articulated Loader
ALT750
15 ft 11 in
Max Lift Height
10 ft 10 in
Max Outreach
74.30 Hp
55 kW
Engine Power
12300
lb
Operating Weight
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl ALT750? We'll send it with your quote.
15 ft 11 in
Max Lift Height
10 ft 10 in
Max Outreach
Features
Standard Features
- 12Volt Power Port
- Adjustable and telescopic steering column
- Adjustable arm rests
- Adjustable Seat 5-Way
- Articulation Locking Bar
- Cup Holder
- Differential Lock
- Electronic Hand Throttle
- Front and Rear - Work Lights
- Inching Pedal
- Lift Tilt Electronic Lockout Switch
- Master electrical disconnect switch
- Multi-Function Display Screen
- Oscillating Front Frame
- Power-A-Tach® Attachment Mounting System
- Proportional Auxiliary Hydraulics w/ Case Drain & Circuit Pressure Dump
- Removable Rubber Floormat
- Reverse and Brake Tail Lights
- Side View Mirrors
Optional Features
- 12Volt Power Port
- 3-inch Seatbelt
- Strobe Light
- Adaptive air suspension heated fabric seat - With electric lumbar adjustment - GRAMMER
- Additional Set of Front Auxiliary Hydraulics
- Back-Up Alarm
- Cabin with Heat
- Cabin with Heat and Air Conditioning
- Speed control
- Hydraglide™ Ride Control
- LED Work Lights
Specifications
- Static tipping load with bucket (straight): 7714 lb
- Static tipping load with bucket (full turn): 4012 lb
- Max. payload with forks as per EN 474-3 (80%): 3527 lb
- Max. height of bucket pivot point: 16 ft 6 in
- Max. lifting height (below forks): 15 ft 11 in
- Maximum outreach: 10 ft 10 in
- Breakout force with bucket: 4990 daN
- Static tipping load with bucket (retracted): 7714 lb
- Static tipping load with bucket (extended): 4012 lb
- Bucket hinge pin height (retracted): 154 in
- Bucket hinge pin height (extended): 198 in
- Unladen weight (with forks) with 4-post canopy: 12300 lb
- Overall cab width: 4 ft 2 in
- Overall height with 4 posts canopy: 8 ft 2 in
- Articulation angle: 40 °
- Overall width less bucket: 6 ft 5 in
- Overall length - Less Bucket: 18 ft 10 in
- Standard tires: 405/70-20
- Ground clearance: 1 ft
- Brand / model: Deutz TD 3.6 L4
- Emissions norm: Stage IIIB
- Number of cylinders: 4
- Power: 74.30 Hp / 55 kW
- Max. torque / Engine rotation: 243 ft/lbs / 2300 rpm
- Engine cooling system: 2 radiators water + hydraulic oil
- Transmission type: Hydrostatic
- Number of gears (forward / reverse): 2 / 2
- Max. travel speed (may vary according to applicable regulations): 19 mph
- Travel speed (laden): 12 mph
- Differential lock: Front and rear locking of the machine
- Parking brake: Manual
- Hydraulic pump type: Gear pump
- Hydraulic flow - Pressure: 18 US gpm / 2901 PSI
- High-Flow Option (l/min): 29 US gpm
- Drive hydraulic system pressure: 5511 PSI
- Hydraulic oil: 19 US gal
- Fuel: 30 US gal
- Vibration on hands/arms: < 8 ft/s²
- Cab certification: ROPS - FOPS cab (level 1)
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl ALT750 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Frequently asked questions
The frame pivots in the middle, so all four wheels stay planted and it turns tight without scuffing finished surfaces - great for yards, livestock and landscaping where a smooth ride and traction matter.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
