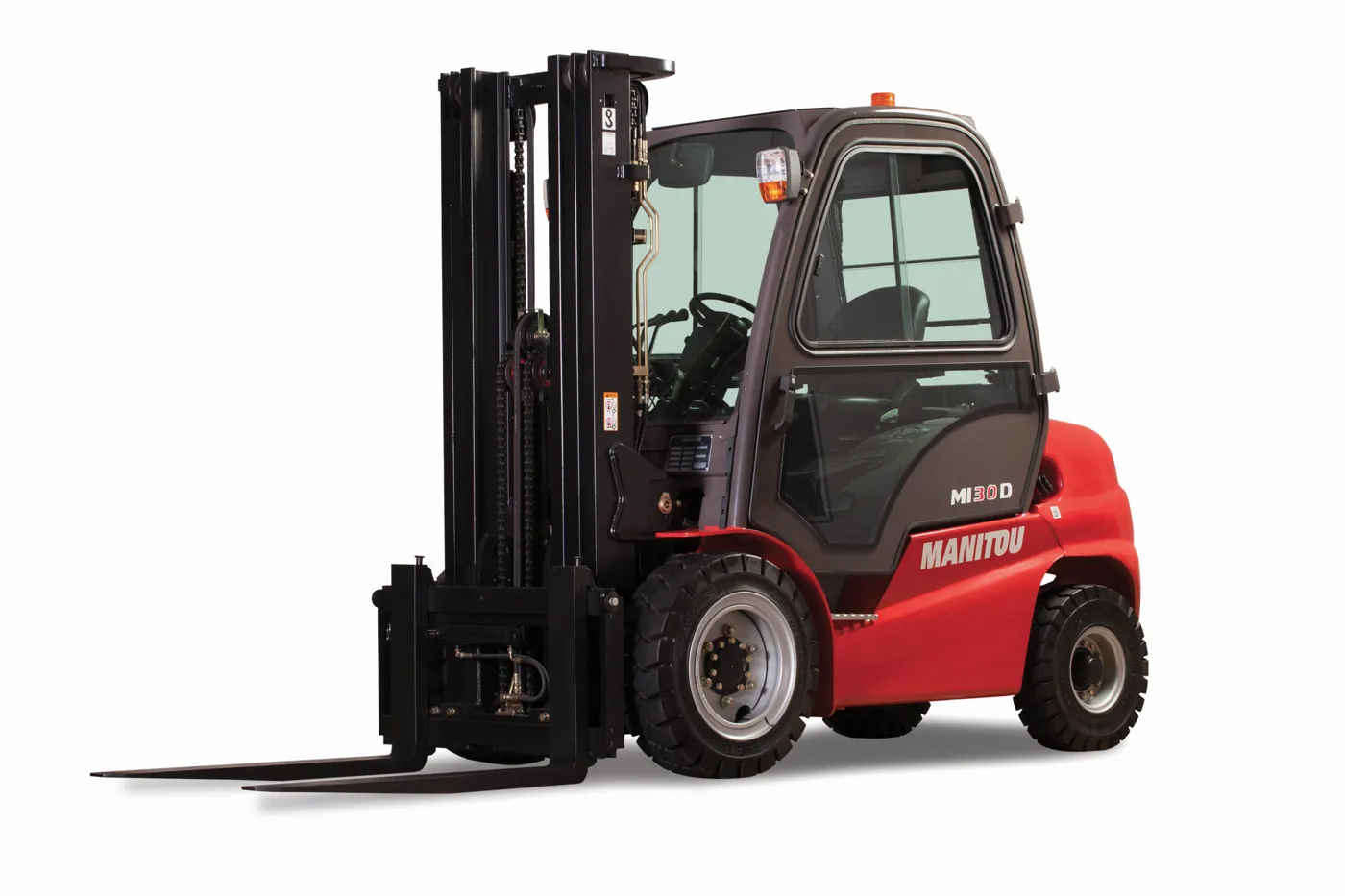

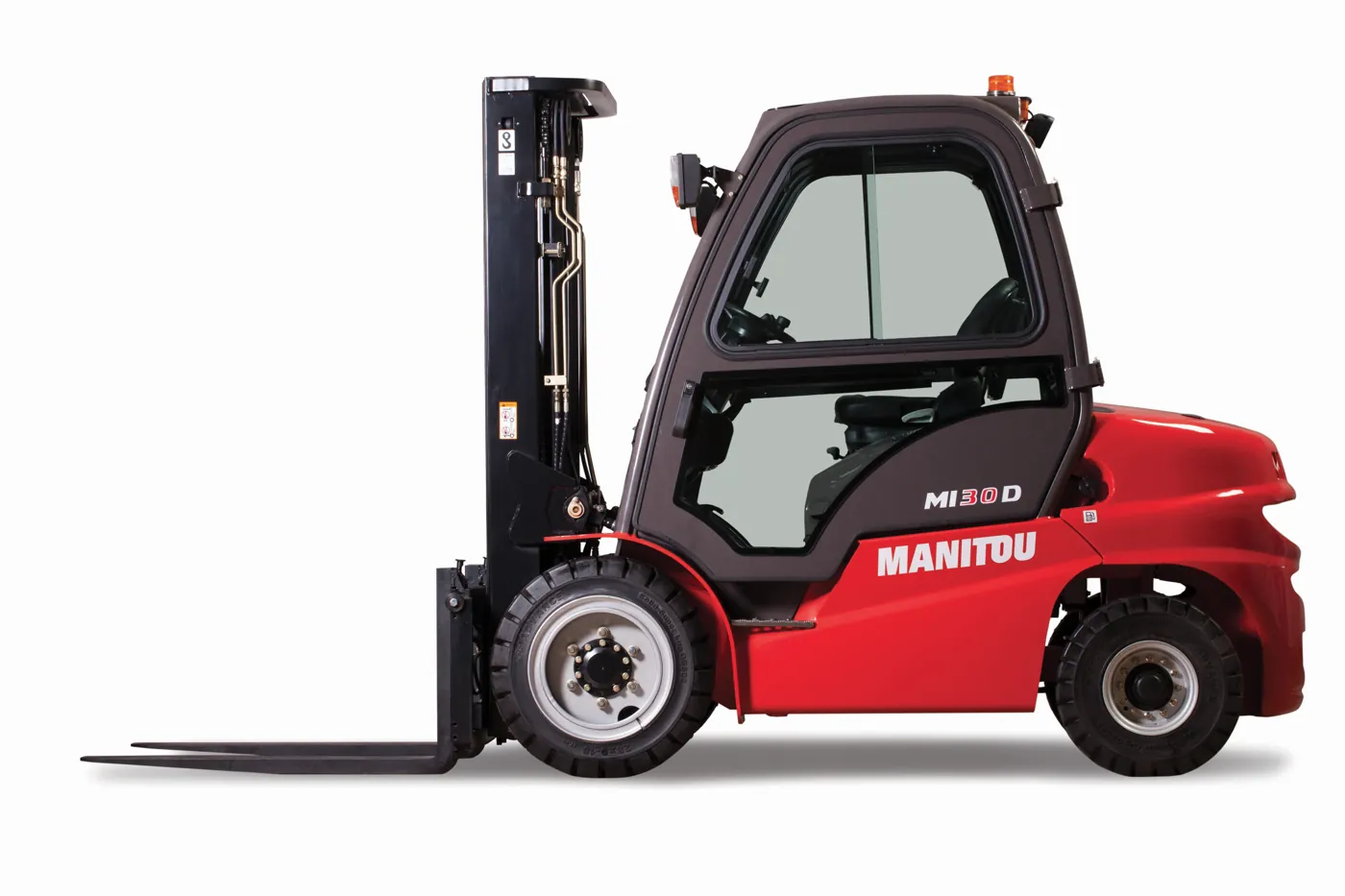

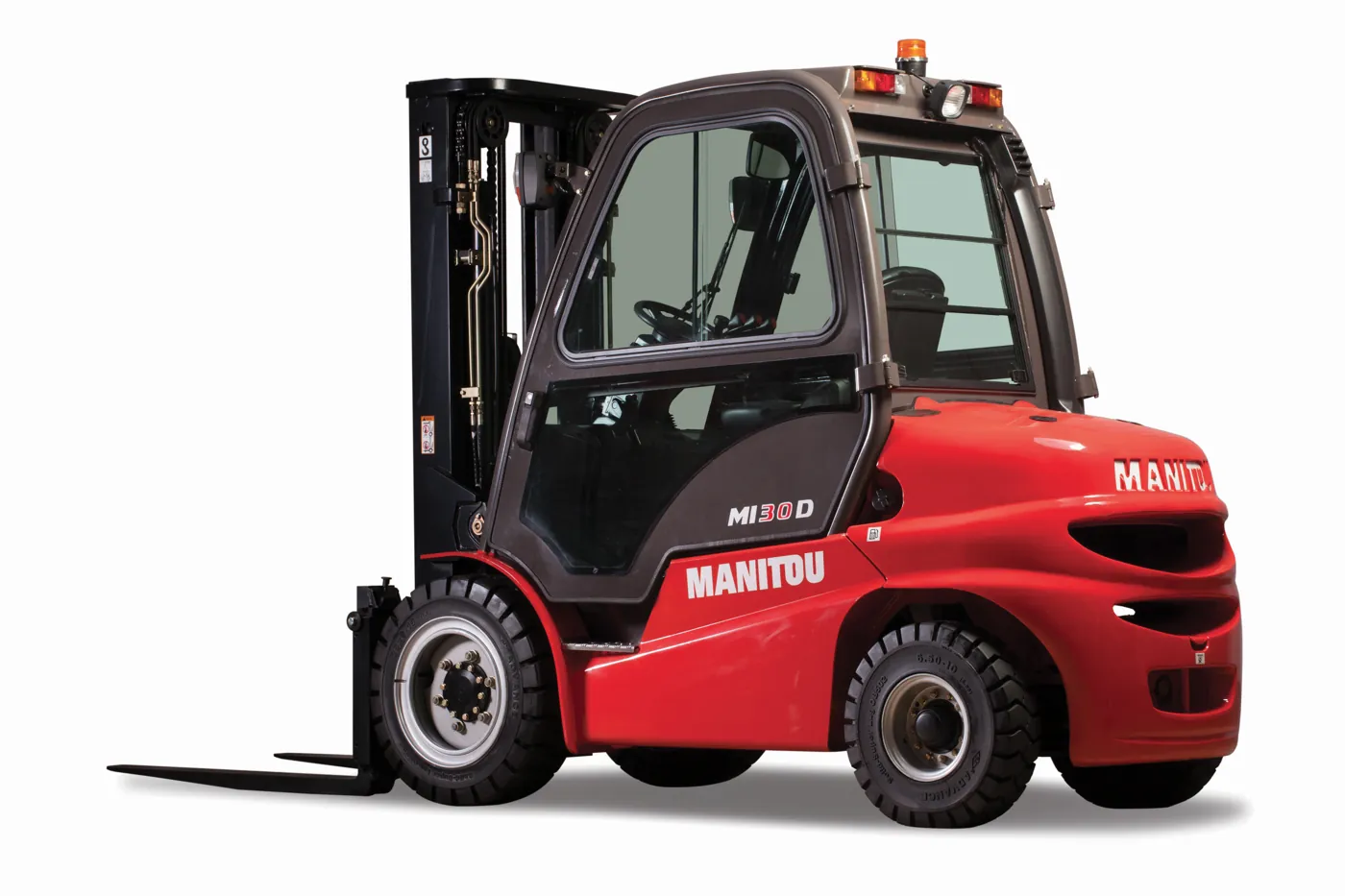

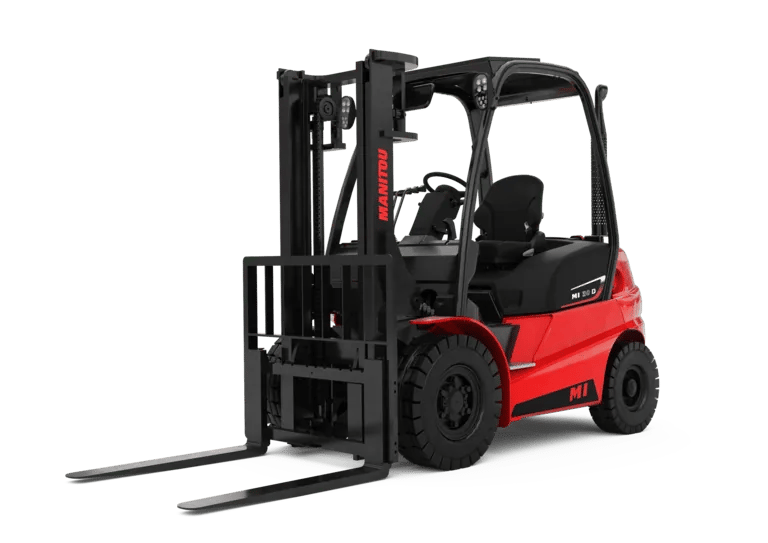

The Manitou MI 30 D is the bigger diesel forklift in the MI line, rated at 6,614 lb for heavier outdoor loads. When the MI 25 D runs a little short on capacity, this is the one we'd move you up to.
MI 30 D
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Manitou MI 30 D? We'll send it with your quote.
Specifications
- Manufacturer: MANITOU
- Model Name: MI 30 D ST5 US
- Power source: Diesel
- Operator type: Seated
- Max. capacity: 6614 lb
- Load center of gravity: 20 in
- Load distance, centre of drive axle to fork: 19 in
- Wheelbase: 67 in
- Service weight: 10163 lb
- Weight on front axle (laden) / rear axle (laden): 14661 lb / 2116 lb
- Weight on front axle (Unladen) / rear axle (Unladen): 4101 lb / 6063 lb
- Tires type: Solid tires
- Dimensions of front wheels: 28-9-15 12
- Dimensions of rear wheels: 6.50-10 10
- Number of front wheels / rear wheels: 2 / 2
- Number of drive wheels: 2
- Front wheel gauge: 40 in
- Rear wheel gauge: 38 in
- Seat height/stand height: 48 in
- Height of overhead guard (cabin): 84 in
- Height of towing bar (coupling height): 14 in
- Overall length: 152 in
- Length to face of forks: 107 in
- Overall width: 48 in
- Overall width - Single wheels: 48 in
- Overall width - Twinned wheels: 68 in
- Forks section / width / length: 2 in x 5 in x 45 in
- Fork carriage ISO 2328 (class/form) A/B: 3A
- Fork carriage width: 43 in
- Ground clearance below mast: 5 in
- Ground clearance at centre of wheelbase: 8 in
- Aisle Width for pallets 1000 x 1200 crossways: 163 in
- Aisle width for 800 x 1200 pallet lengthways: 171 in
- Turning radius: 97 in
- Internal turning radius (over tyres): 6 in
- Travel speed (laden / unladen): 11 mph-11 mph
- Lifting speed (laden / unladen): 2 ft/s-2 ft/s
- Lowering speed (laden / unladen): 1 ft/s-2 ft/s
- Drawbar pull (Laden / Unladen): 1950 daN / 1380 daN
- Gradeability (laden / unladen): 20 % / 20 %
- Service brake: Hydraulic
- Engine brand / model / norm: Kubota / V2607-CR-E5B / Stage V
- Engine power (Hp / kW): 51 Hp/37.40 kW
- Rated speed: 2400 Hz
- Number of cylinders / Capacity of cylinders: 4 - 160 in³
- Working hydraulic pressure for attachments: 2321 PSI
- Oil flow rate for attachments: 9 US gpm
- Measured/guaranteed mean noise level at the ear of the operator: < 84 dB
