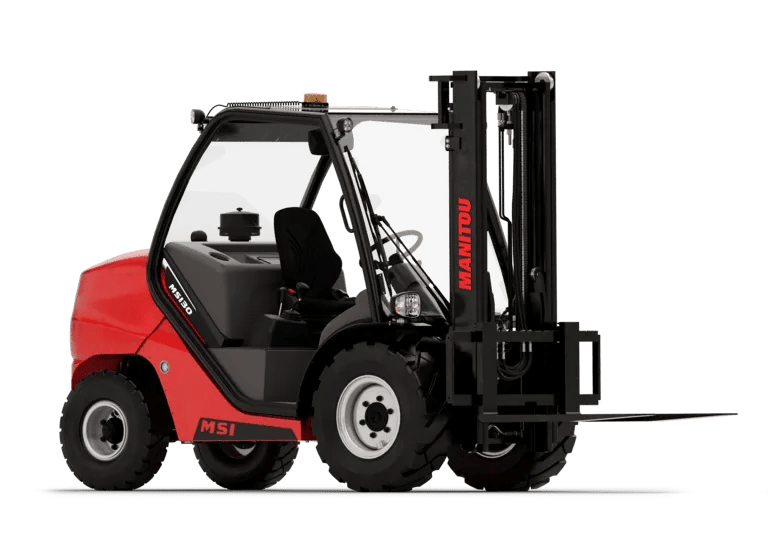

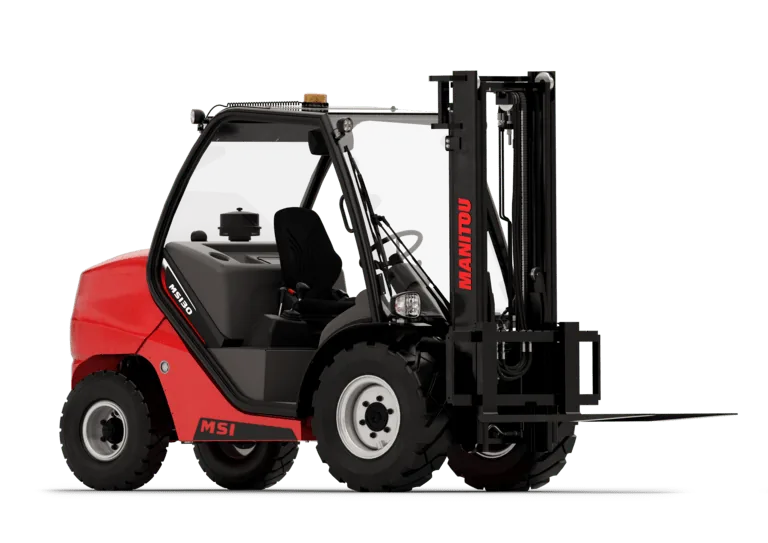

The Manitou MSI 30 is a semi-industrial forklift rated at 6,614 lb, a middle ground between a smooth-yard industrial truck and a full rough-terrain machine. It's a solid all-rounder for mixed sites that see both paved and unpaved ground.
Product views
Manitou / Forklift
MSI 30
6614
lb
Max Capacity
50 Hp
37 kW
Engine Power
9700
lb
Operating Weight
Diesel
Power Source
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Manitou MSI 30? We'll send it with your quote.
6614
lb
Max Capacity
Specifications
- Manufacturer: Manitou
- Model Name: MSI 30 ST5
- Power source: Diesel
- Operator type: Seated
- Max. capacity: 6614 lb
- Load center of gravity: 20 in
- Load distance, centre of drive axle to fork: 25 in
- Wheelbase: 75 in
- Standard mast reference of the machine: FVD 33
- Service weight: 9700 lb
- Weight on front axle (laden) / rear axle (laden): 14462 lb / 1852 lb
- Weight on front axle (Unladen) / rear axle (Unladen): 3660 lb / 6041 lb
- Tires type: Pneumatic
- Dimensions of front wheels: 300-15/18 6T P43
- Dimensions of rear wheels: 7.00-12/12 ED PLUS
- Number of front wheels / rear wheels: 2 / 2
- Number of drive wheels: 2
- Front wheel gauge: 41 in
- Rear wheel gauge: 44 in
- Seat height/stand height: 38 in
- Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 82 in / 76 in
- Overall length: 167 in
- Length to face of forks: 119 in
- Overall width: 52 in
- Forks section / width / length: 2 in x 4 in x 47 in
- Fork carriage ISO 2328 (class/form) A/B: 3A
- Fork carriage width: 50 in
- Ground clearance below mast: 10 in
- Ground clearance at centre of wheelbase: 9 in
- Aisle Width for pallets 1000 x 1200 crossways: 184 in
- Turning radius: 104 in
- Travel speed (laden / unladen): 13 mph-13 mph
- Lifting speed (laden / unladen): 2 ft/s-2 ft/s
- Lowering speed (laden / unladen): 2 ft/s-0.98 ft/s
- Drawbar pull (Laden): 1900 daN
- Gradeability (laden): 27 %
- Service brake: Hydraulic brakes by loss of pressure
- Transmission type: Hydrostatic
- Engine brand / model / norm: Kubota / D1803 CRT E5B / Stage V
- Engine power (Hp / kW): 50 Hp/37 kW
- Rated speed: 2700 rpm
- Number of cylinders / Capacity of cylinders: 3 - 111 in³
- Type of drive control: Electronic
- Working hydraulic pressure for attachments: 3191 PSI
- Oil flow rate for attachments: 12 US gpm
- Sound level at the driver's ear according to DIN 12 053: 81 dB
Comparing options?
See how the Manitou MSI 30 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Frequently asked questions
Electric is best indoors and where clean air and low noise matter; diesel and gas suit outdoor, rough-terrain and heavy-duty yards. Our diesel vs electric guide covers the trade-offs, and we'll match capacity and mast to your lift height and door clearance.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Manitou factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: rates from 1.99% through June 30, 2026. Ask about 1.99% for 24 months, then 2.99%/36, 3.99%/48, 4.99%/60, or 5.49%/72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Factory-backed sales, parts and warranty - right here in Laddonia, MO.
Service & parts in house
We support what we sell. No shipping your machine across the country for warranty work or parts.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
