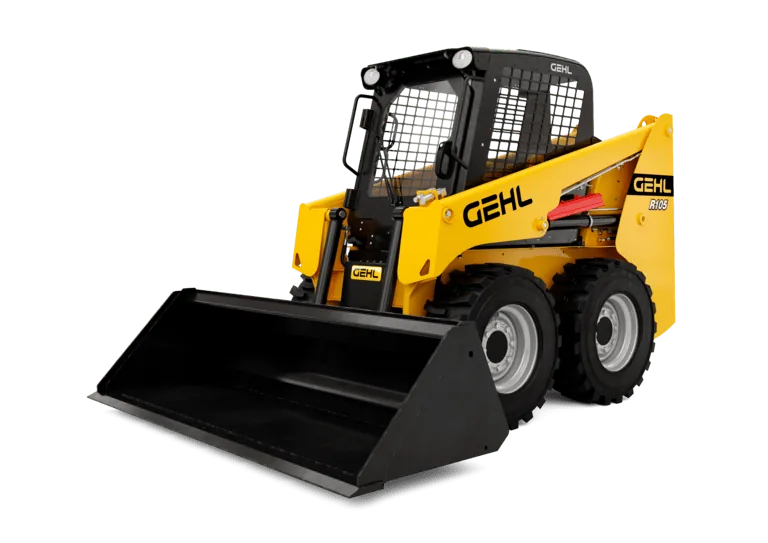

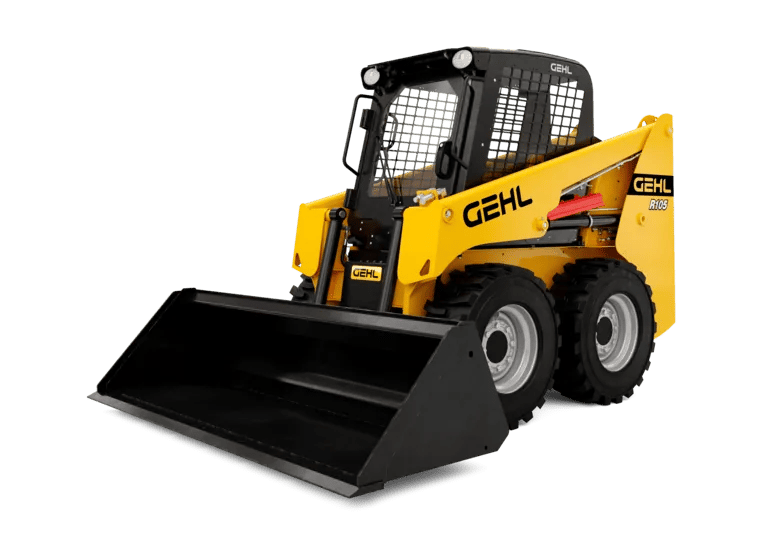

The Gehl R105 is the smallest radial-lift skid loader we carry, with a 1,050 lb operating capacity and a 34 hp Tier 4 Final Yanmar diesel. It's a tight, nimble machine for landscapers and small contractors who need to get into spots a bigger loader can't.

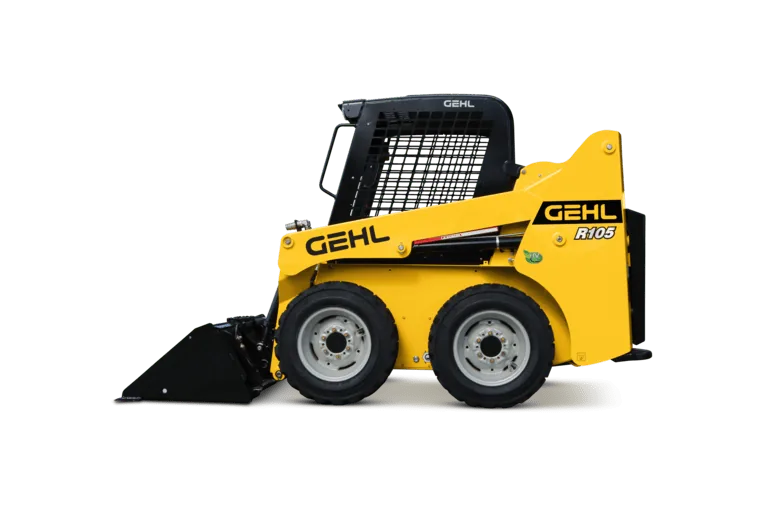

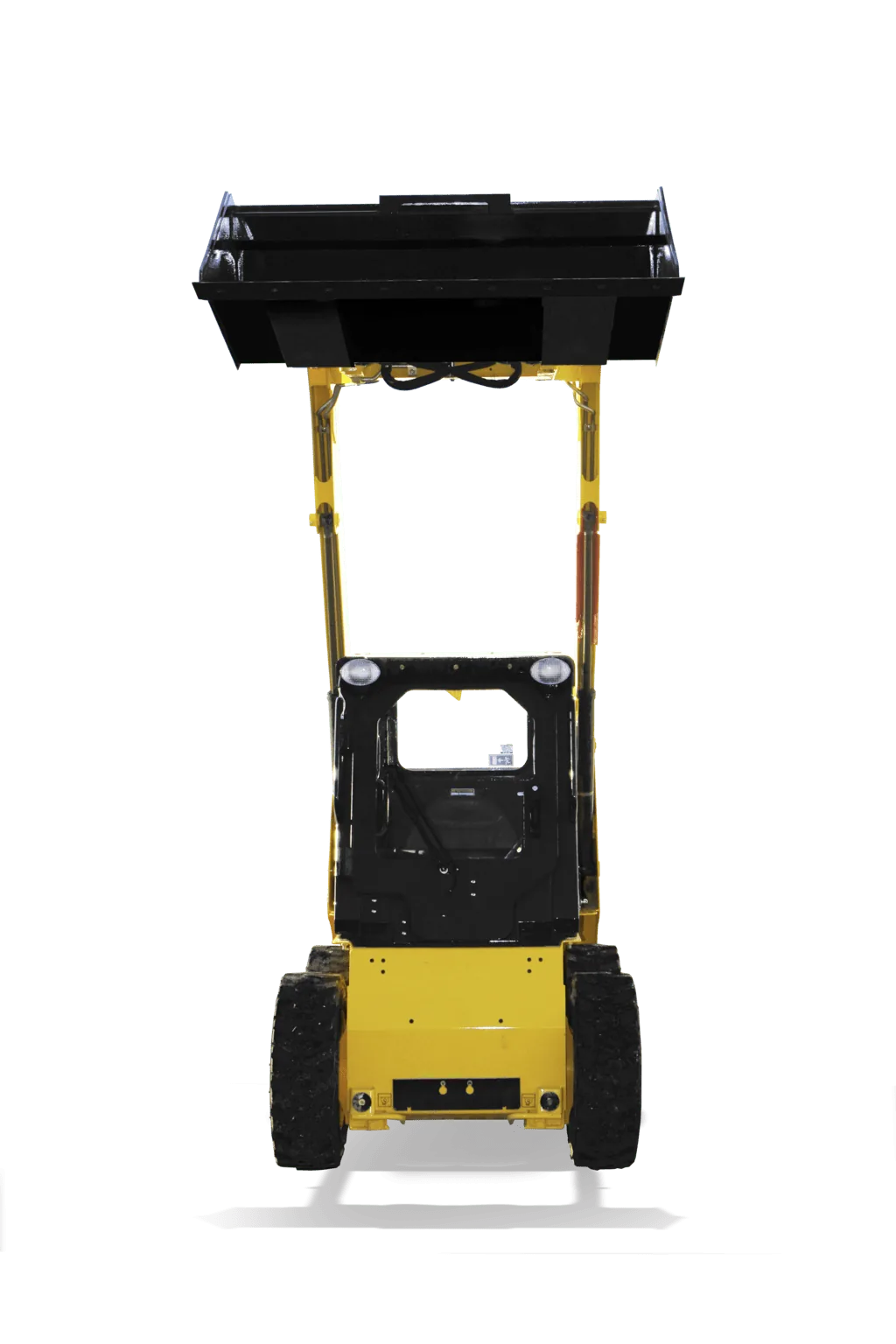

Product views

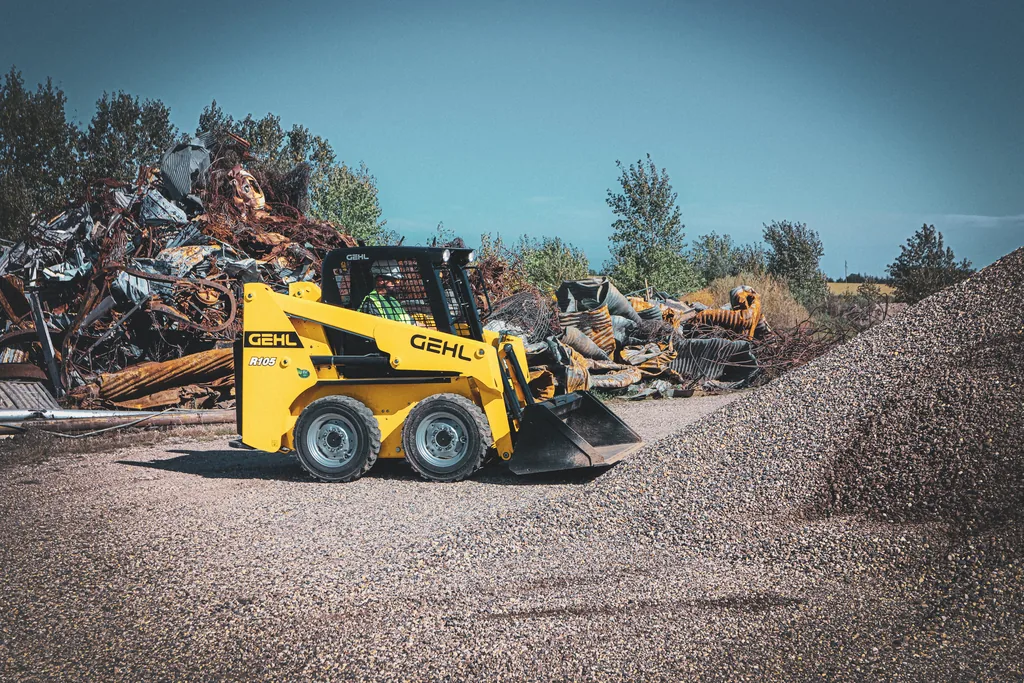

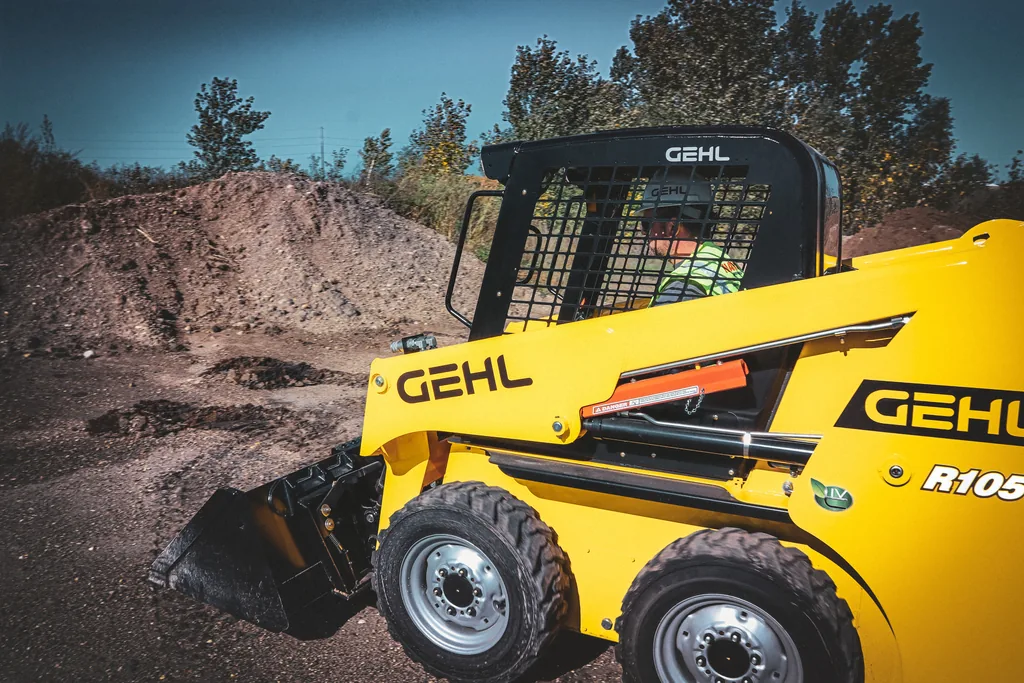

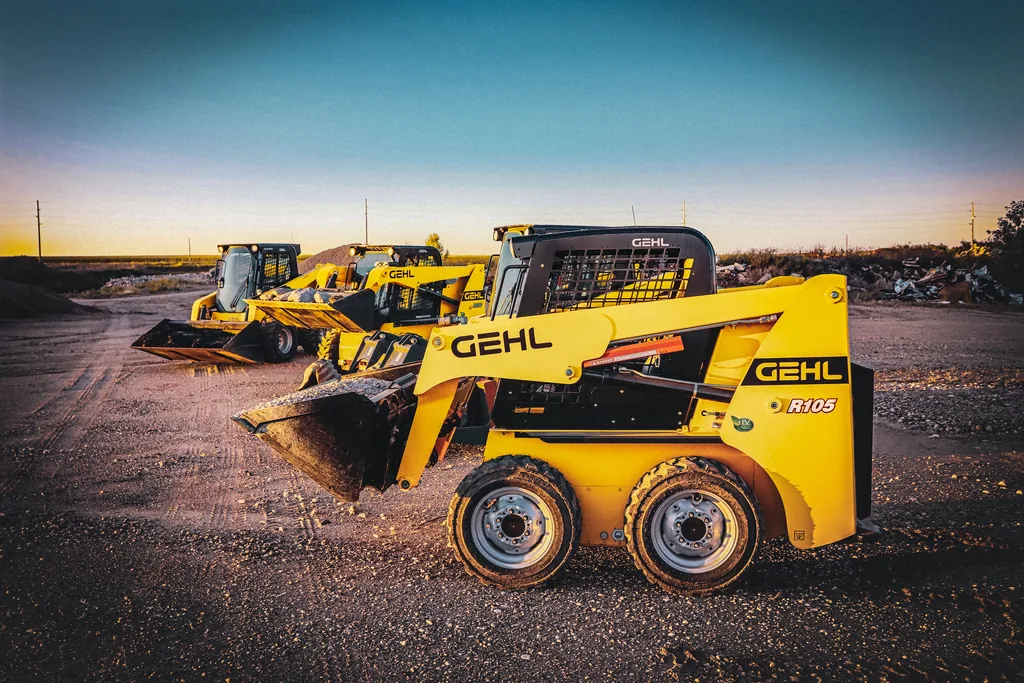

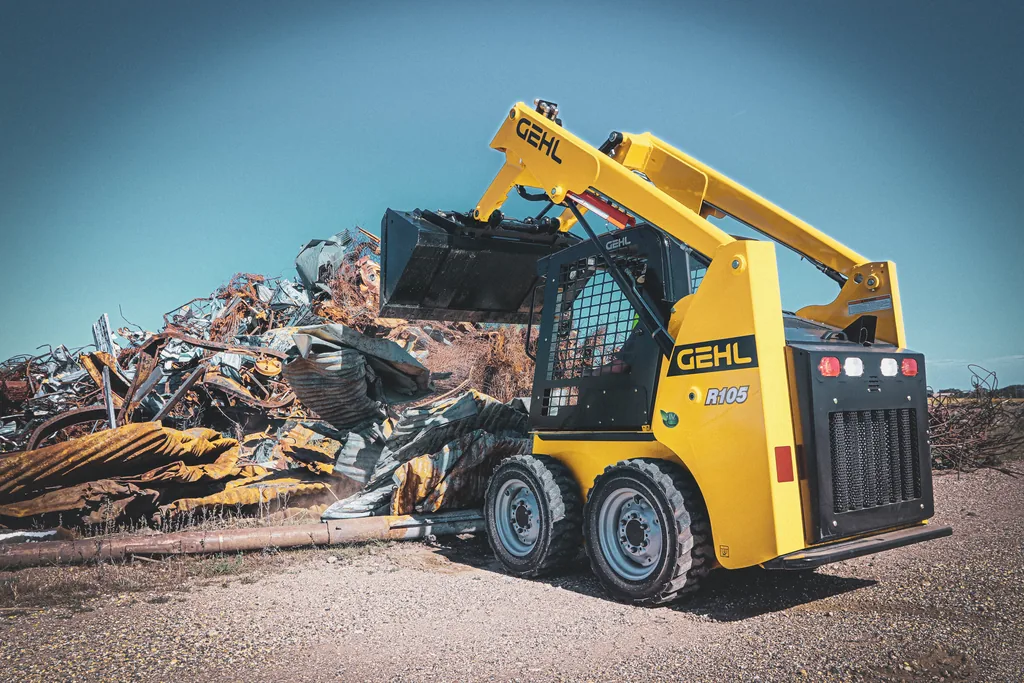

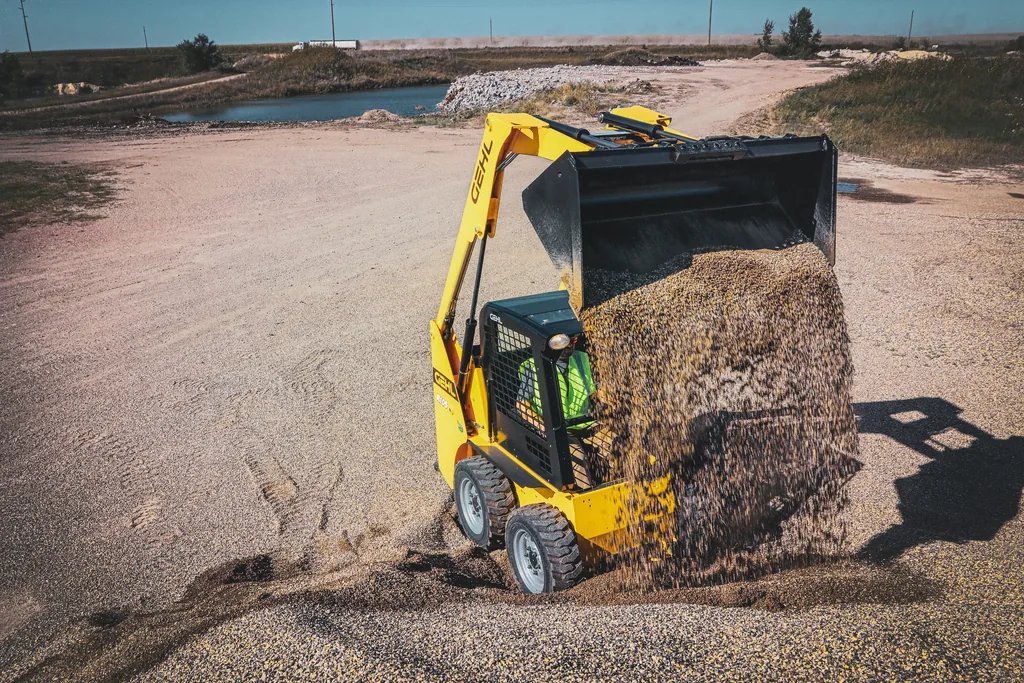

On the job
Gehl / Skid Loader
R105
1050
lb
Rated Operating Capacity
34.20 Hp
23.70 kW
Engine Power
4200
lb
Operating Weight
Diesel
Power Source
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl R105? We'll send it with your quote.
1050
lb
Rated Operating Capacity
Features
Standard Features
- 12Volt Power Port
- Adjustable 2-inch Seat Belt
- Anti-Vandalism Lock Provisions
- Back-Up Alarm
- Front and Rear - Work Lights
- Hand/Foot Controls
- High-Back Adjustable Seat
- Lift Arm Support Device
- Operator Restraint Bar
- Servo-Controlled Hydrostatic Drive
- T-Bar Controls
- Battery charge indicator lamp
- Hour meter
- Hydraloc™ Safety System
- All-Tach® Attachment Mounting System
- ROPS/FOPS Level II Overhead Guard
Optional Features
- 3-inch Seatbelt
- Automatic engine shutdown
- Battery Disconnect
- Heat & Defrost
- Radio
- Rear view mirror
- Rotating Beacon
- Swing-out Cab Door
- Simplified lift system
- Selectable Self-Leveling Hydraulic Lift Action 4
- Counterweight
- Air suspension seat
- Horn
- Engine Block Heater
Specifications
- Operating Capacity At 50% Tipping Load: 1050 lb
- Rated Operating Capacity with Optional Counterweight: 1175 lb
- Operating Weight: 4200 lb
- Unladen weight: 3699 lb
- Tipping capacity: 2100 lb
- Wheelbase: 34 in
- Overall Operating Height - Fully Raised: 142 in
- Height to Hinge Pin - Fully Raised: 108 in
- Overall Height to top of ROPS: 70 in
- Dump angle at full height: 40 °
- Dump height: 82 in
- Overall length with bucket: 118 in
- Dump reach - Full height: 25 in
- Rollback at ground: 31 °
- Seat to ground height: 33 in
- Overall width less bucket: 48 in
- Bucket Width: 54 in
- Ground clearance: 6 in
- Overall length - Less Bucket: 89 in
- Clearance Radius - Front with Bucket: 72 in
- Rear departure angle: 22 °
- Travel speed (unladen): 5 mph
- Standard tires: 27 x 8.5 x 15 HD
- Brand / model: Yanmar 3TNV88C-KMSV
- Emissions norm: Stage V, Tier 4 final
- Max. torque / Engine rotation: 81 ft/lbs / 1820 rpm
- Power source: Diesel
- Power: 34.20 Hp / 23.70 kW
- Battery voltage: 12 V
- Starter: 2.30 kW
- Standard flow - Auxiliary hydraulics: 15 US gpm
- Fuel: 10 US gal
- Hydraulic tank capacity: 8 US gal
- Displacement: 0.43 US gal
- Noise to environment (LwA): 101 dB
- Whole-Body Vibration (ISO 2631-1): 4 ft/s²
- Vibration on hands/arms: < 6 ft/s²
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl R105 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Buyer's guides for this machine
Frequently asked questions
Radial-lift arms shine at digging, grading and ground-level work; vertical-lift arms keep the load tucked in and reach higher, which is better for loading trucks and stacking. Our radial vs vertical guide breaks it down, or tell us the job and we'll point you to the right machine.
It's the safe working load - for a skid steer, typically 50% of the tipping load (SAE). It's the number to size by for everyday work; match it to your heaviest regular lift rather than just buying the biggest.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: 0% financing for 48 months through June 30, 2026. Ask about 0% for 48 months, 1.99% for 60, or 2.99% for 72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Factory-backed sales, parts and warranty - right here in Laddonia, MO.
Service & parts in house
We support what we sell. No shipping your machine across the country for warranty work or parts.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
