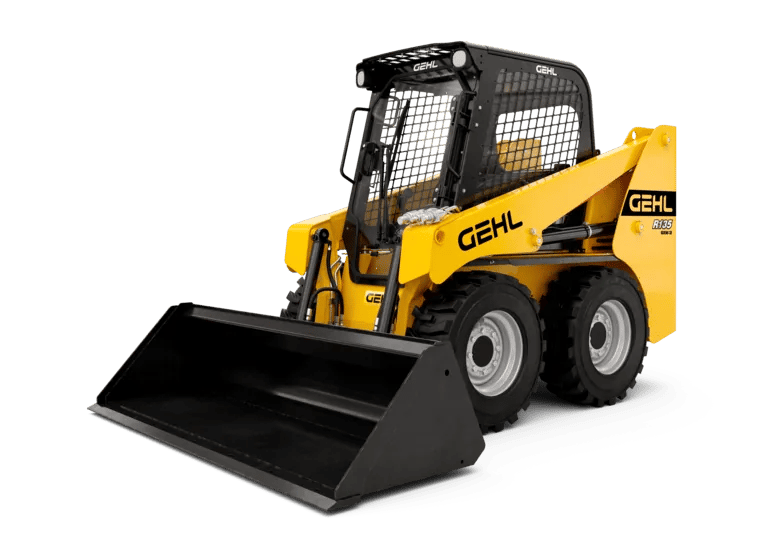

The Gehl R135 GEN:2 steps up to a 1,350 lb operating capacity on a radial-lift arm, still compact enough for tight job sites. If the R105 is a touch light for your work, this is the next size up we'd point you to.

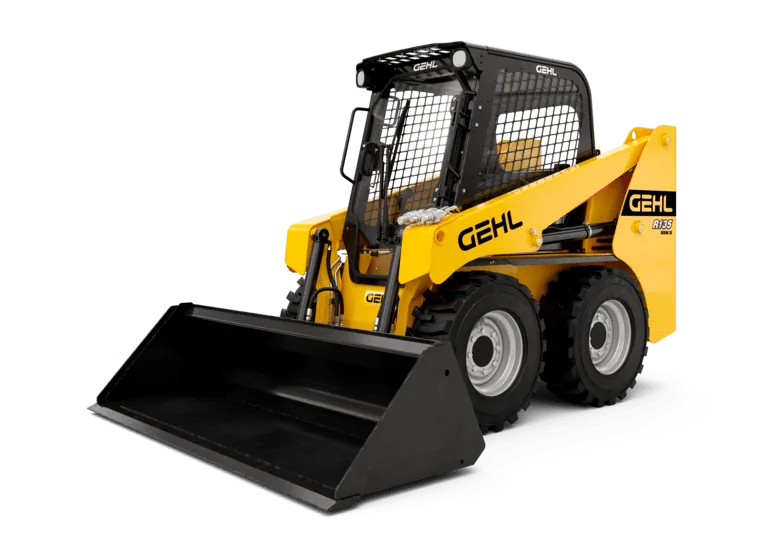

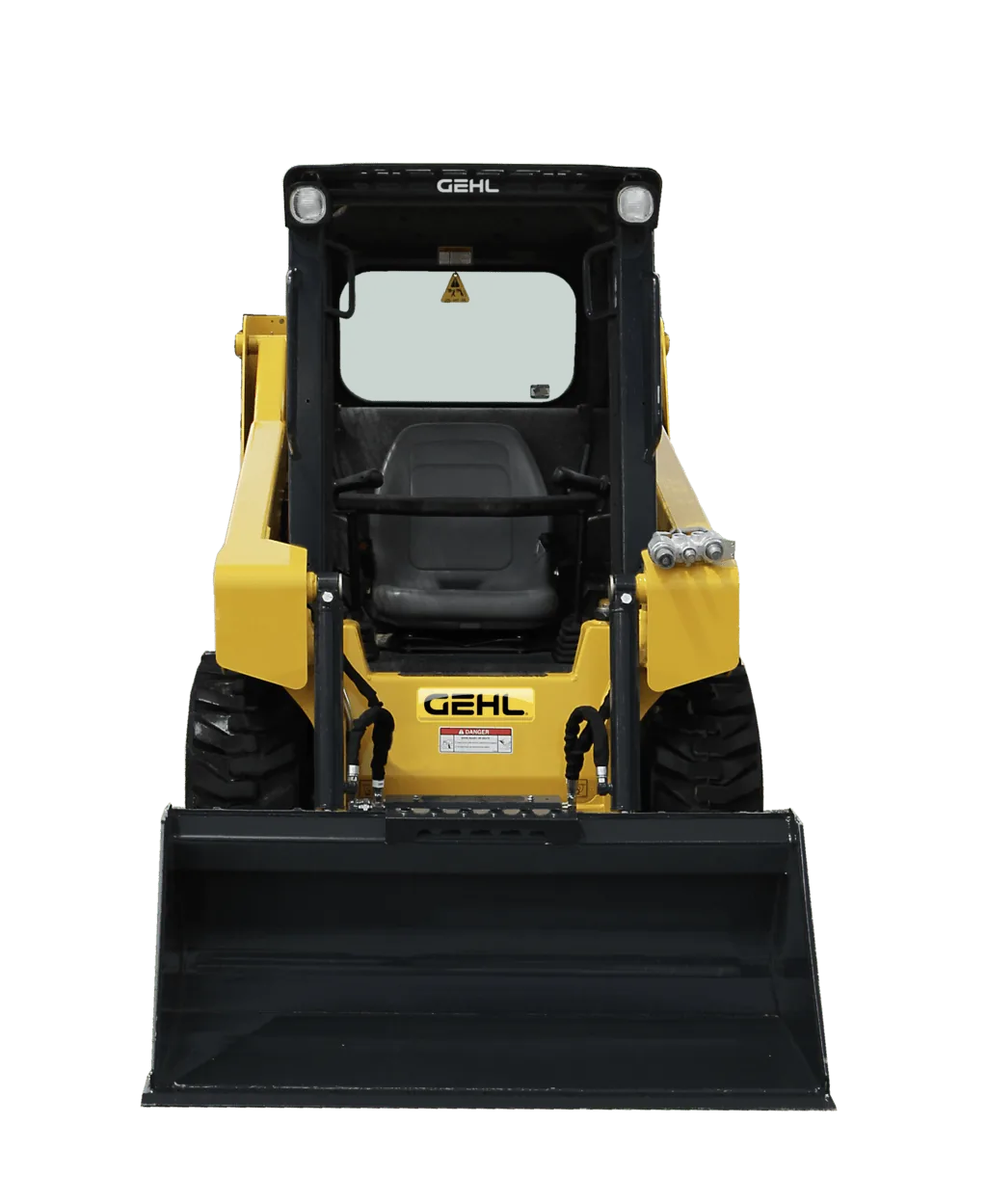

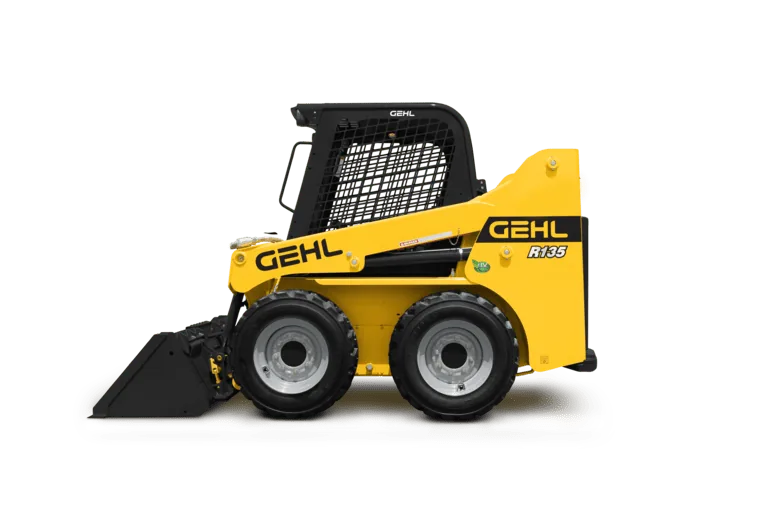

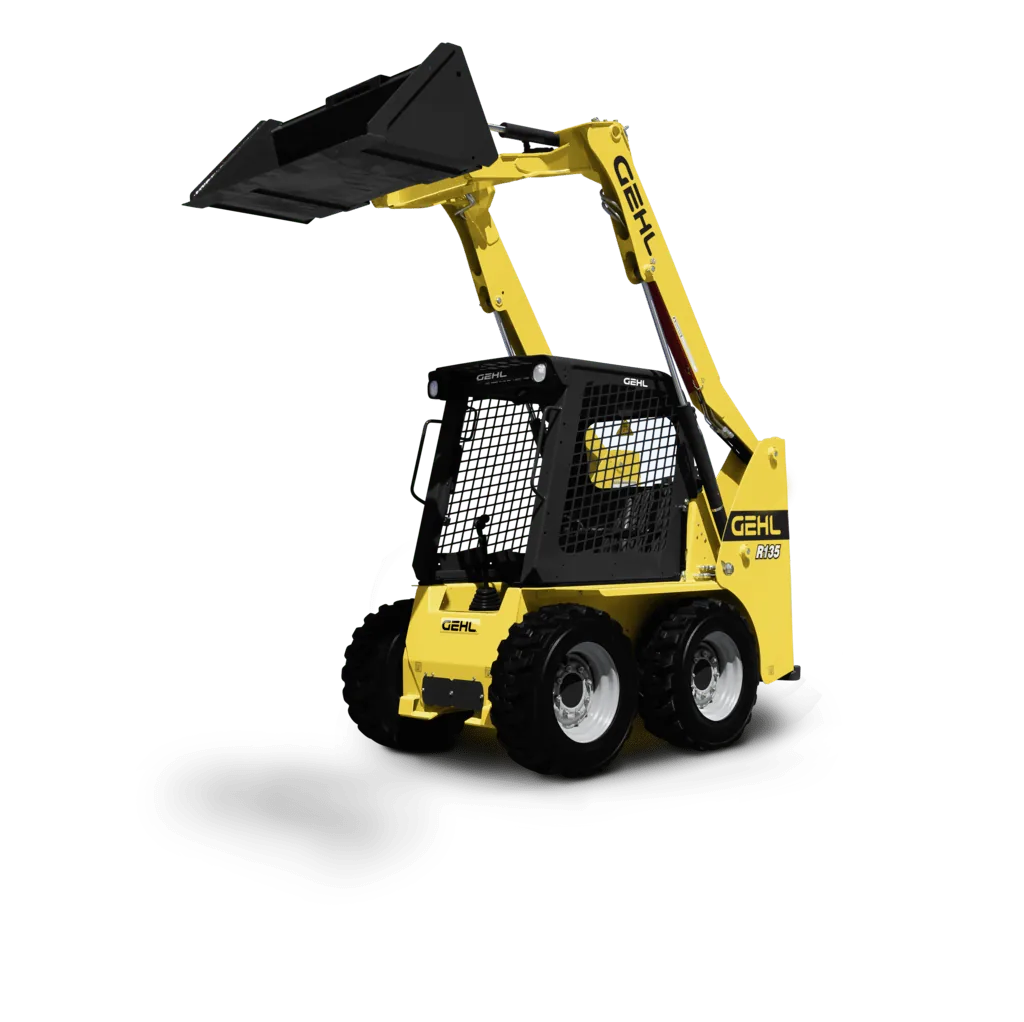

Product views

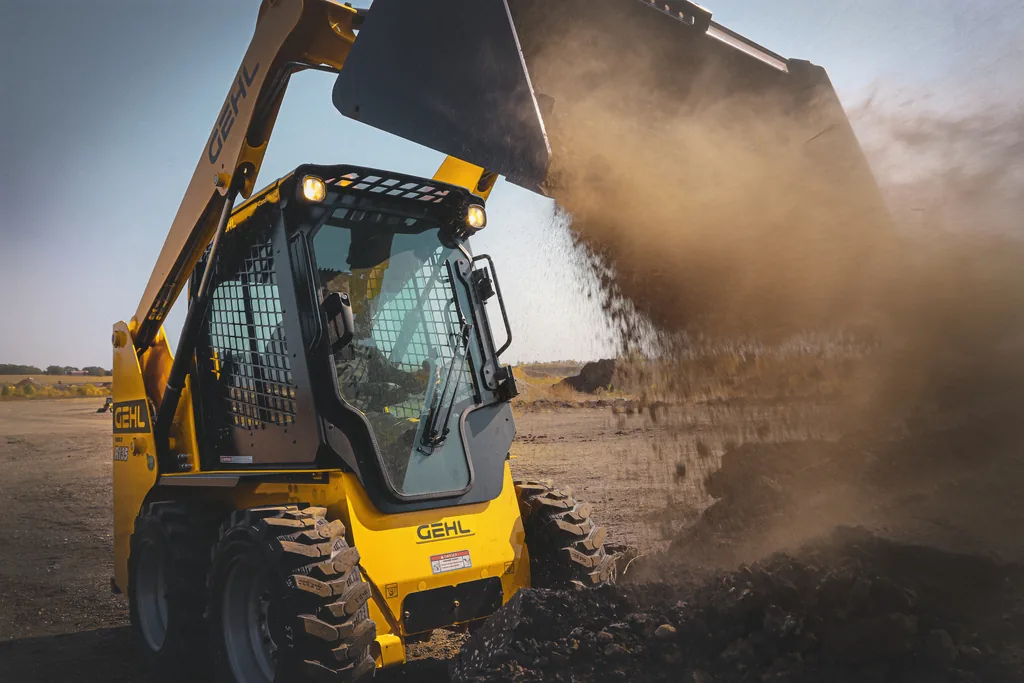

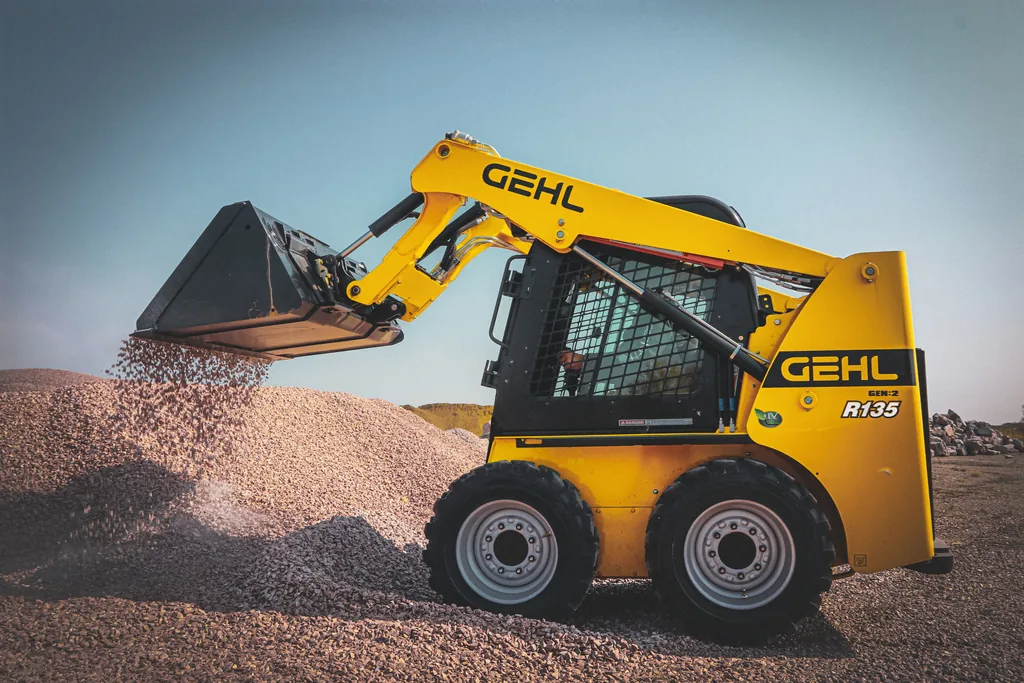

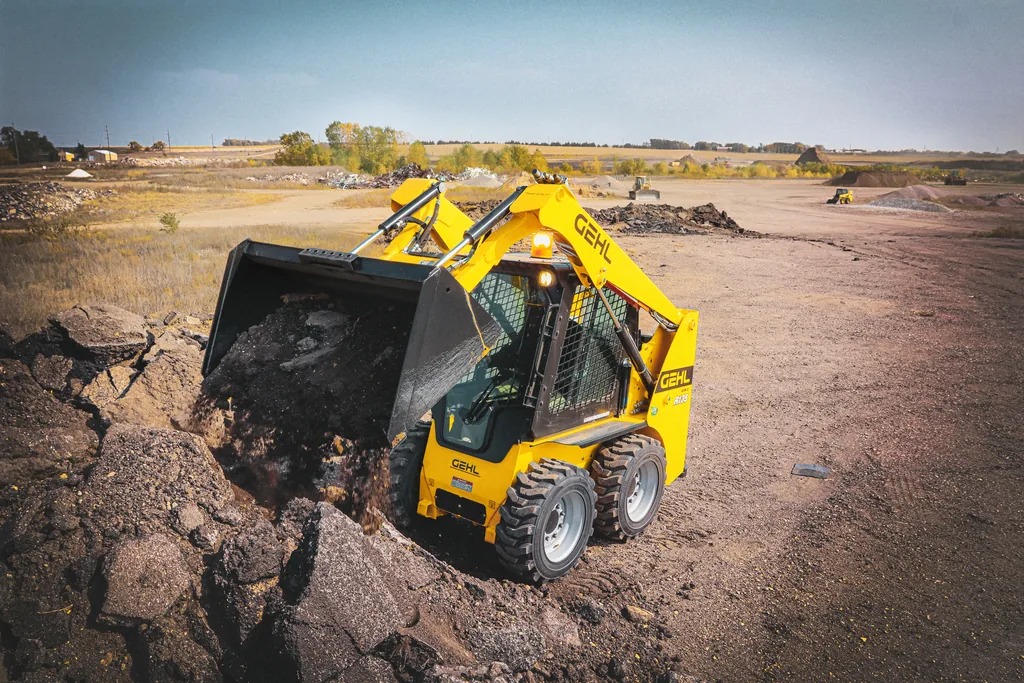

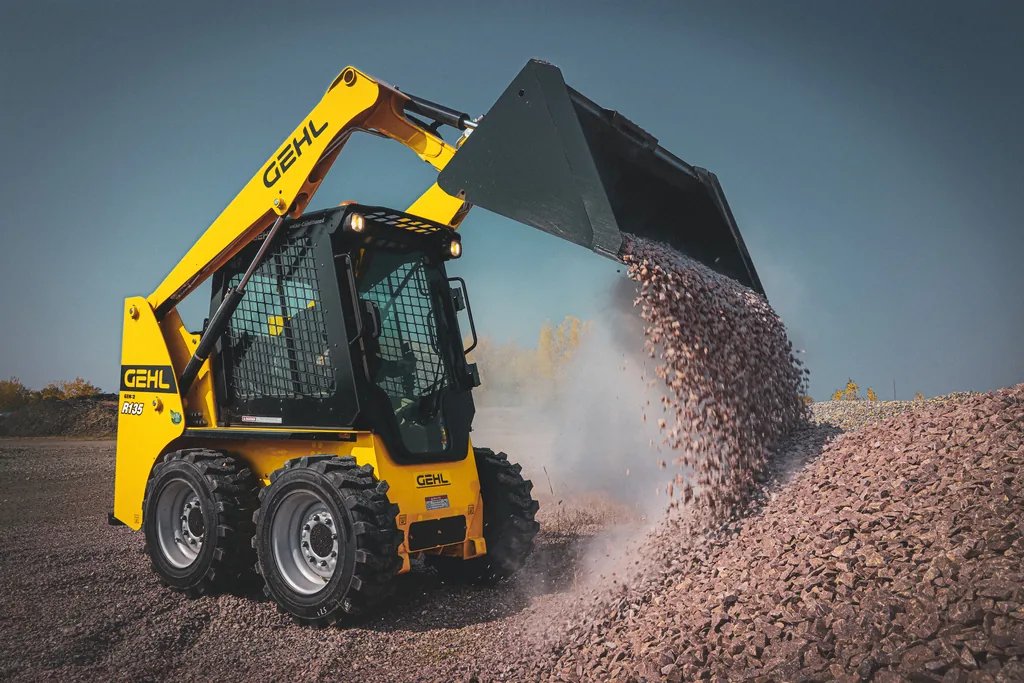

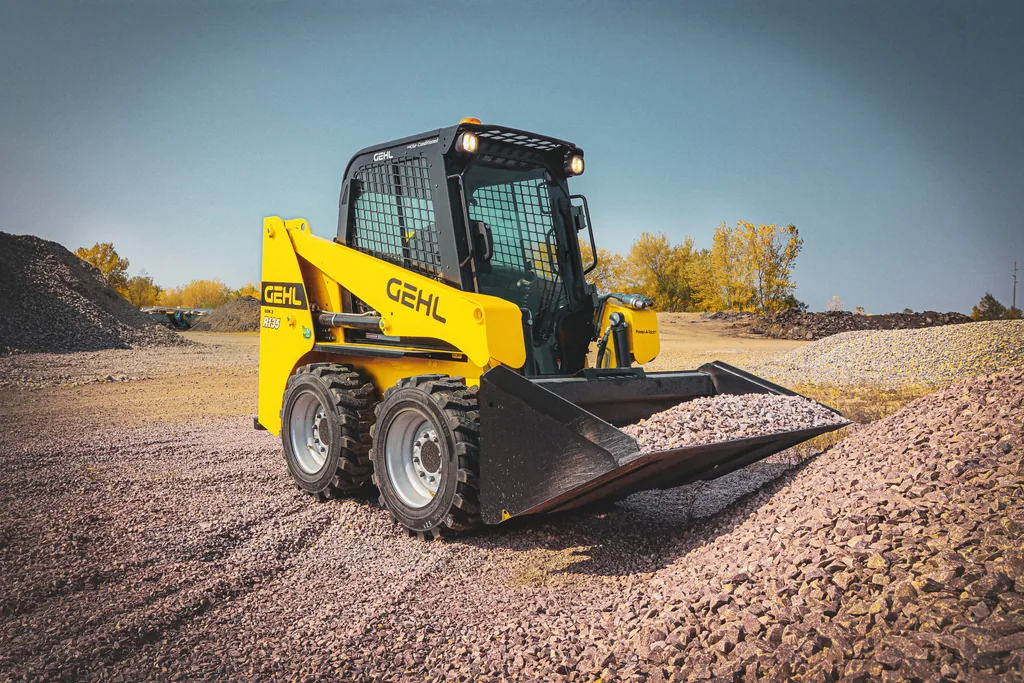

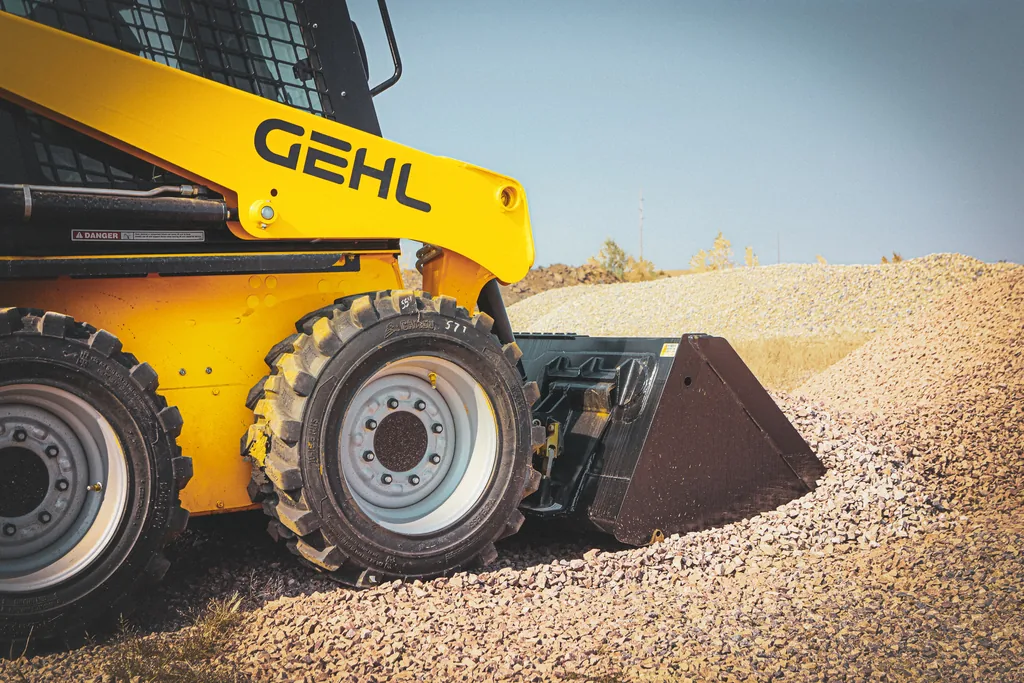

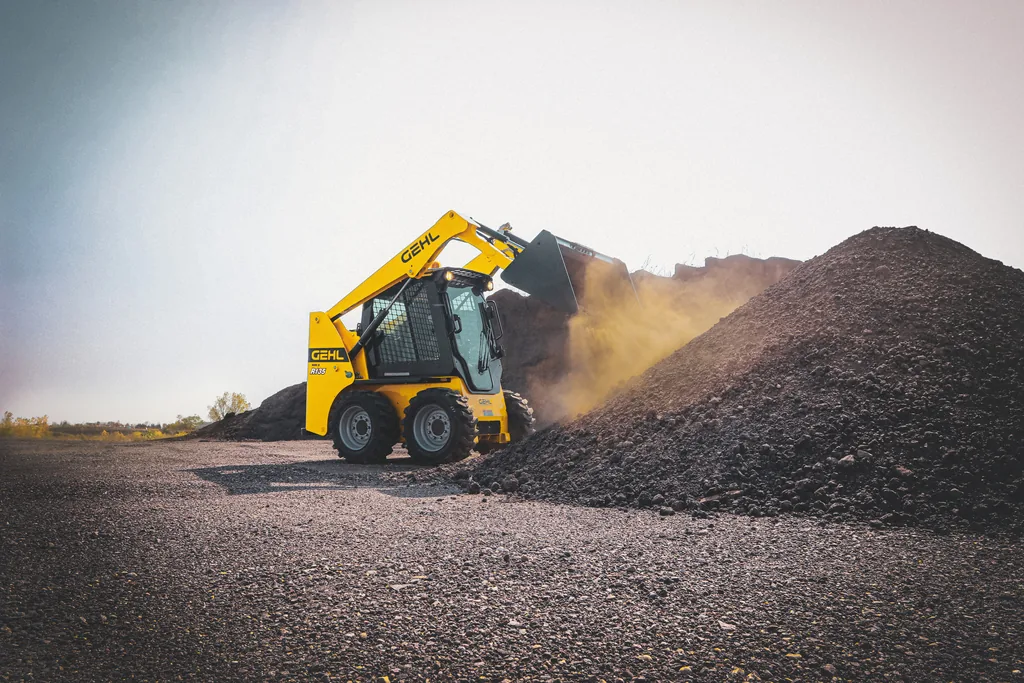

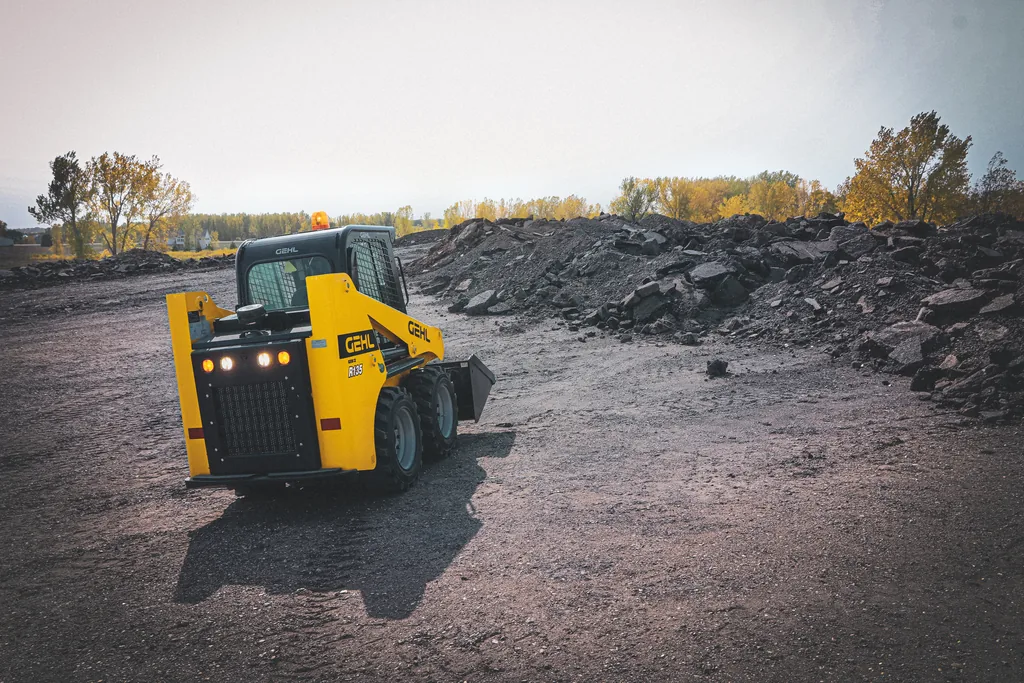

On the job
Gehl / Skid Loader
R135 GEN:2
1350
lb
Rated Operating Capacity
46 Hp
34.30 kW
Engine Power
5255
lb
Operating Weight
Diesel
Power Source
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl R135 GEN:2? We'll send it with your quote.
1350
lb
Rated Operating Capacity
Specifications
- Operating Capacity At 50% Tipping Load: 1350 lb
- Rated Operating Capacity with Optional Counterweight: 1499 lb
- Operating Weight: 5255 lb
- Unladen weight: 4764 lb
- Tipping capacity: 2700 lb
- Wheelbase: 37 in
- Overall Operating Height - Fully Raised: 144 in
- Height to Hinge Pin - Fully Raised: 110 in
- Dump angle at full height: 40 °
- Dump height: 84 in
- Overall length with bucket: 121 in
- Dump reach - Full height: 23 in
- Rollback at ground: 28 °
- Seat to ground height: 34 in
- Overall width less bucket: 54 in
- Bucket Width: 54 in
- Ground clearance: 8 in
- Overall length - Less Bucket: 93 in
- Clearance Radius - Front with Bucket: 73 in
- Rear departure angle: 25 °
- Travel speed (unladen): 8 mph
- Standard tires: 10.00 x 16.5 HD
- Brand / model: Yanmar 4TNV88C
- Emissions norm: Stage IV, Tier 4 final
- Max. torque / Engine rotation: 108 ft/lbs / 1820 rpm
- Power source: Diesel
- Power: 46 Hp / 34.30 kW
- Battery voltage: 12 V
- Starter: 2.30 kW
- Standard flow - Auxiliary hydraulics: 17 US gpm
- Fuel: 16 US gal
- Hydraulic tank capacity: 9 US gal
- Noise to environment (LwA): 101 dB
- Whole-Body Vibration (ISO 2631-1): 3 ft/s²
- Vibration on hands/arms: < 6 ft/s²
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl R135 GEN:2 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Buyer's guides for this machine
Frequently asked questions
Radial-lift arms shine at digging, grading and ground-level work; vertical-lift arms keep the load tucked in and reach higher, which is better for loading trucks and stacking. Our radial vs vertical guide breaks it down, or tell us the job and we'll point you to the right machine.
It's the safe working load - for a skid steer, typically 50% of the tipping load (SAE). It's the number to size by for everyday work; match it to your heaviest regular lift rather than just buying the biggest.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote. Financing is subject to credit approval and we'll walk you through the options. The Q3 2026 program runs through September 30, 2026.
Yes - we deliver anywhere in Missouri. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. Coverage terms vary by model and how the machine is used - ask us for the current factory coverage when you request a quote.
Financing
Q3 financing offer: 0% financing for 48 months through September 30, 2026. Ask about 0% for 48 months, 1.99% for 60, or 2.99% for 72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Road Service
Already own one? When it goes down on the job, we come to it. Road service for construction and ag equipment, most makes, across 15 counties in central and northeast Missouri, quoted on the phone before we roll.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Authorized for the Manitou and Gehl lineup - right here in Laddonia, MO.
Talk to a real person
Call the dealership and get someone who knows these machines, not a national call center three states away.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
