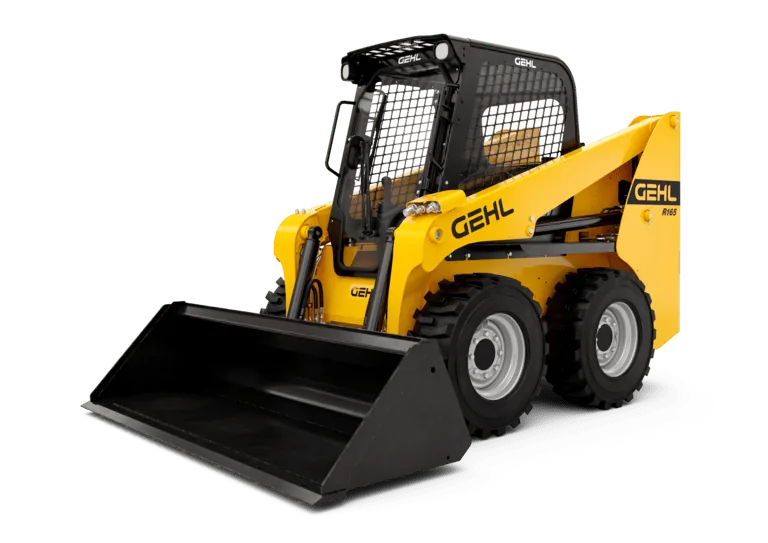

The Gehl R165 is a mid-size radial-lift skid loader rated at 1,650 lb, built around a fuel-efficient Yanmar diesel. It's a popular all-around pick for contractors who want more muscle without jumping to the flagship.

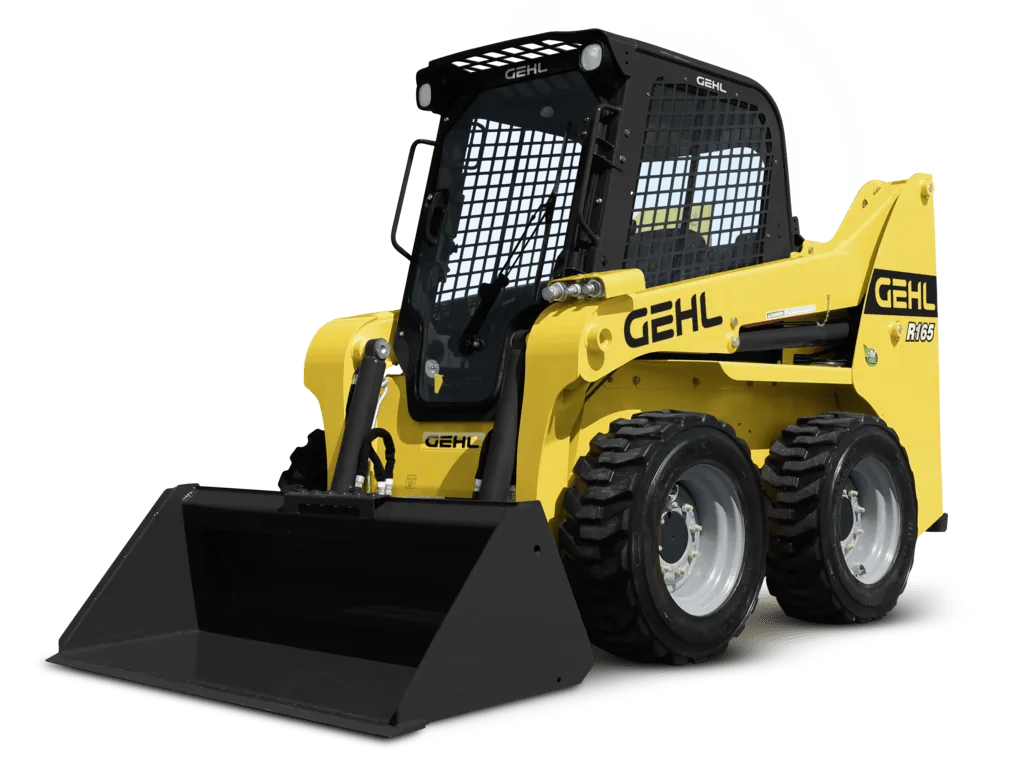

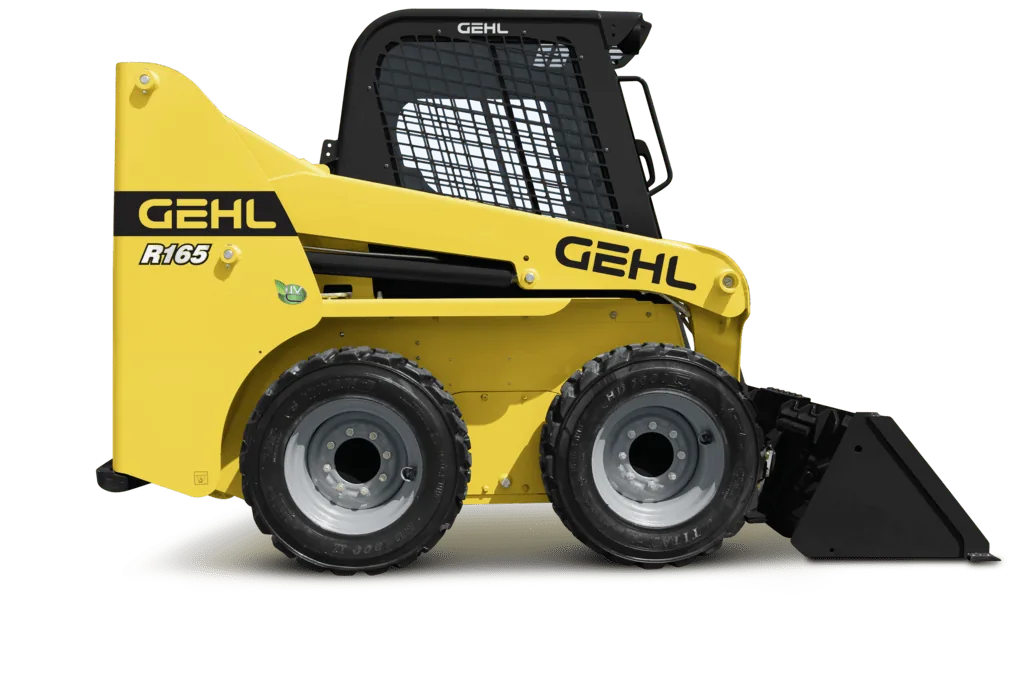

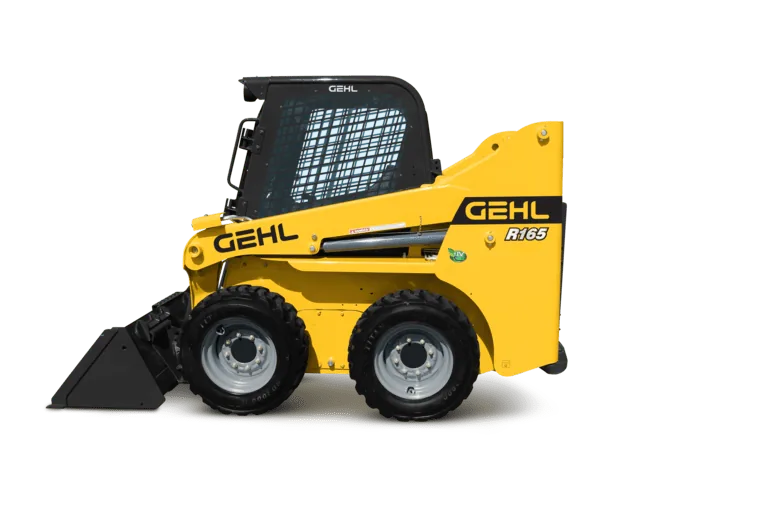

Product views

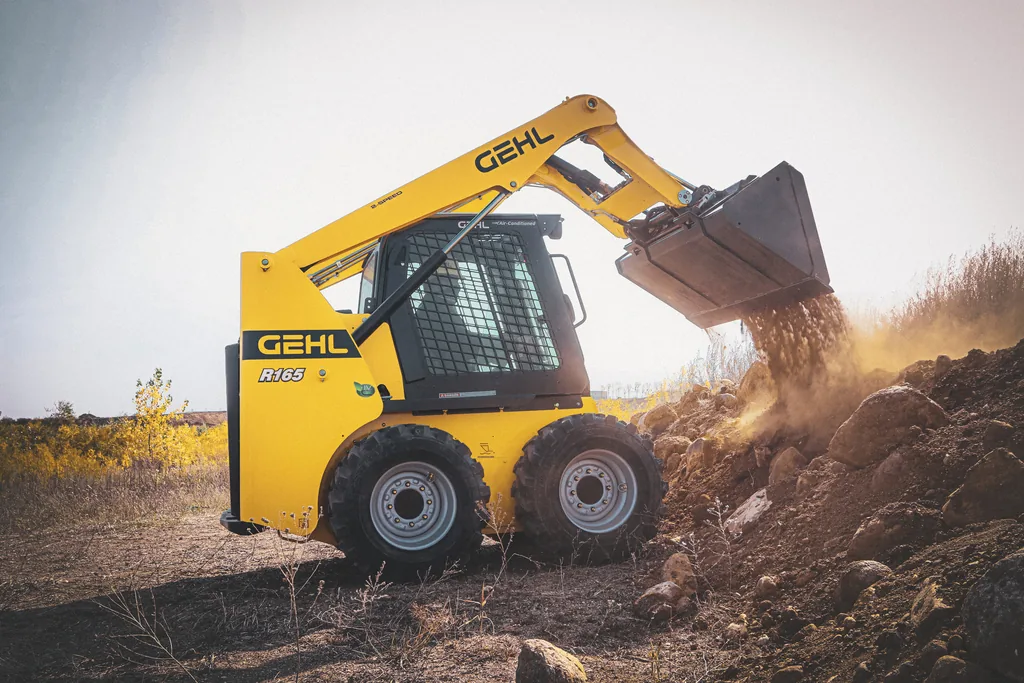

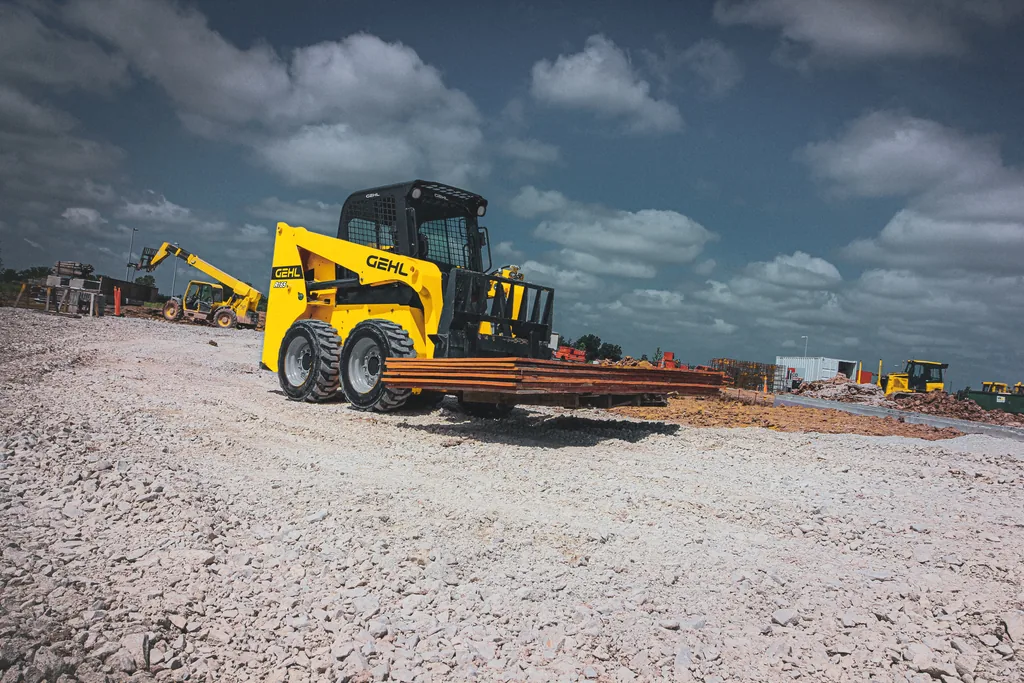

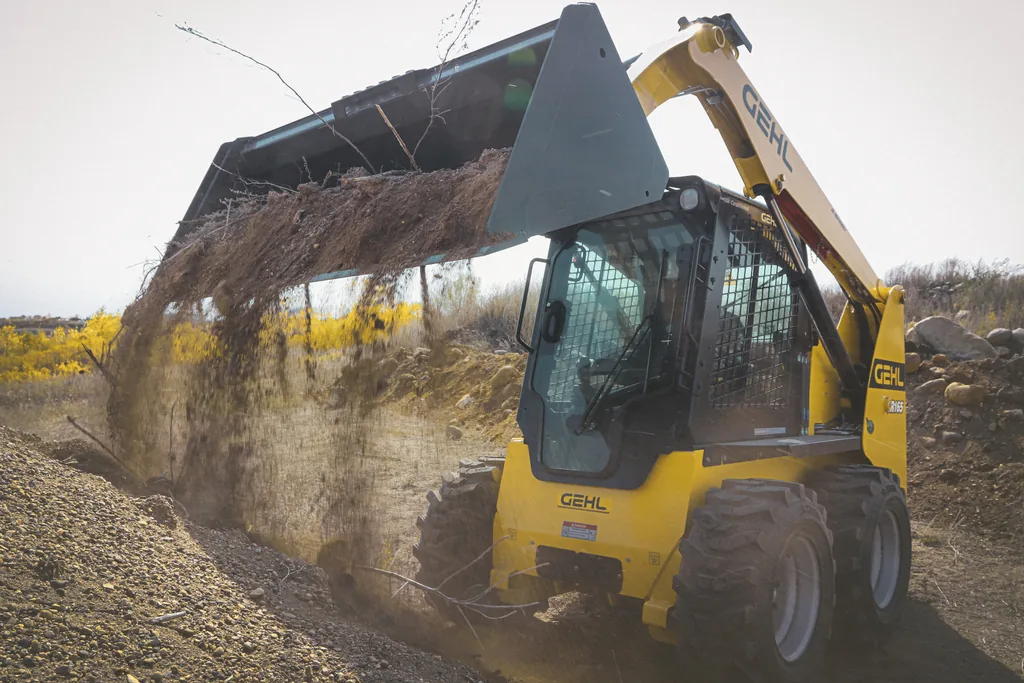

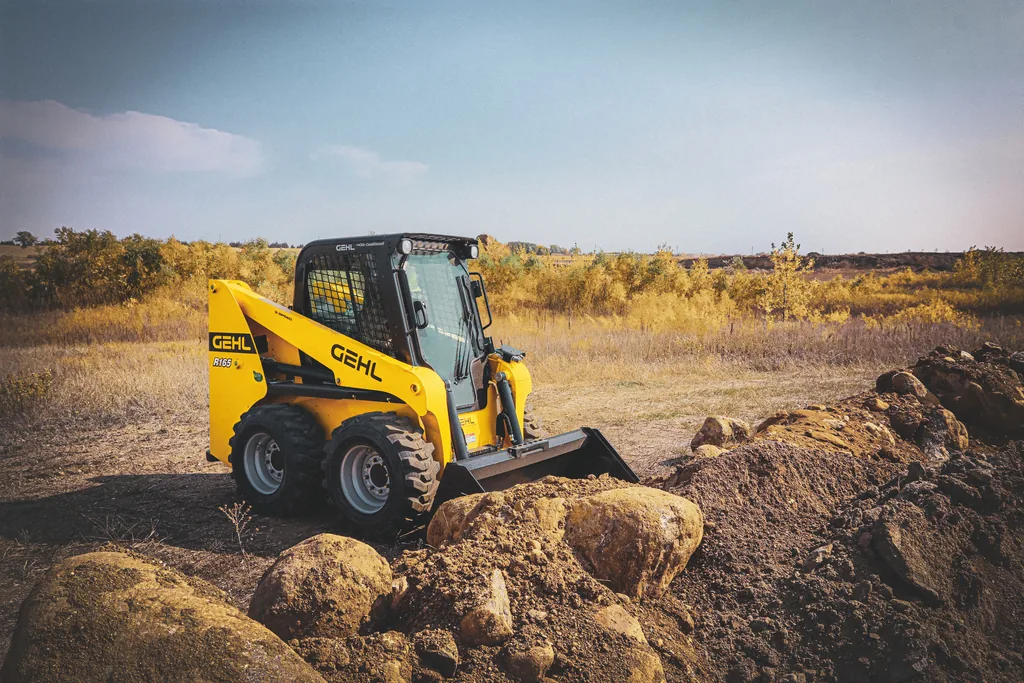

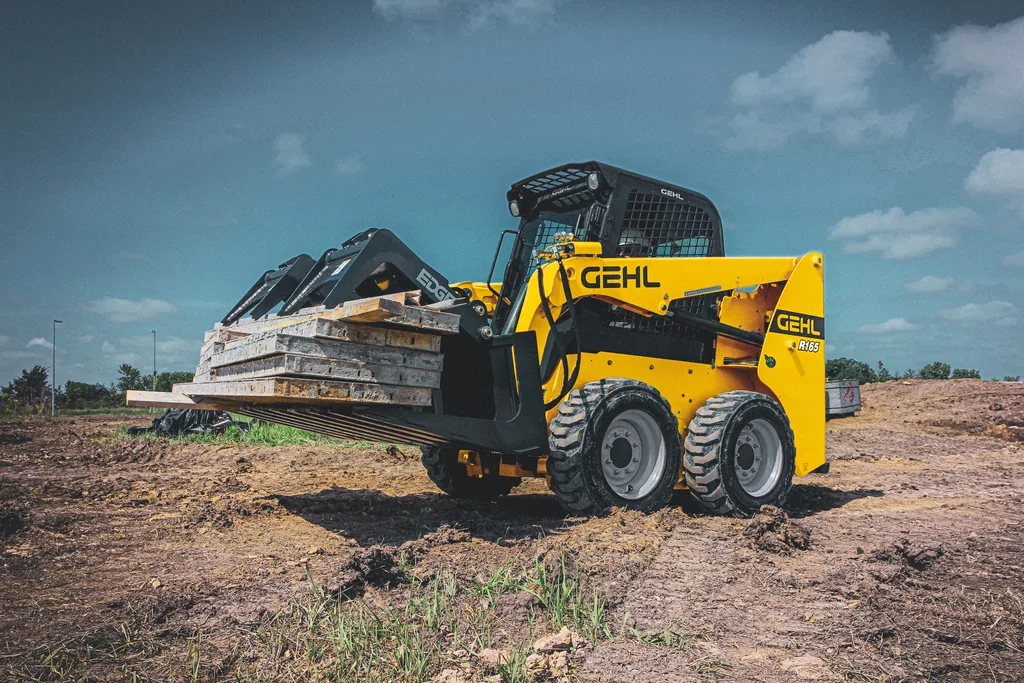

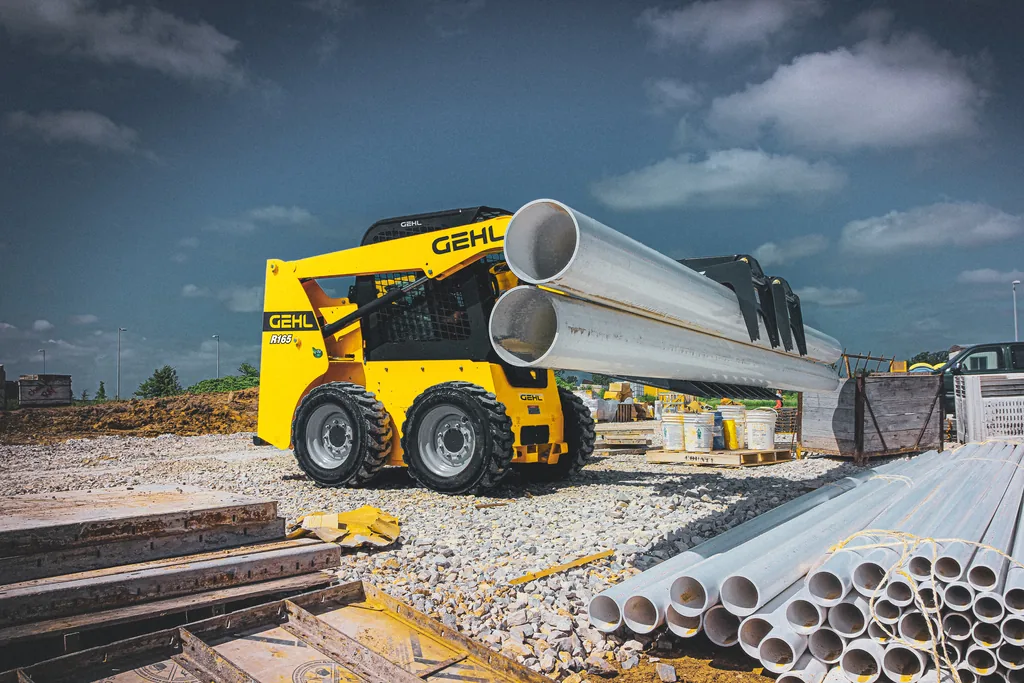

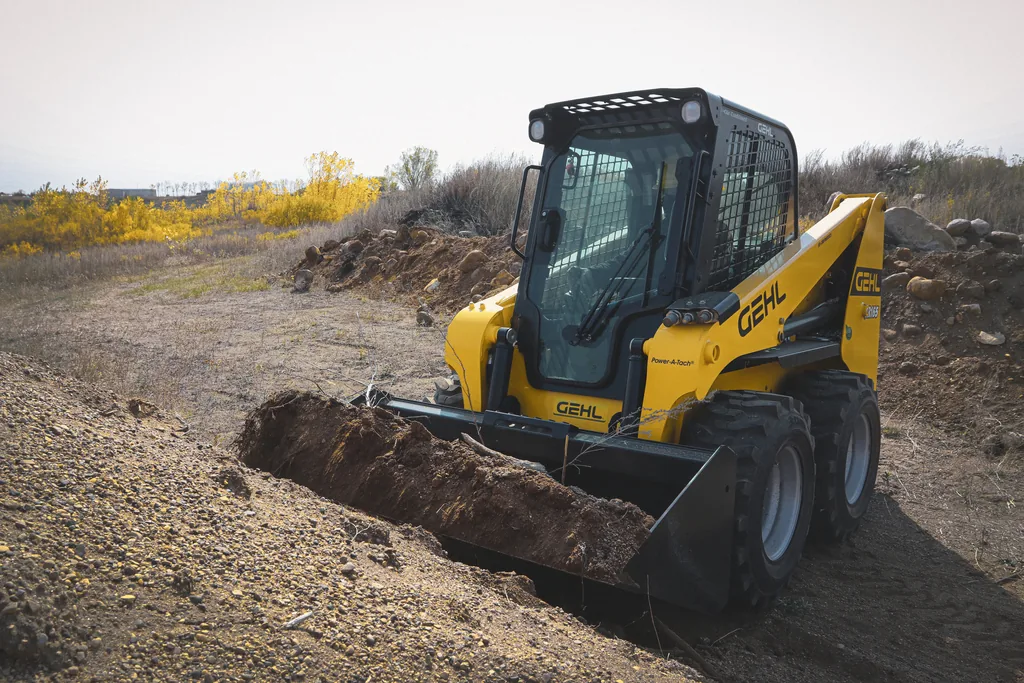

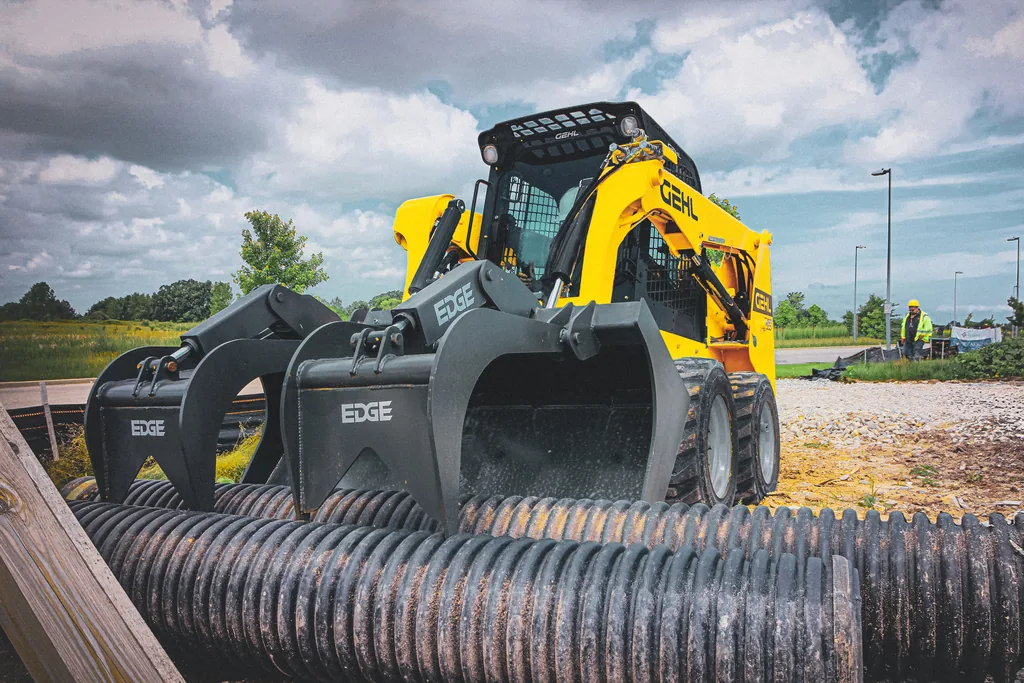

On the job
Gehl / Skid Loader
R165
1650
lb
Rated Operating Capacity
69.30 Hp
51 kW
Engine Power
6164
lb
Operating Weight
Diesel
Power Source
Lift & Reach
The numbers that decide the job. Need the full capacity-at-reach load chart for the Gehl R165? We'll send it with your quote.
1650
lb
Rated Operating Capacity
Features
Standard Features
- 12Volt Power Port
- Adjustable 2-inch Seat Belt
- Anti-Vandalism Lock Provisions
- Back-Up Alarm
- Front and Rear - Work Lights
- Hand/Foot Controls
- High-Back Adjustable Seat
- Lift Arm Support Device
- Operator Restraint Bar
- Servo-Controlled Hydrostatic Drive
- T-Bar Controls
- Battery charge indicator lamp
- Hour meter
- Hydraloc™ Safety System
- All-Tach® Attachment Mounting System
Optional Features
- 3-inch Seatbelt
- Automatic engine shutdown
- Battery Disconnect
- Heat & Defrost
- Hydraglide™ Ride Control
- LED Work Lights
- Power-A-Tach® Attachment Mounting System
- Radio
- Rear view mirror
- Rotating Beacon
- Swing-out Cab Door
- Simplified lift system
- Rear camera with cab display screen
- Selectable Self-Leveling Hydraulic Lift Action 4
- Counterweight
Specifications
- Operating Capacity At 50% Tipping Load: 1650 lb
- Rated Operating Capacity with Optional Counterweight: 1800 lb
- Operating Weight: 6164 lb
- Unladen weight: 5571 lb
- Tipping capacity: 3300 lb
- Wheelbase: 39 in
- Overall Operating Height - Fully Raised: 153 in
- Height to Hinge Pin - Fully Raised: 119 in
- Dump angle at full height: 38 °
- Dump height: 94 in
- Overall length with bucket: 122 in
- Dump reach - Full height: 23 in
- Rollback at ground: 28 °
- Seat to ground height: 36 in
- Overall width less bucket: 62 in
- Bucket Width: 61 in
- Ground clearance: 6 in
- Overall length - Less Bucket: 94 in
- Departure angle: 21 °
- Clearance Radius - Front with Bucket: 74 in
- Rear departure angle: 21 °
- Travel speed (unladen): 8 mph
- Travel Speed with Two-Speed Option - Maximum: 12 mph
- Standard tires: 10.00 x 16.5 HD
- Brand / model: Yanmar 4TNV98C-NMS2V
- Emissions norm: Stage IV
- Max. torque / Engine rotation: 178 ft/lbs / 1625 rpm
- Power source: Diesel
- Power: 69.30 Hp / 51 kW
- Battery voltage: 12 V
- Starter: 3 kW
- Standard flow - Auxiliary hydraulics: 20 US gpm
- High-Flow Auxiliary Hydraulics - Option: 30 US gpm
- Fuel: 17 US gal
- Hydraulic tank capacity: 10 US gal
- Noise to environment (LwA): 101 dB
- Whole-Body Vibration (ISO 2631-1): 3 ft/s²
- Vibration on hands/arms: < 5 ft/s²
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl R165 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Frequently asked questions
Radial-lift arms shine at digging, grading and ground-level work; vertical-lift arms keep the load tucked in and reach higher, which is better for loading trucks and stacking. Our radial vs vertical guide breaks it down, or tell us the job and we'll point you to the right machine.
It's the safe working load - for a skid steer, typically 50% of the tipping load (SAE). It's the number to size by for everyday work; match it to your heaviest regular lift rather than just buying the biggest.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: 0% financing for 48 months through June 30, 2026. Ask about 0% for 48 months, 1.99% for 60, or 2.99% for 72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
