The Gehl RS6-34 G3 is a compact telehandler that lifts 6,000 lb and stays under 75 hp, so you skip the DEF system that comes with bigger diesels. It's an easy machine to own and operate for smaller crews and rental fleets.

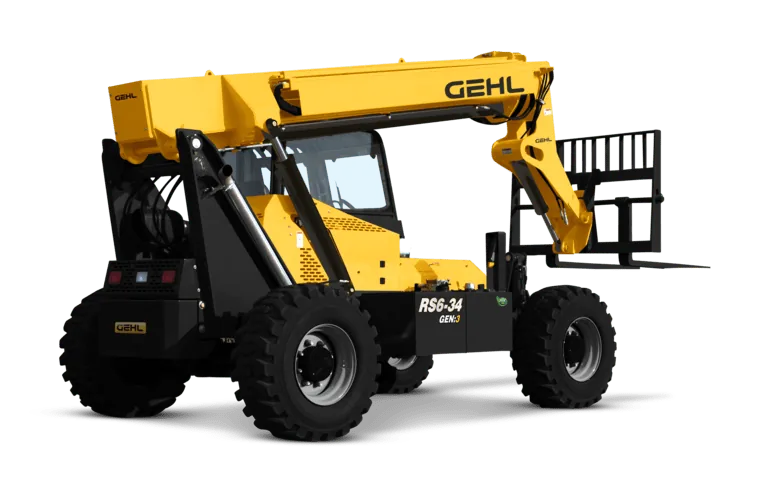

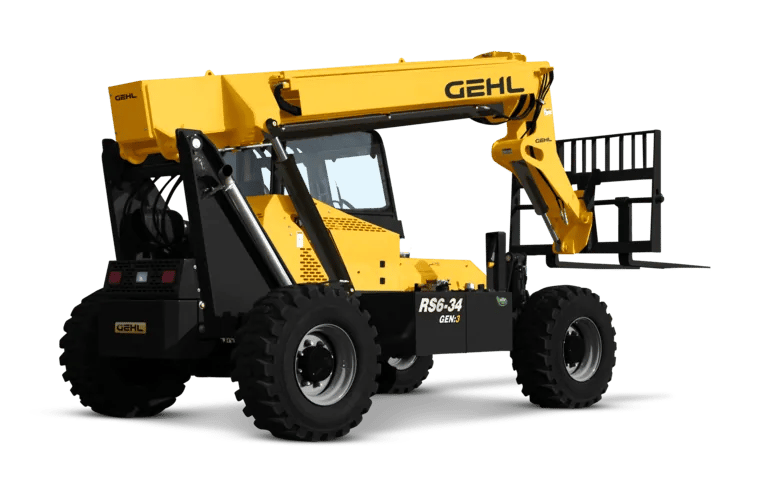

Product views

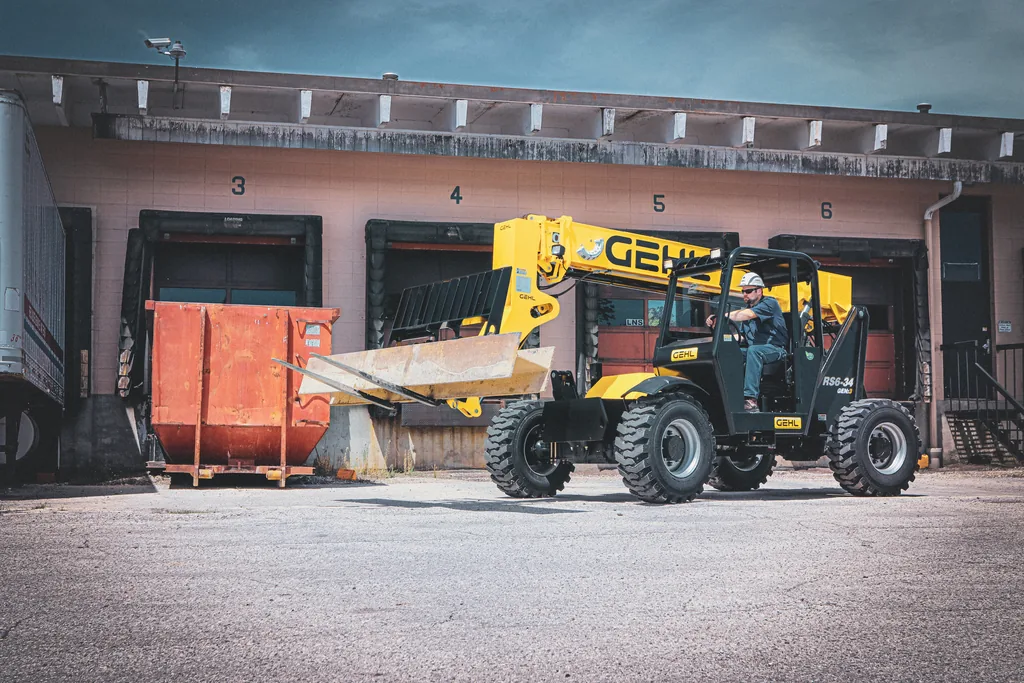

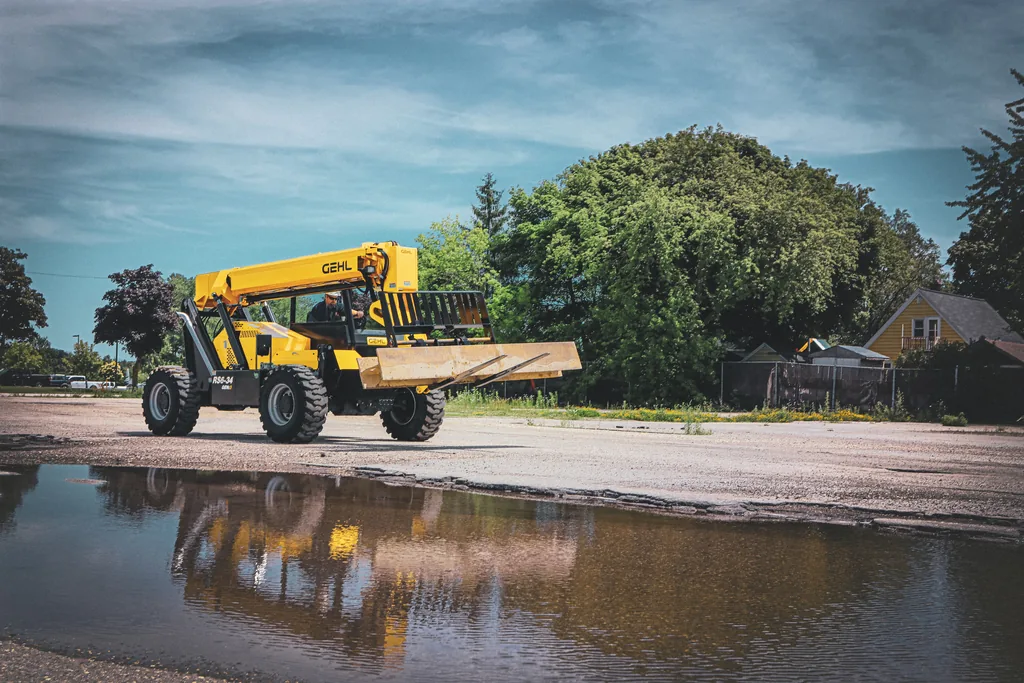

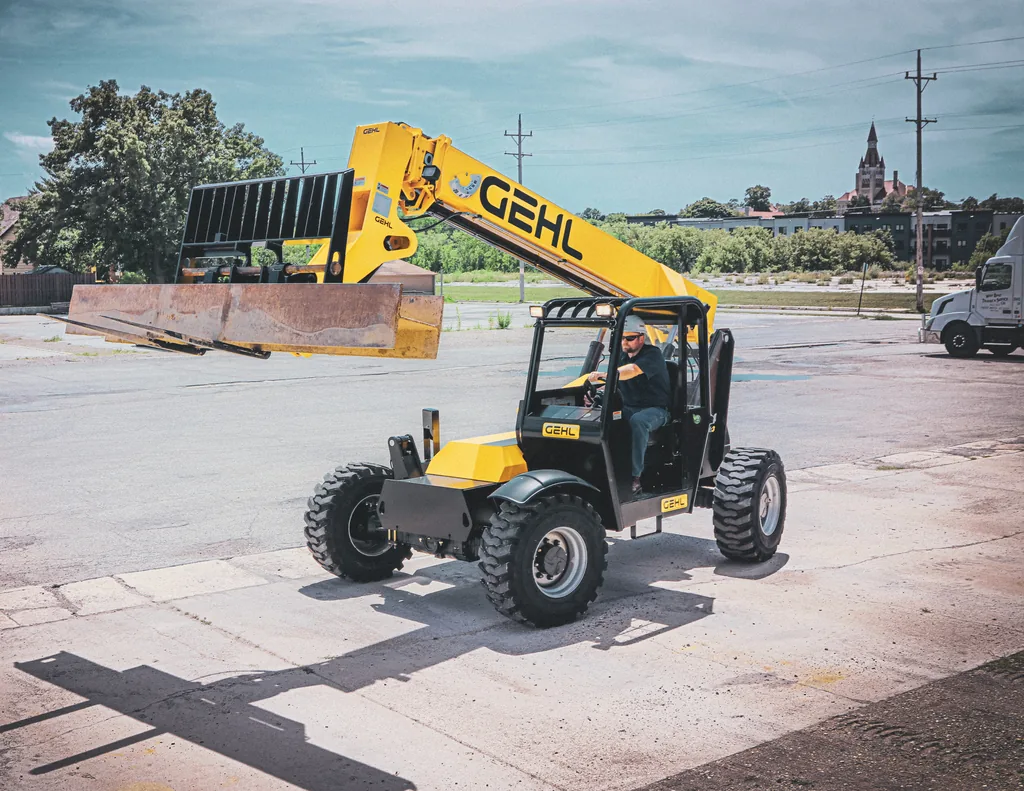

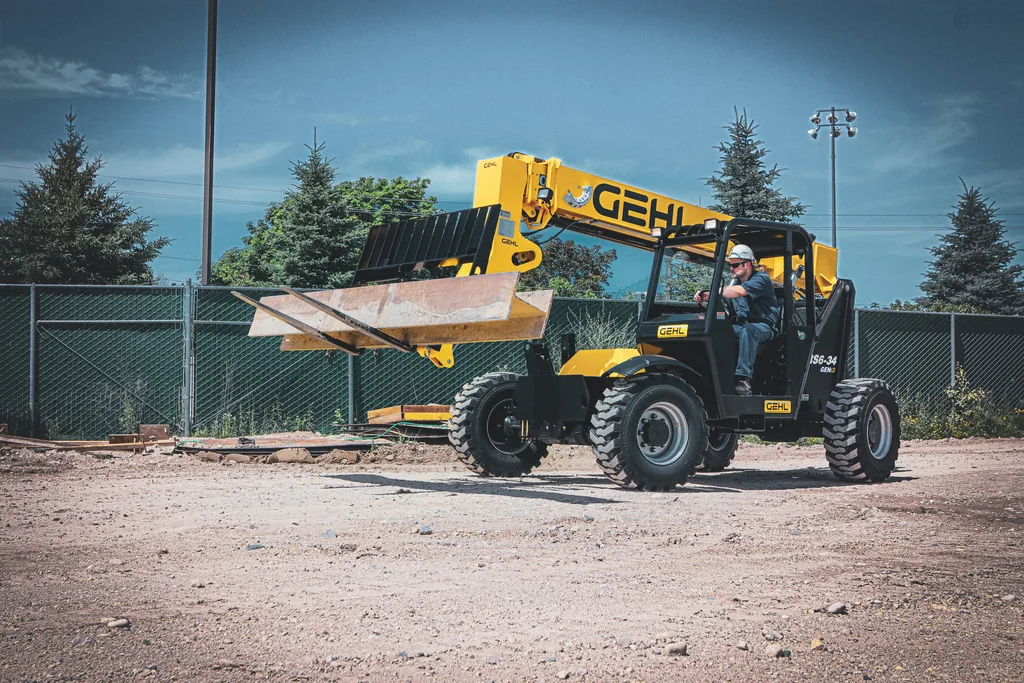

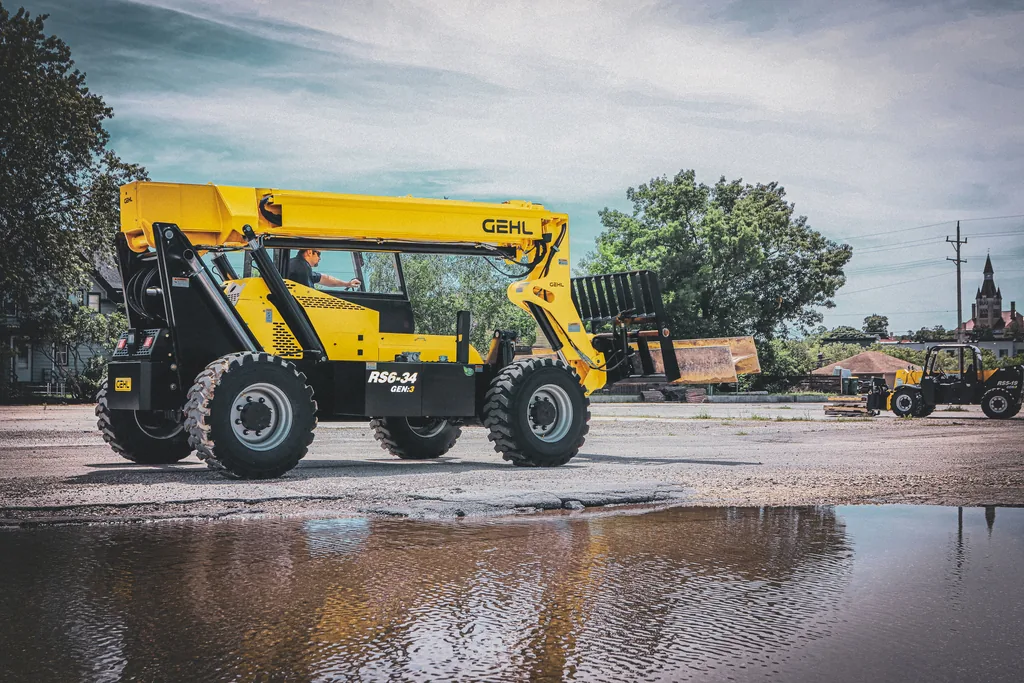

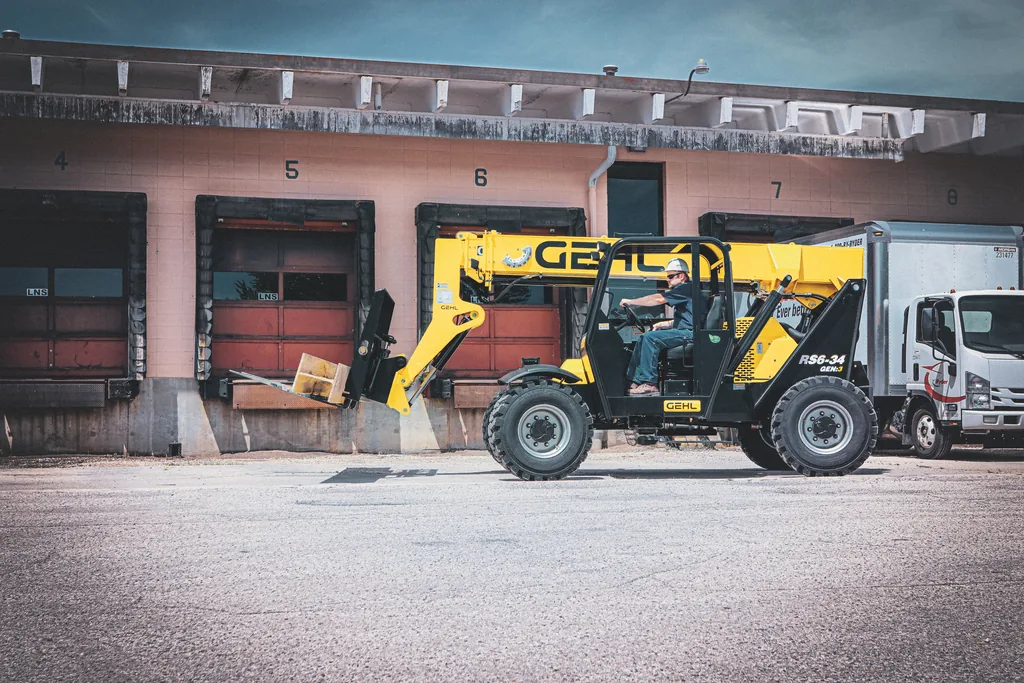

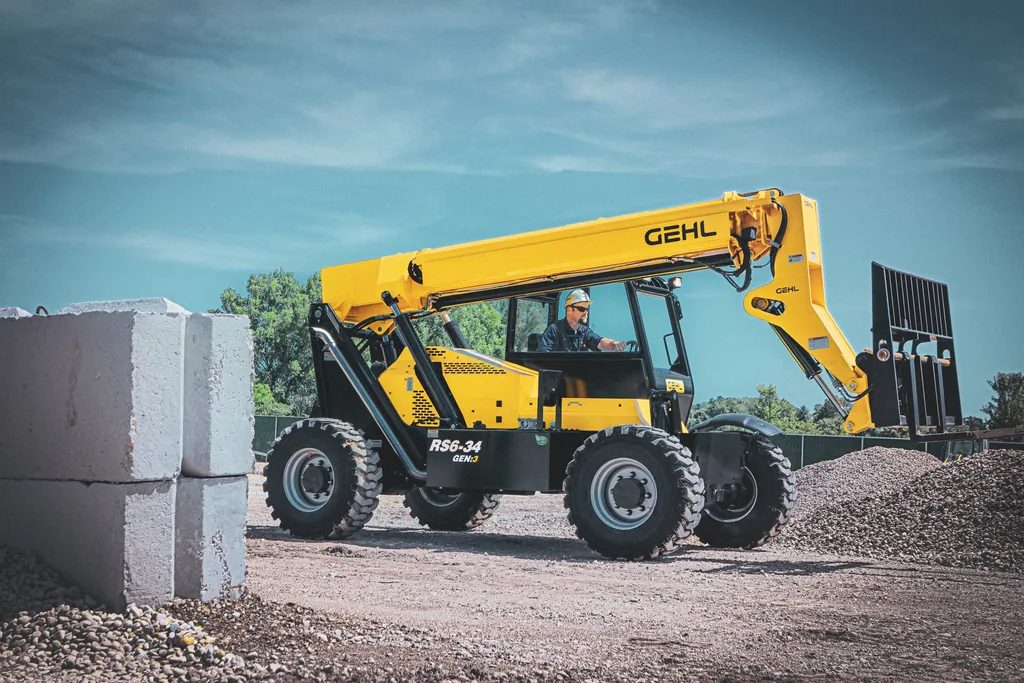

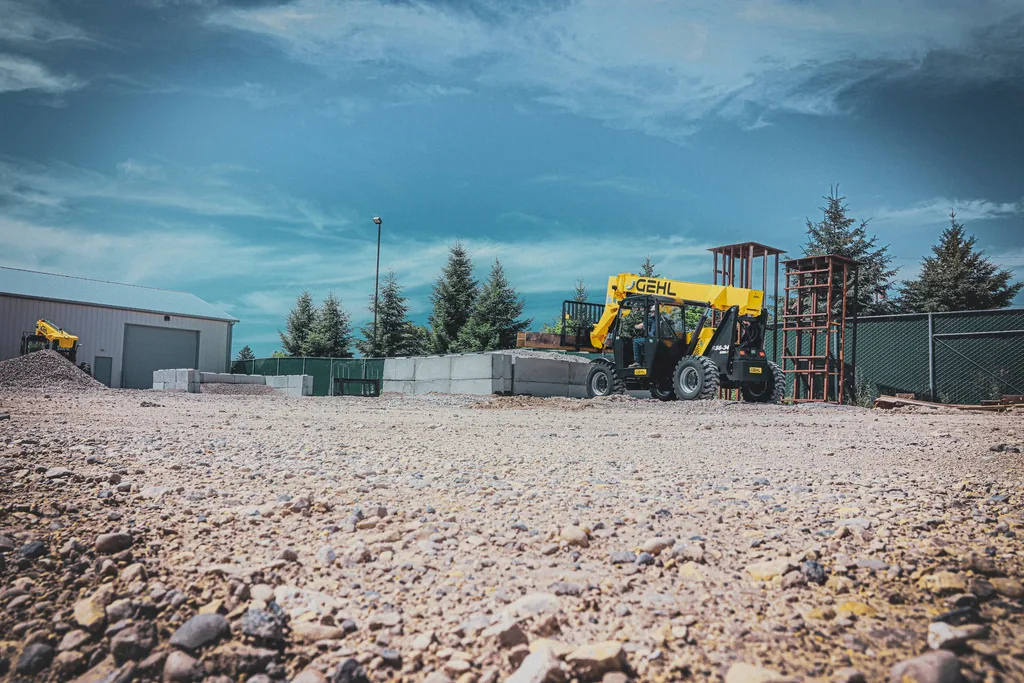

On the job
Gehl / Telehandler
RS6-34 G3
6000
lb
Max Capacity
34 ft 3 in
Max Lift Height
23
ft
Max Outreach
74 Hp
55 kW
Engine Power
15102
lb
Operating Weight

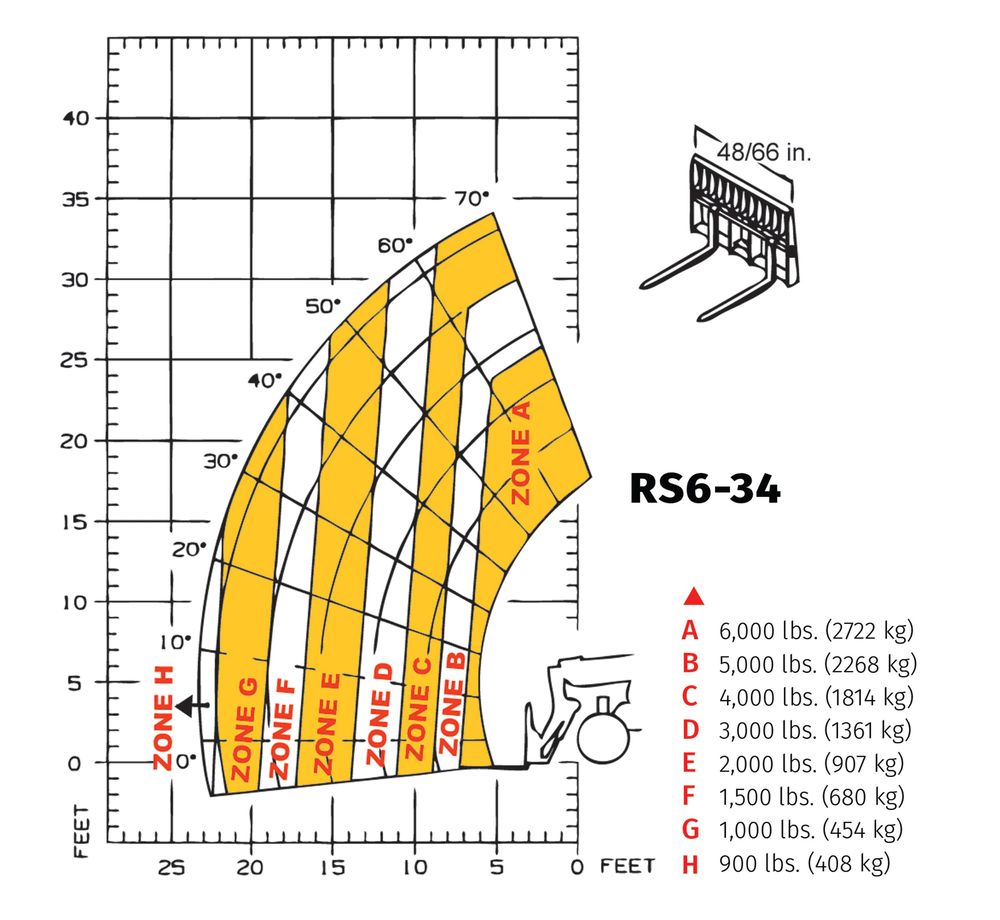

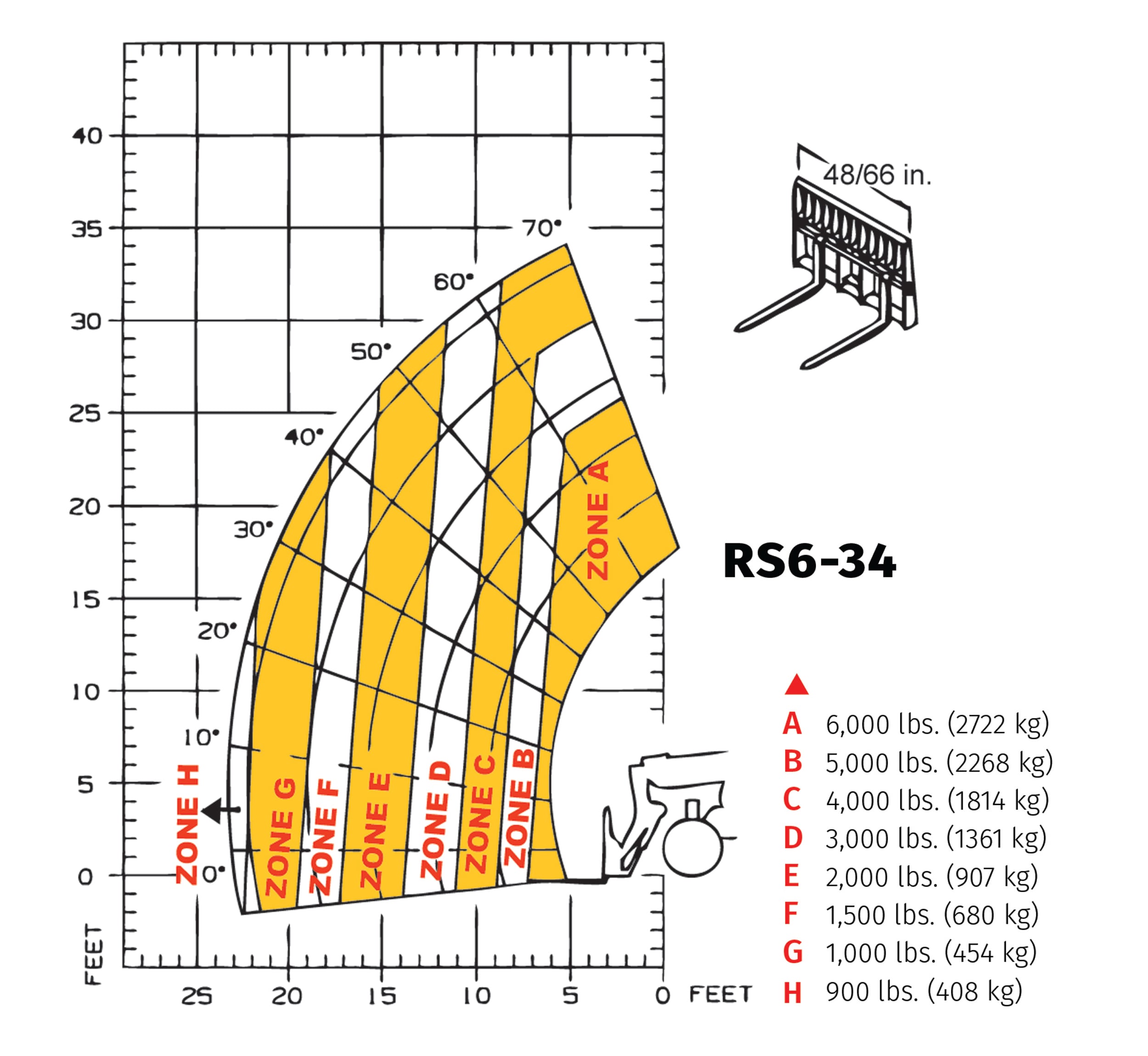

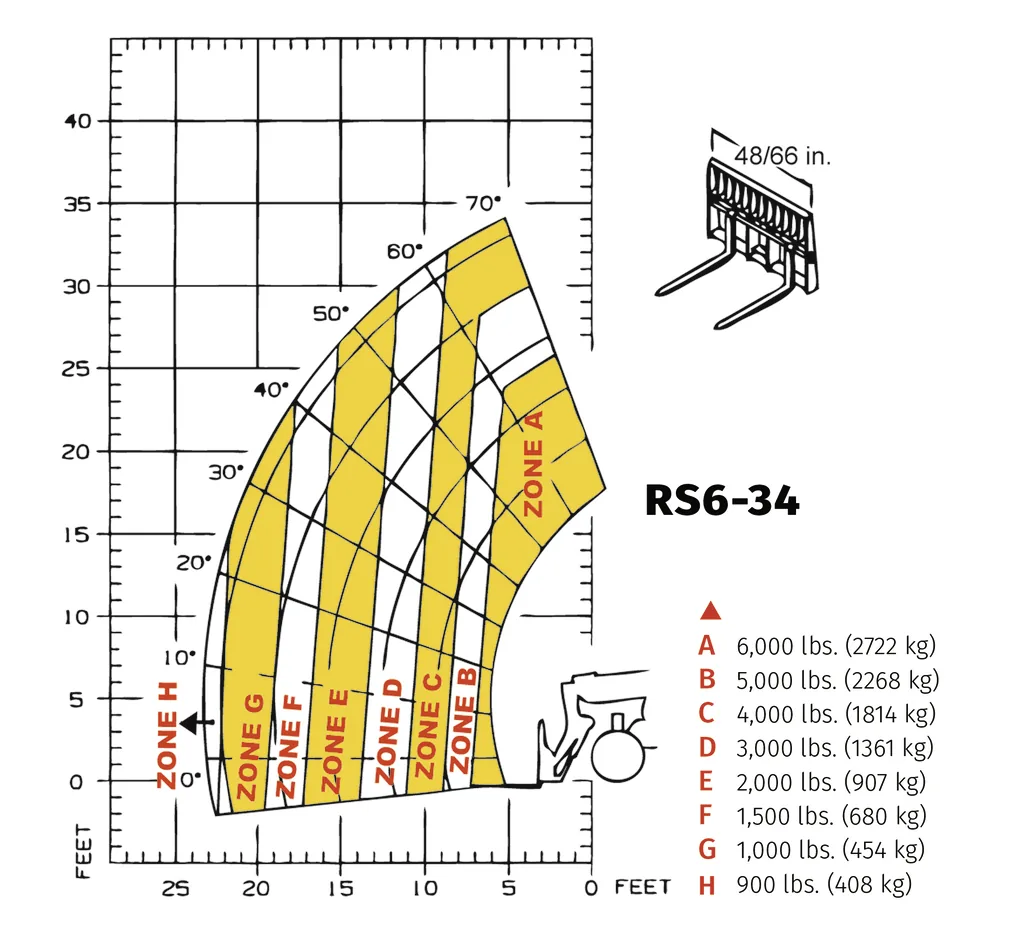

Load Chart & Dimensions
Capacity, reach, and dimensions matter on a real job. Here are the manufacturer diagrams for this machine - tap any chart to view it full size.
Features
Standard Features
- 12 Volt Battery
- 12Volt Power Port
- 3 speeds
- Back-Up Alarm
- Glowplugs Starter Assist
- Multi-Function Display Screen
- Crab mode
- Storage box - On the shelf
- Wet disc brakes
- Engine Block Heater
Optional Features
- Enclosed Cab with Heat and A/C
- Enclosed Cab with Heat and Defrost
- Foam Filled Tires
- Light Package - LED
- PWP System 3-Section Boom
- Solid Rubber Tires
- Suspension Seat
- Easy Manager
Specifications
- Max. capacity: 6000 lb
- Max. lifting height: 34 ft 3 in
- Maximum outreach: 23 ft
- Overall length to carriage: 16 ft
- Length to face of forks: 16 ft 1 in
- Overall width: 7 ft 10 in
- Overall height: 7 ft 9 in
- Wheelbase: 9 ft 2 in
- Ground clearance: 14 in
- External turning radius: 12 ft 6 in
- Unladen weight: 15102 lb
- Overall weight: 15113 lb
- Standard tires: 15 x 19.5
- Frame leveling longitudinal +/-: 10 °
- Brand / model: Deutz TD 3.6 L4
- Emissions norm: Stage IV, Tier 4 final
- Engine power (Hp/kW): 74 Hp / 55 kW
- Max. torque / Engine rotation: 243 ft/lbs @ 2500 rpm
- Transmission type: Torque converter with powershift gearbox
- Number of gears (forward / reverse): 3 / 3
- Max. travel speed: 18 mph
- Parking brake: Hydraulic spring release SAHR
- Service brake: Wet disc brakes
- Axle Manufacturer: Dana
- Hydraulic pump type: Gear pump
- Hydraulic flow / Pressure: 29 US gpm-3002 PSI
- Hydraulic oil: 29 US gal
- Fuel: 29 US gal
- Steering wheels (front / rear): 2 / 2
- Drive wheels (front / rear): 2 / 2
- Cab certification: ROPS/FOPS
- Controls: Single Joystick FNR
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl RS6-34 G3 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Buyer's guides for this machine
Frequently asked questions
Match the max lift height and the capacity at full reach to your tallest, heaviest placement - capacity drops as the boom extends, so the load chart matters. Tell us the height, distance and weight and we'll spec it.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: rates from 1.99% through June 30, 2026. Ask about 1.99% for 24 months, then 2.99%/36, 3.99%/48, 4.99%/60, or 5.49%/72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
Why buy from Equipment Solutions Outdoors
Your local Manitou & Gehl dealer
Factory-backed sales, parts and warranty - right here in Laddonia, MO.
Service & parts in house
We support what we sell. No shipping your machine across the country for warranty work or parts.
We deliver across Missouri
Kansas City, St. Louis, Marshall, Kirksville, Jefferson City, Hannibal and the rural areas in between.
Real quotes, same business day
Tell us the job and we'll spec it and price it - no online guessing, no obligation.
Request a Quote
Tell us about the job and we'll put together pricing and current programs. No price guessing online - we quote your build.
* Specifications per manufacturer, subject to change without notice. Verify before purchase.
