The Gehl RS5-19 G3 is a compact rotating-frame telehandler that lifts 5,500 lb to about 19 feet on a sub-75 hp Yanmar diesel, so you skip the DEF system. It's a tidy, low-hassle machine for tight sites and rental fleets.

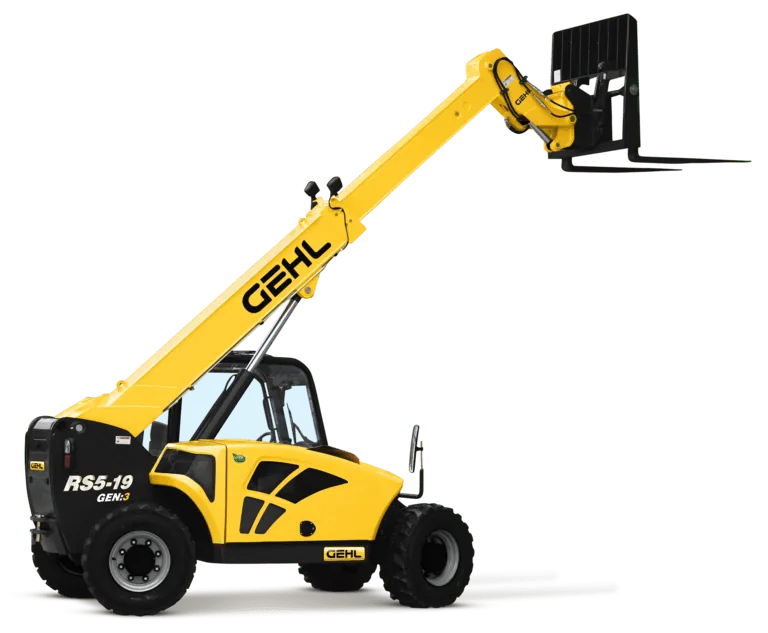

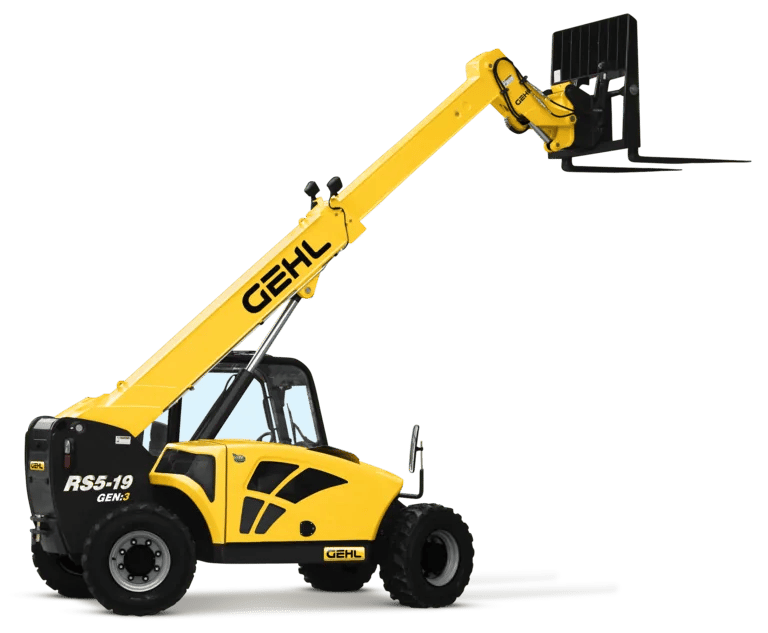

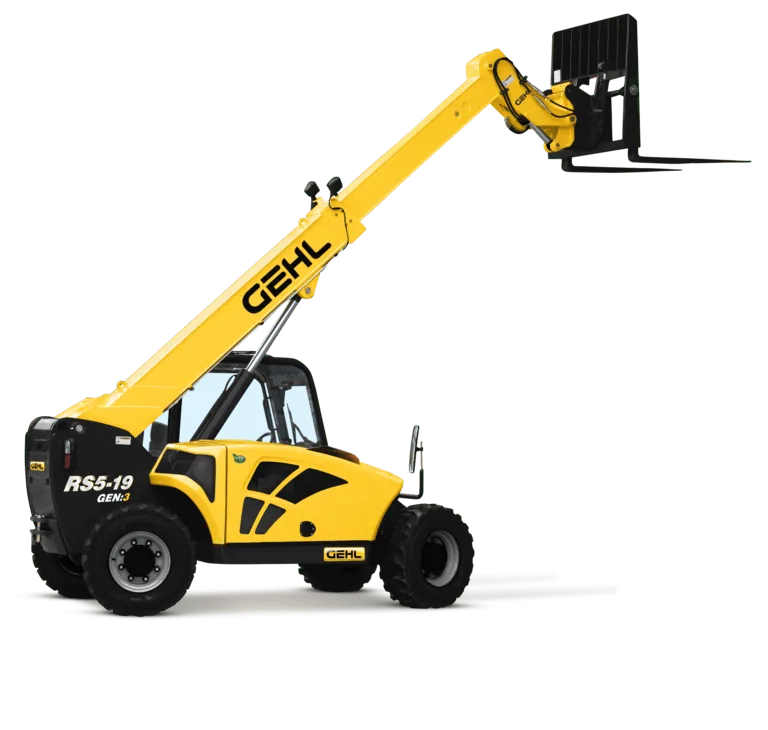

Product views

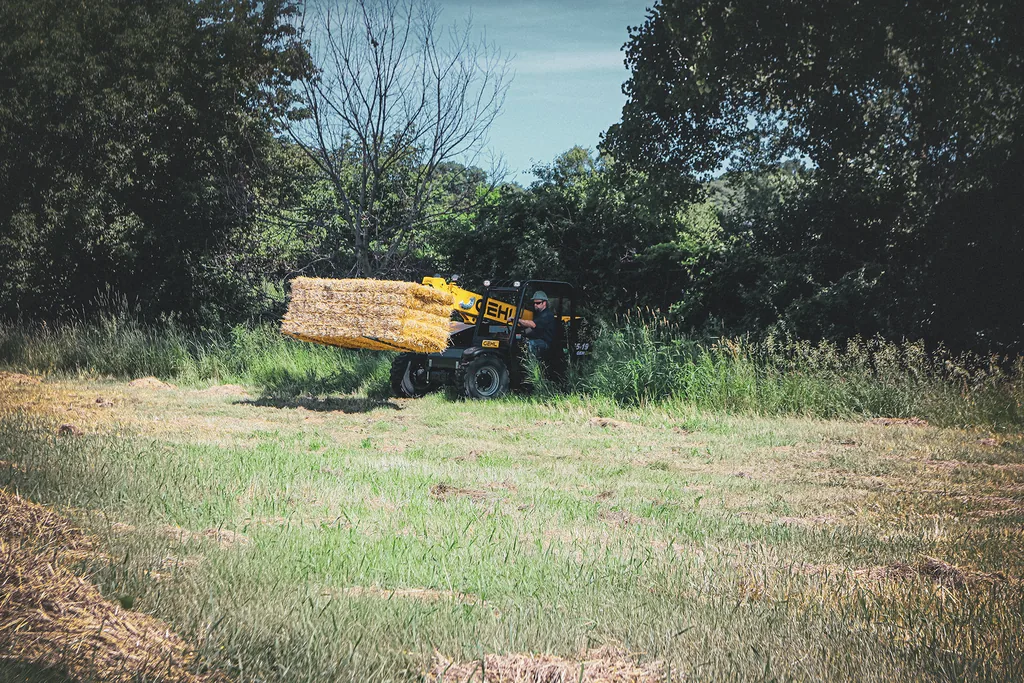

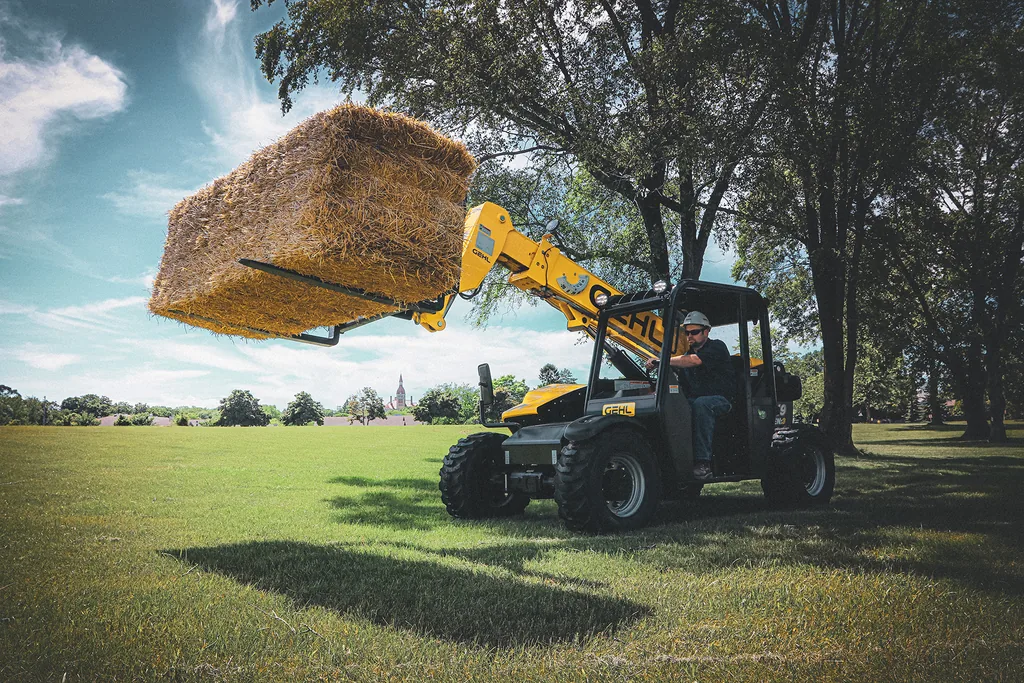

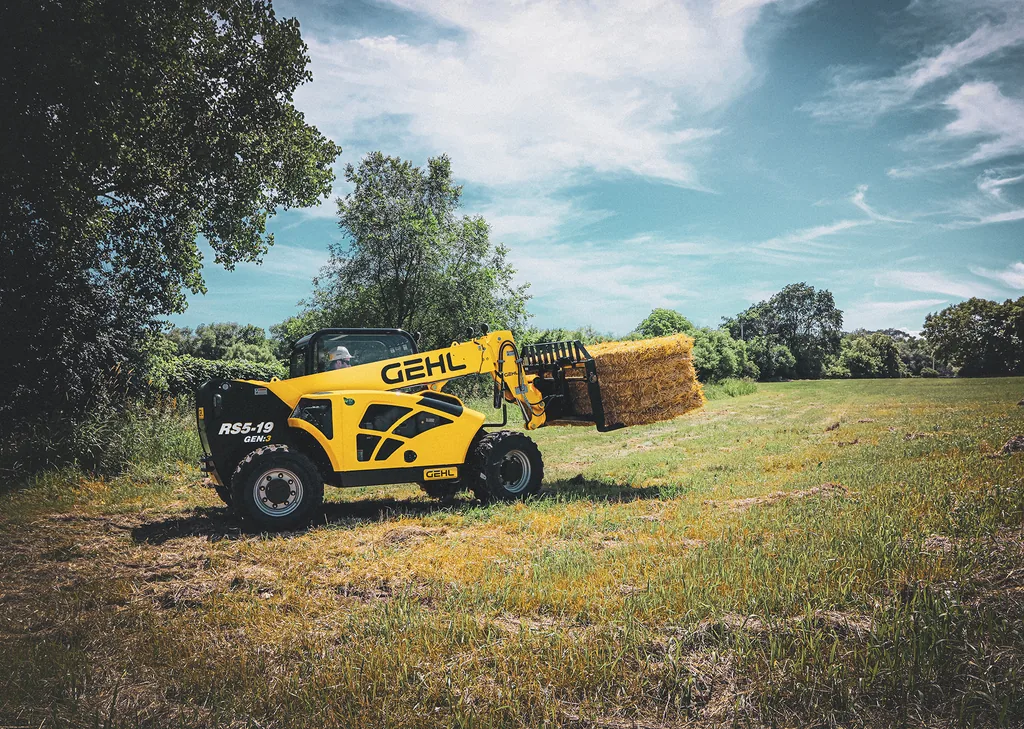

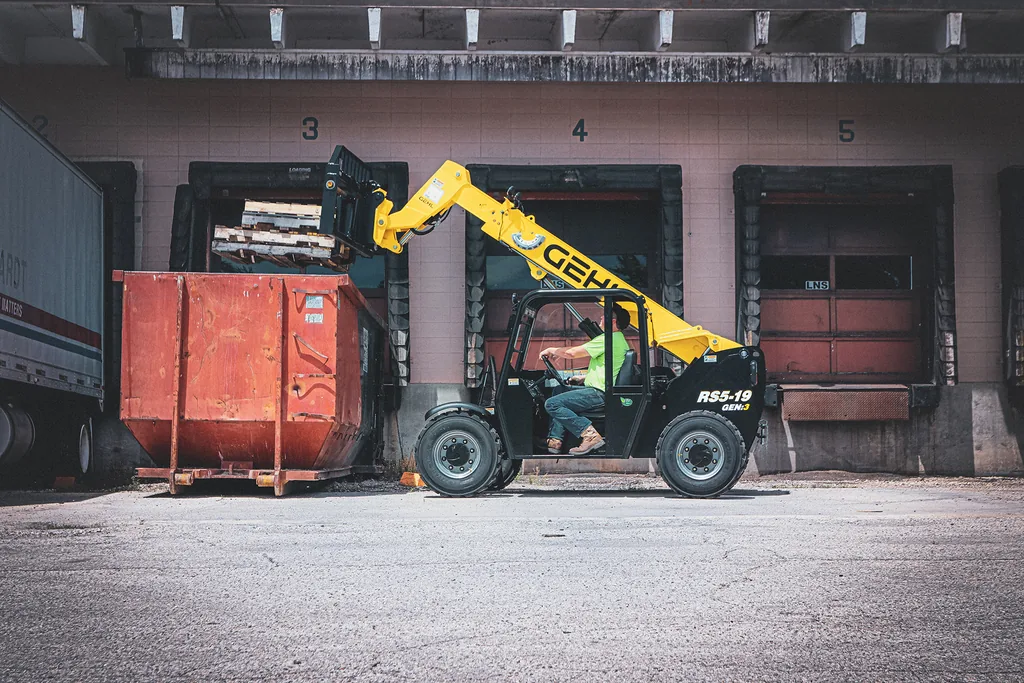

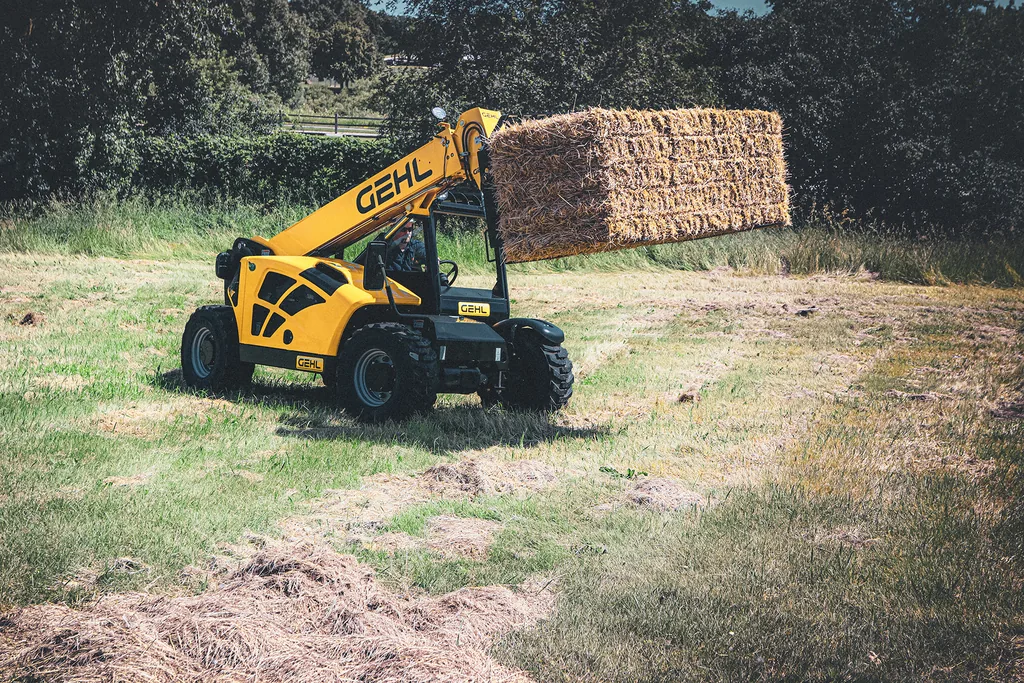

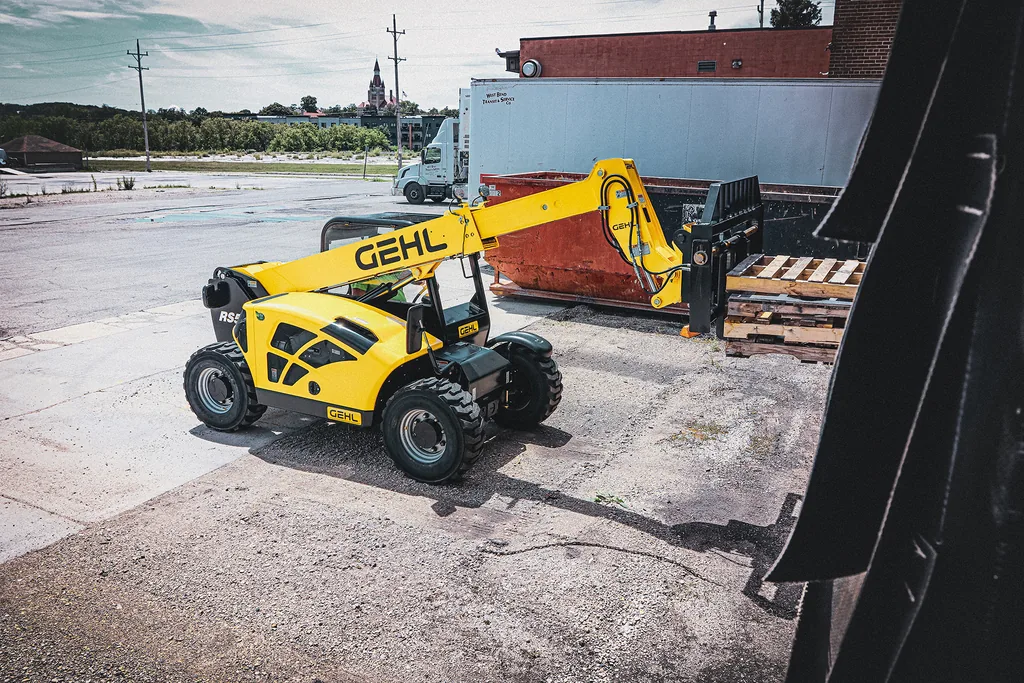

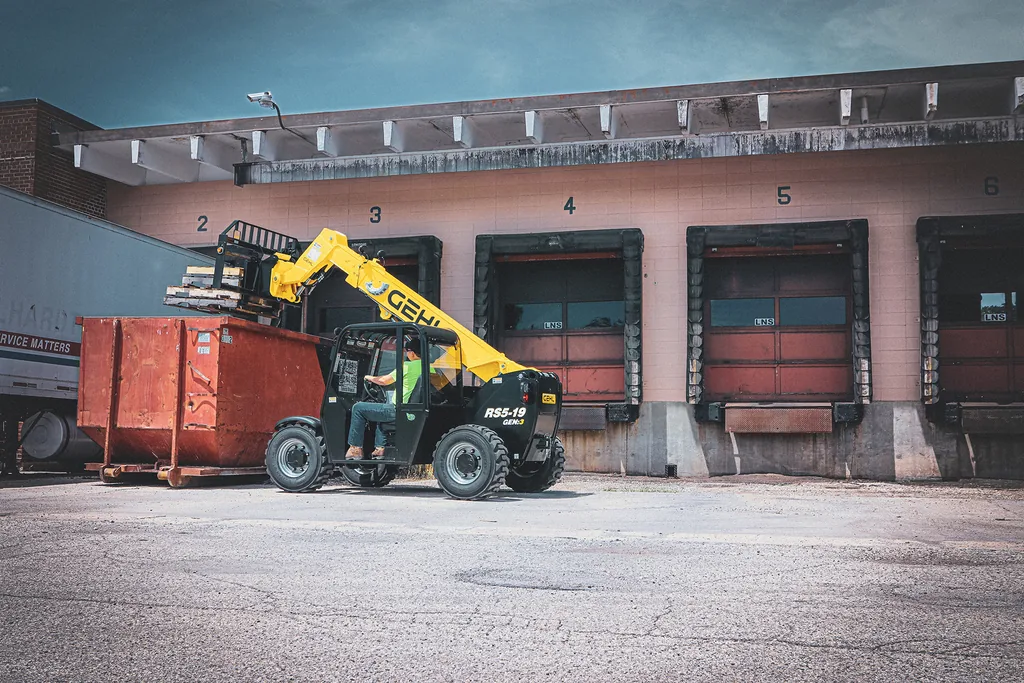

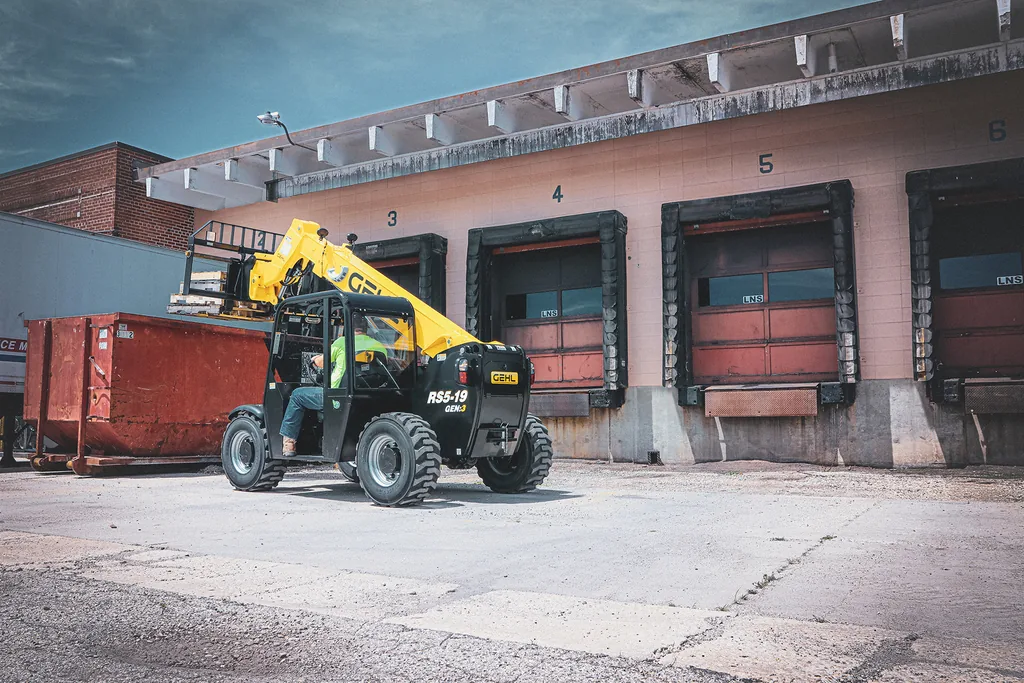

On the job
Gehl / Telehandler
RS5-19 G3
5500
lb
Max Capacity
19 ft 1 in
Max Lift Height
11
ft
Max Outreach
69 Hp
50.10 kW
Engine Power
9760
lb
Operating Weight

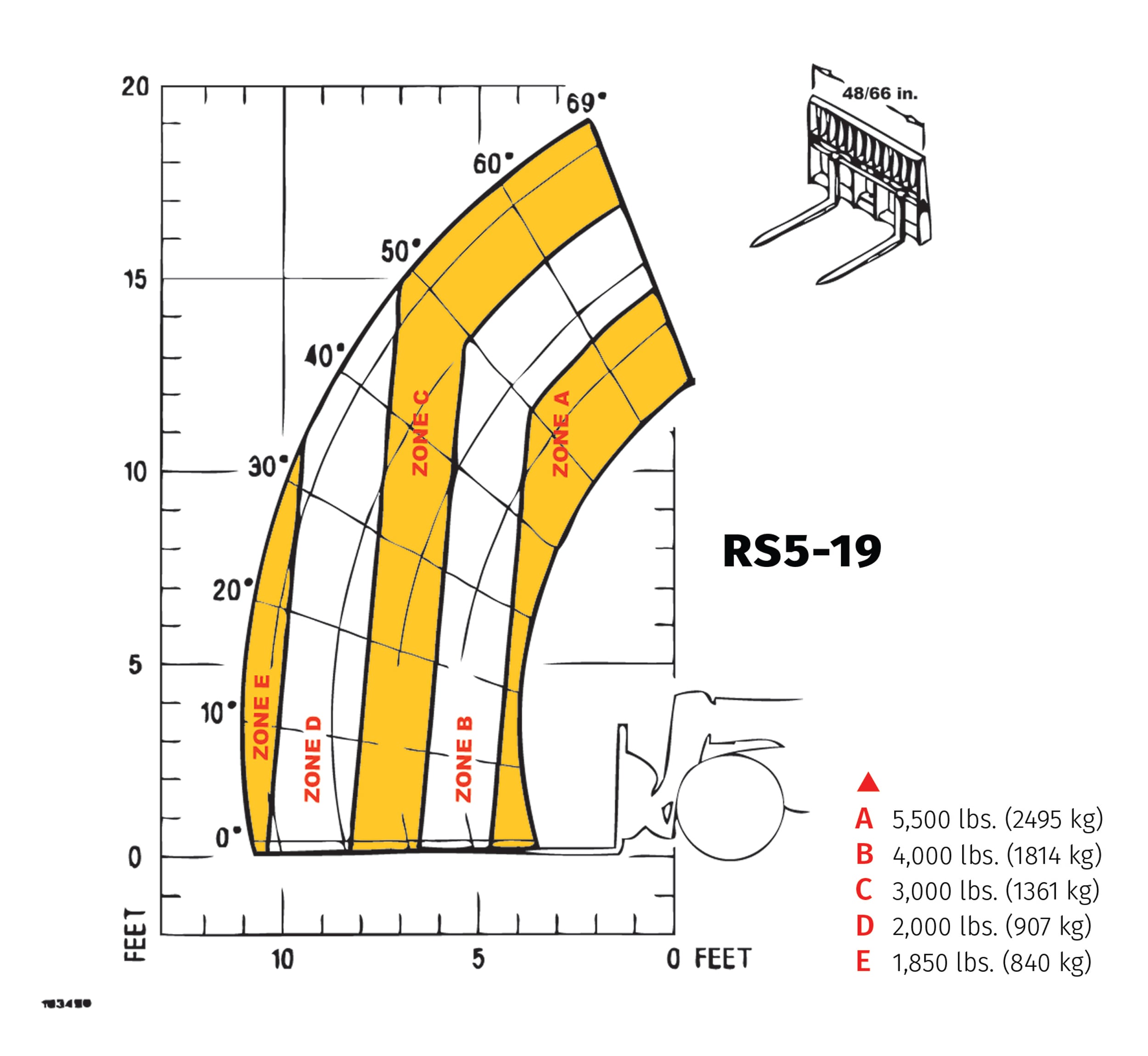

Load Chart & Dimensions
Capacity, reach, and dimensions matter on a real job. Here are the manufacturer diagrams for this machine - tap any chart to view it full size.
Features
Standard Features
- 12 Volt Battery
- 12Volt Power Port
- Back-Up Alarm
- Boom Tip Lift Hook
- Four Wheel Drive
- Multi-Function Display Screen
- Self-Leveling Forks
- Engine Block Heater
- Two-Speed Hydrostatic Drive System
Optional Features
- Enclosed Cab with Heat and A/C
- Foam Filled Tires
- Light Package - LED
- Solid Rubber Tires
- Suspension Seat
- Turf Tires
- Easy Manager
Specifications
- Max. capacity: 5500 lb
- Max. lifting height: 19 ft 1 in
- Maximum outreach: 11 ft
- Length to face of forks: 12 ft 4 in
- Overall width: 5 ft 11 in
- Overall height: 6 ft 4 in
- Wheelbase: 7 ft 6 in
- Ground clearance: 10 in
- Overall cab width: 28 in
- Tilt-up angle: 12 °
- Tilt-down angle: 100 °
- External turning radius: 11 ft
- Unladen weight (with forks): 9760 lb
- Overall weight: 10000 lb
- Standard tires: 12 x 16.5
- Lifting: 8 s
- Lowering: 5 s
- Extension: 7 s
- Retraction: 6 s
- Brand / model: Yanmar 4TNV98C
- Emissions norm: Tier 4 final
- Engine power (Hp/kW): 69 Hp / 50.10 kW
- Max. torque / Engine rotation: 173 ft/lbs @ 1625 rpm
- Transmission type: Hydrostatic
- Number of gears (forward / reverse): 2 / 2
- Max. travel speed: 15 mph
- Parking brake: Hydraulic spring release SAHR
- Service brake: Wet disc brakes
- Axle Manufacturer: Dana
- Hydraulic pump type: Gear pump
- Hydraulic flow / Pressure: 22 US gpm-3350 PSI
- Engine oil: 2 US gal
- Hydraulic oil: 18 US gal
- Fuel: 17 US gal
- Steering wheels (front / rear): 2 / 2
- Drive wheels (front / rear): 2 / 2
- Cab certification: ROPS/FOPS
- Controls: Single Joystick FNR
Video
See it work. Manufacturer footage shows the product range in action - your machine's trim and attachments may differ. Want a closer look in person? Just ask.
Comparing options?
See how the Gehl RS5-19 G3 sizes up against the next machine up and down our lineup, or compare the whole category side by side.
Frequently asked questions
Match the max lift height and the capacity at full reach to your tallest, heaviest placement - capacity drops as the boom extends, so the load chart matters. Tell us the height, distance and weight and we'll spec it.
Yes. We run the current Manitou and Gehl factory finance programs - ask for the full rate ladder when you request a quote (the Q2 2026 program runs through June 30, 2026). Financing is subject to credit approval and we'll walk you through the options.
We do, in house at our shop in Laddonia, MO. You're not shipping a machine across the country for warranty work or parts. Reach our team at (573) 321-1542.
Yes - across central and northeast Missouri, including Kansas City, St. Louis, Marshall, Kirksville, Jefferson City and Hannibal and the surrounding rural areas. Ask about delivery when you request your quote.
Commercial equipment is quote-driven - the right number depends on your configuration, attachments, financing and any current programs. Tell us about the job and we'll put together real pricing, no guessing.
Downloads
Grab the full specs and the product brochure to share or print.
Warranty
Backed by the Gehl factory warranty. We handle warranty service in house at our Laddonia, MO shop - no shipping your machine across the country to get it covered.
Financing
Q2 financing offer: rates from 1.99% through June 30, 2026. Ask about 1.99% for 24 months, then 2.99%/36, 3.99%/48, 4.99%/60, or 5.49%/72 months. Subject to credit approval.
Through Manitou Finance and approved lenders. Rates shown are the current program; your rate and term depend on credit approval.
